Schneider ElectricMoulded Case Circuit Breakers (MCCBs)

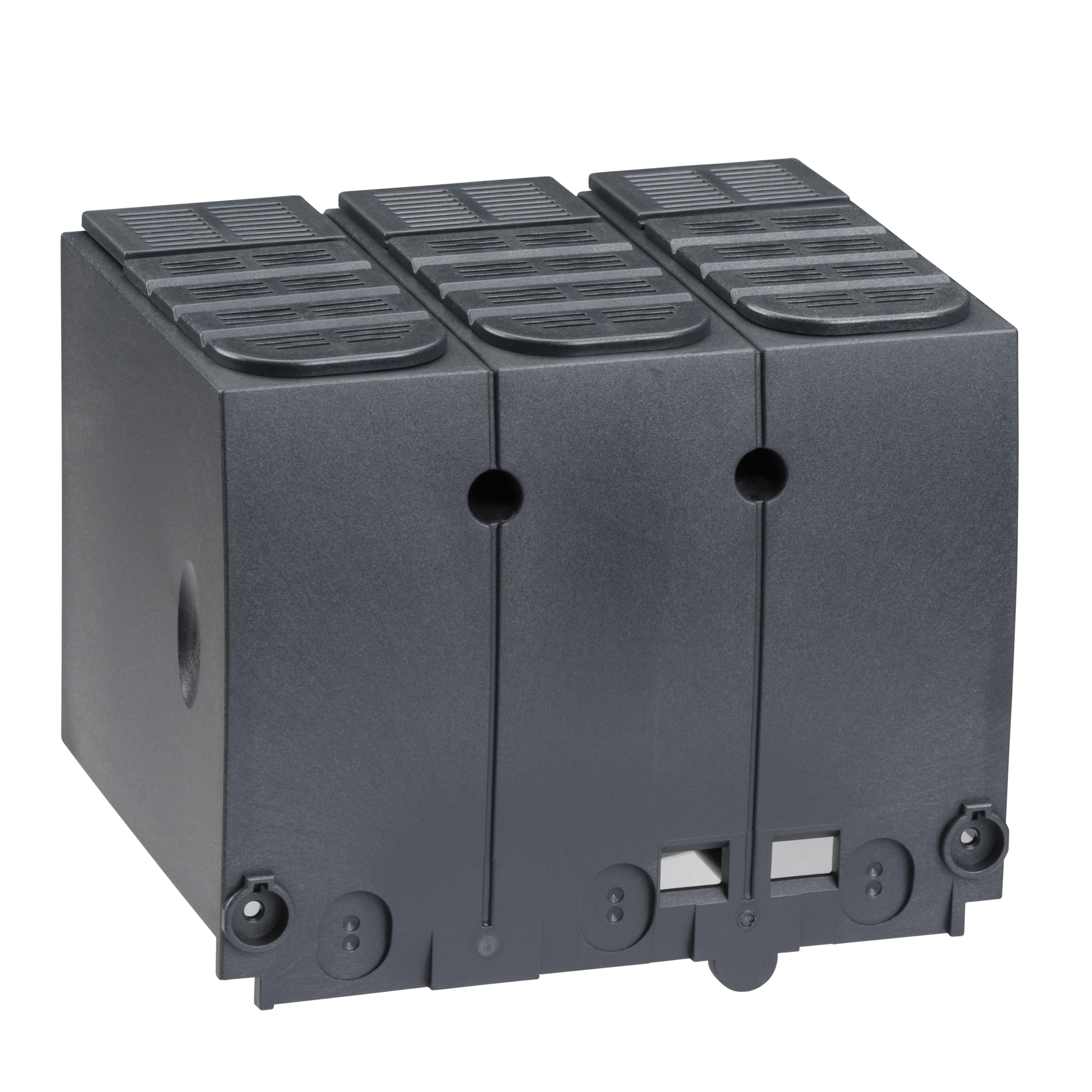

LV429517 – Long terminal shield, ComPact NSX100/160/250, pitch 35 mm, IP40, 3 poles | Schneider Electric
Order code
List R387.00 Your price R263.16
Per unit · volume pricing available on request
excl. VAT R302.63 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Long terminal shield, ComPact NSX100/160/250, pitch 35 mm, IP40, 3 poles — Schneider Electric order code LV429517. 3P; IP40; plug-in mounting.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
View on the Schneider Electric site (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
LV429517 — Long terminal shield, ComPact NSX100/160/250, pitch 35 mm, IP40, 3 poles, a moulded case circuit breaker from the Schneider Electric Compact NSX <630 range. Listed under Moulded Case Circuit Breakers (MCCBs) on the Schneider Electric catalogue at RMS-SE.Africa.
About LV429517
This is an insulation accessory for 3 poles Compact NSX 100/160/250 or EasyPact CVS 100/160/250. This long terminal shield protects against direct contact with power circuit It is used for front connection with cables or insulated bars. It can be mounted upstream and downstream of fixed, plug-in or withdrawable devices. It allows to reach the clearance distance requested by IEC 60947-2 standard. The pitch is 35mm. It provides IP40 degree of protection and IK07 mechanical impact protection.
LV429517 key specifications
Key specifications: 3P; IP40; plug-in mounting.
Availability and replacement
Schneider Electric names ComPacT NSX (new generation) as the successor to the Compact NSX <630 range. Schneider substitution guide: same frame sizes. Ask the sales desk to confirm the exact replacement reference before ordering.
Schneider Electric substitution guide (manufacturer document)
Ordering information for LV429517
- Order code:
LV429517 - Manufacturer: Schneider Electric
- Range: Compact NSX <630
- GTIN / EAN: 3606480019913
- Supplied: each
- Weight: 0.15 kg
- ETIM class: EC002498
- Datasheet: manufacturer datasheet for LV429517
About the Compact NSX <630 range
Compact NSX <630 is a Schneider Electric range with 597 references listed on RMS-SE.Africa, from 2.5 A to 630 A. Schneider Electric has announced ComPacT NSX (new generation) as its successor.
LV429517 — frequently asked questions
How many poles does LV429517 have?
LV429517 is a 3P device.
Where is the datasheet for LV429517?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Schneider Electric publishes them.
Is LV429517 a genuine Schneider Electric product?
Yes. LV429517 is supplied through the manufacturer’s authorised channel with the standard Schneider Electric warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | LV429517 – long terminal shield, ComPact NSX100/160/250, pitch 35 mm, IP40, 3 poles Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by Compact NSX <630 |
| GTIN / EAN | 3606480019913 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC002498 |
Electrical ratings
| Number of poles | Filter products by 3P |
|---|
Mechanical & mounting
| Mounting | Filter products by plug-in |
|---|
Environment & protection
| Degree of protection (IP) | Filter products by IP40 |
|---|
Documents
| Datasheet | View on the Schneider Electric site |
|---|
Other specifications
| Related Categories | Filter products by Metering, Filter products by Power Capacitors For PF Correction |
|---|---|
| SKU/Code/Partnumber | LV429517 |
| Iternational GTIN | 3606480019913 |
