Schneider ElectricMoulded Case Circuit Breakers (MCCBs)

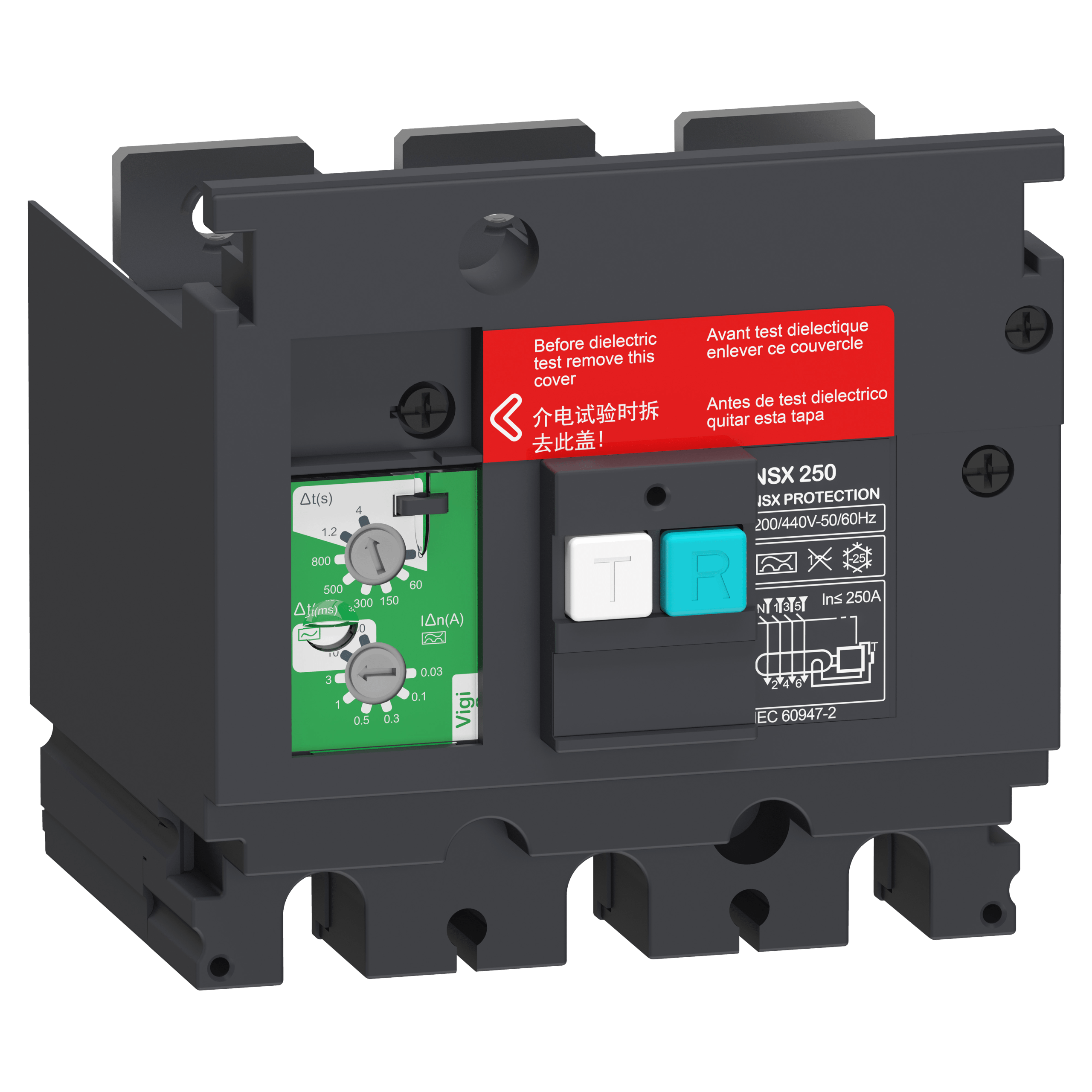

LV429492 – Earth-leakage VigiPacT add-on protection module, ComPacT NSX 250, 200 VAC to 440 VAC, 30 mA to 30 A, 3 poles Schneider Electric
Order code
Original price was: R9 339.00.R6 350.52Current price is: R6 350.52.
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Earth-leakage VigiPacT add-on protection module, ComPacT NSX 250, 200 VAC to 440 VAC, 30 mA to 30 A, 3 poles — Schneider Electric order code LV429492. Rated current 30 A; 3P; rated voltage 200 V AC.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
LV429492 — Earth-leakage VigiPacT add-on protection module, ComPacT NSX 250, 200 VAC to 440 VAC, 30 mA to 30 A, 3 poles, a moulded case circuit breaker from the Schneider Electric Compact NSX <630 range.
This is a Vigi add-on module for ComPact NSX 250 that provides an earth-leakage protection. It is used for 3 poles circuit breakers. The operational rated voltage is between 200 and 440 VAC 50/60 Hz. The earth-leakage sensitivity is adjustable from 30 mA to 30 A. It is installed directly on the device terminals and directly actuates the trip unit in case of earth-leakage default. This Vigi add-on module is self-powered internally by the distribution-system voltage, even is supplied by only 2 phases. It is compliant with IEC 60947-2 standard, annex B.
Key specifications: rated current 30 A; 3P; rated voltage 200 V AC.
Ordering information
- Order code:
LV429492 - Manufacturer: Schneider Electric
- Range: Compact NSX <630
- GTIN / EAN: 3606481298584
- Supplied: each
- Weight: 1.098 kg
- ETIM class: EC001021
- Datasheet: manufacturer datasheet for LV429492
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
Electrical ratings
| Number of poles | Filter products by 3P |
|---|---|
| Rated current (Iu) | Filter products by 30 A |
| Rated voltage (Ue) | Filter products by 200 V AC |
| Operating Voltage | Filter products by 200 VAC |
Other specifications
| Related Categories | Filter products by Metering, Filter products by Power Capacitors For PF Correction |
|---|---|
| SKU/Code/Partnumber | Filter products by LV429492 |
| Iternational GTIN | Filter products by 3606481298584 |
