Schneider ElectricMoulded Case Circuit Breakers (MCCBs)
LV429406 – MN undervoltage release, ComPacT NSX, rated voltage 110/130 VAC 50/60 Hz, screwless spring terminal connections Schneider Electric
Order code
Original price was: R2 720.00.R1 849.60Current price is: R1 849.60.
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
MN undervoltage release, ComPacT NSX, rated voltage 110/130 VAC 50/60 Hz, screwless spring terminal connections — Schneider Electric order code LV429406. Rated voltage 130 V AC; 50 / 60 Hz.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview

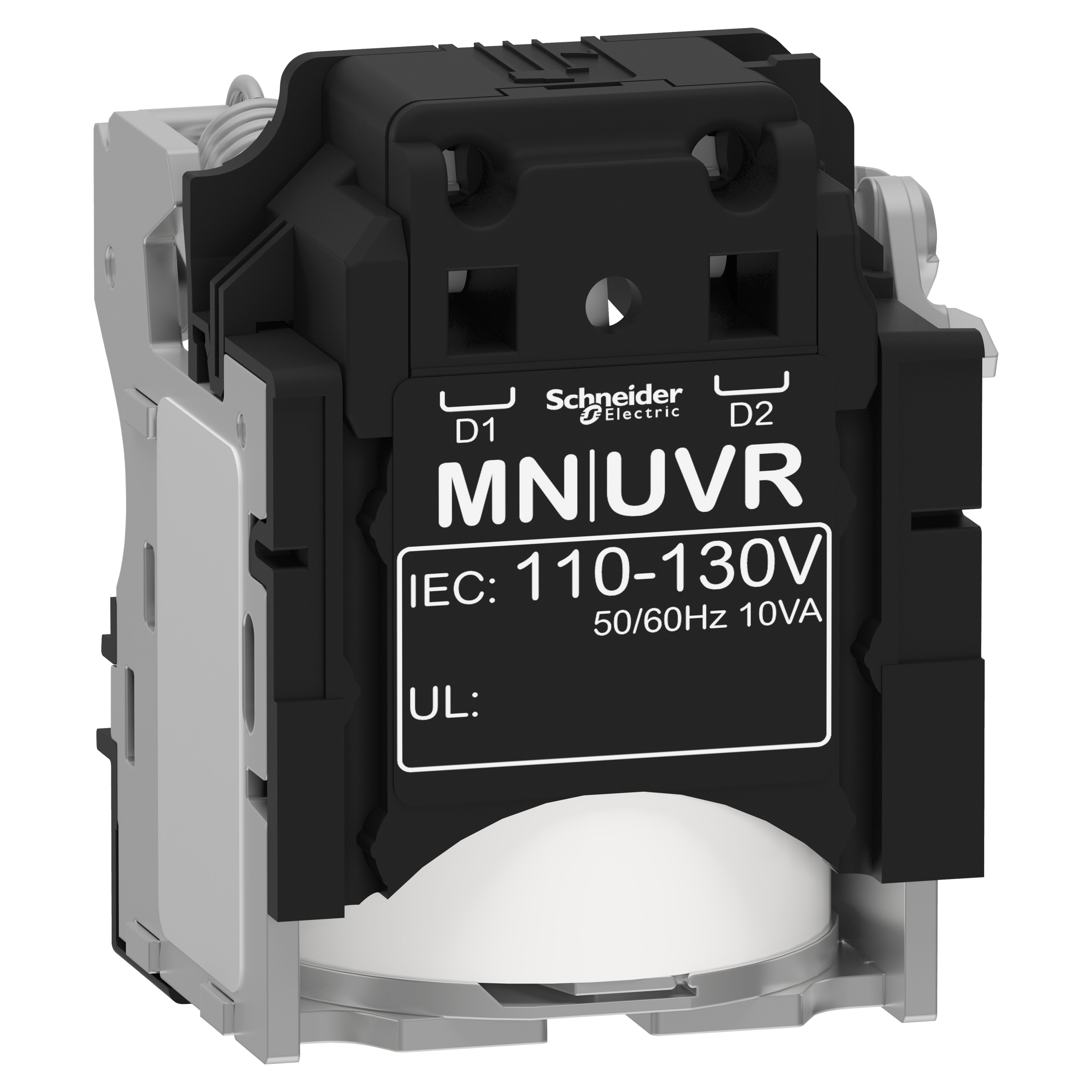

LV429406 — MN undervoltage release, ComPacT NSX, rated voltage 110/130 VAC 50/60 Hz, screwless spring terminal connections, a moulded case circuit breaker from the Schneider Electric Compact NSX <630 range.
This is a MN undervoltage release for Compact NSX, PowerPact Multistandard and EasyPact CVS circuit breakers. Its rated voltage is 110 to 130 VAC 50/60 Hz. It is an auxiliary used for emergency off or remote opening applications. This auxiliary opens the circuit breaker when the control voltage drops to a value below 35% of its rated voltage Un. It complies with IEC 60947-2 standard. This undervoltage release is a UL Listed/CSA Certified circuit breaker accessory. Compact NSX, PowerPact Multistandard and EasyPact CVS can be equipped with either 1 MX or 1 MN auxiliary.
Key specifications: rated voltage 130 V AC; 50 / 60 Hz.
Ordering information
- Order code:
LV429406 - Manufacturer: Schneider Electric
- Range: Compact NSX <630
- GTIN / EAN: 3606480018954
- Supplied: each
- Weight: 0.13 kg
- ETIM class: EC001022
- Datasheet: manufacturer datasheet for LV429406
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
Electrical ratings
| Rated voltage (Ue) | Filter products by 130 V AC |
|---|---|
| Operating Voltage | Filter products by 130 VAC |
| Rated Frequency | Filter products by 50 / 60 Hz |
Other specifications
| Related Categories | Filter products by Metering, Filter products by Power Capacitors For PF Correction |
|---|---|
| SKU/Code/Partnumber | Filter products by LV429406 |
| Iternational GTIN | Filter products by 3606480018954 |
