Schneider ElectricMoulded Case Circuit Breakers (MCCBs)

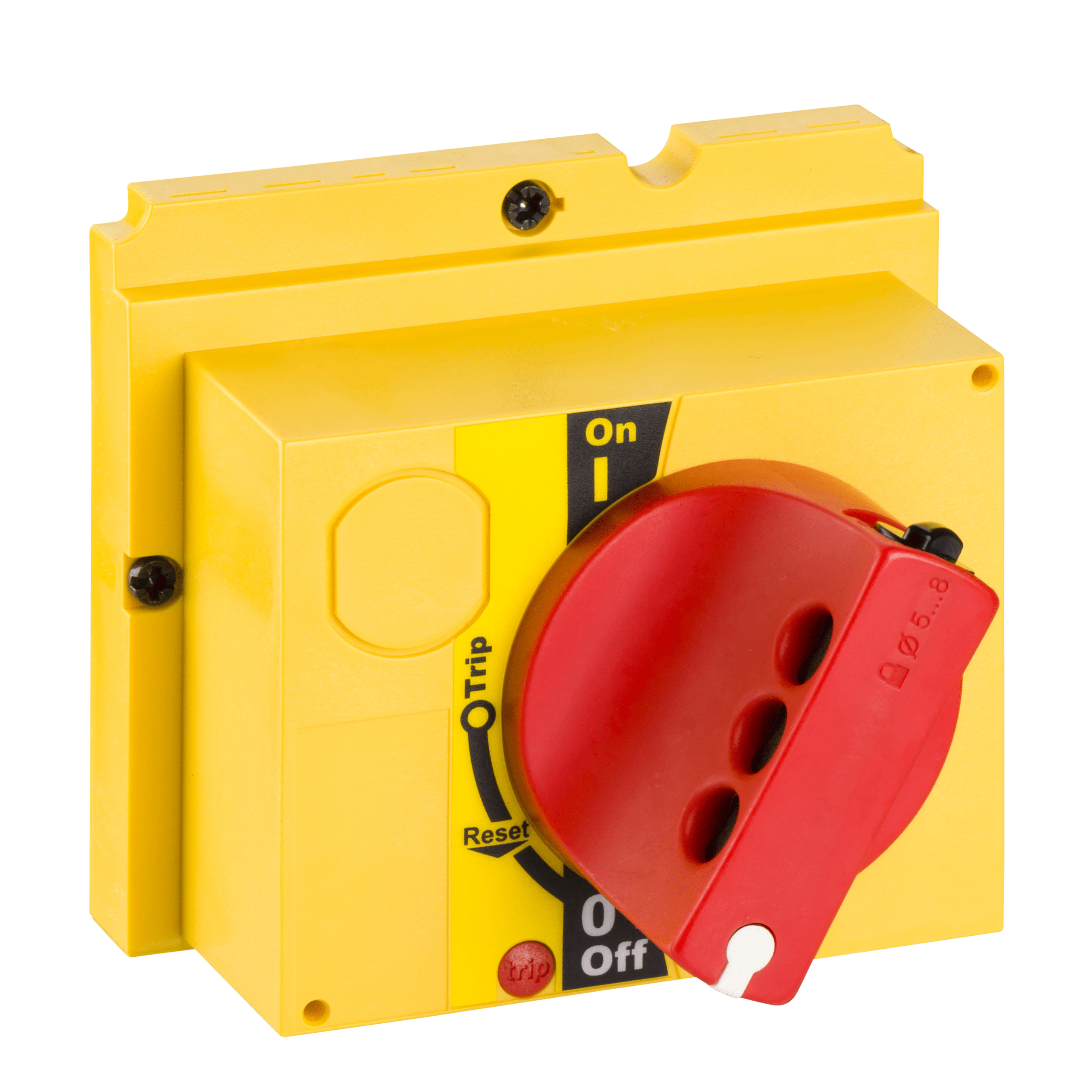

LV429339 – Direct rotary handle, ComPact NSX 100/160/250, red handle on yellow front, IP40 | Schneider Electric
Order code
List R2 826.80 Your price R1 922.22
Per unit · volume pricing available on request
excl. VAT R2 210.55 incl.
Discontinued — remaining stock confirmed on quote
Direct rotary handle, ComPact NSX 100/160/250, red handle on yellow front, IP40 — Schneider Electric order code LV429339. IP40.
Discontinued — remaining stock confirmed on quote
View on the Schneider Electric site (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
LV429339 — Direct rotary handle, ComPact NSX 100/160/250, red handle on yellow front, IP40, a moulded case circuit breaker from the Schneider Electric Compact NSX <630 range. Listed under Moulded Case Circuit Breakers (MCCBs) on the Schneider Electric catalogue at RMS-SE.Africa.
About LV429339
It is a direct rotary handle for Compact NSX 100/160/250 and PowerPact Multistandard H/J frames devices. It is suitable for isolation and it is used for machine tool control. It maintains the access to trip unit settings and to the push to trip button. It is equipped with a red handle on yellow front. There is an indication of the three device positions O (OFF), I (ON) and tripped. The degrees of protection are IP40 and IK07. This rotary handle is padlockable in the OFF position using 1 to 3 padlocks not supplied (shackle diameter 5 to 8mm). As an option, it is possible to install a Ronis or Profalux keylock on the base of the handle to obtain the same function as with a padlock.
LV429339 key specifications
Key specifications: IP40.
Availability and replacement
Availability notice: Schneider Electric has announced the end of commercialisation of this reference (announced 2022/09/06, last orders 2023/06/30). Stock may still be available; ask us to confirm, or to quote the current replacement.
Schneider Electric names ComPacT NSX (new generation) as the successor to the Compact NSX <630 range. Schneider substitution guide: same frame sizes. Ask the sales desk to confirm the exact replacement reference before ordering.
Schneider Electric substitution guide (manufacturer document)
Ordering information for LV429339
- Order code:
LV429339 - Manufacturer: Schneider Electric
- Range: Compact NSX <630
- GTIN / EAN: 3606480020308
- Supplied: each
- Weight: 0.26 kg
- ETIM class: EC000229
- Datasheet: manufacturer datasheet for LV429339
About the Compact NSX <630 range
Compact NSX <630 is a Schneider Electric range with 597 references listed on RMS-SE.Africa, from 2.5 A to 630 A. Schneider Electric has announced ComPacT NSX (new generation) as its successor.
LV429339 — frequently asked questions
Is LV429339 discontinued, and what replaces it?
Yes. Schneider Electric has announced the end of commercialisation of LV429339 (last orders 2023/06/30). The named successor is ComPacT NSX (new generation); the sales desk confirms the exact replacement reference and remaining stock.
Where is the datasheet for LV429339?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Schneider Electric publishes them.
Is LV429339 a genuine Schneider Electric product?
Yes. LV429339 is supplied through the manufacturer’s authorised channel with the standard Schneider Electric warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | LV429339 – direct rotary handle, ComPact NSX 100/160/250, red handle on yellow front, IP40 Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by Compact NSX <630 |
| GTIN / EAN | 3606480020308 |
| Lifecycle status | Filter products by Discontinued |
| ETIM class | Filter products by EC000229 |
Environment & protection
| Degree of protection (IP) | Filter products by IP40 |
|---|
Documents
| Datasheet | View on the Schneider Electric site |
|---|
Other specifications
| Discontinued on | Filter products by 2023-11-20 |
|---|---|
| Replaced by | Filter products by LV429339T |
| Related Categories | Filter products by Metering, Filter products by Power Capacitors For PF Correction |
| SKU/Code/Partnumber | LV429339 |
| Iternational GTIN | 3606480020308 |
