Schneider ElectricMoulded Case Circuit Breakers (MCCBs)

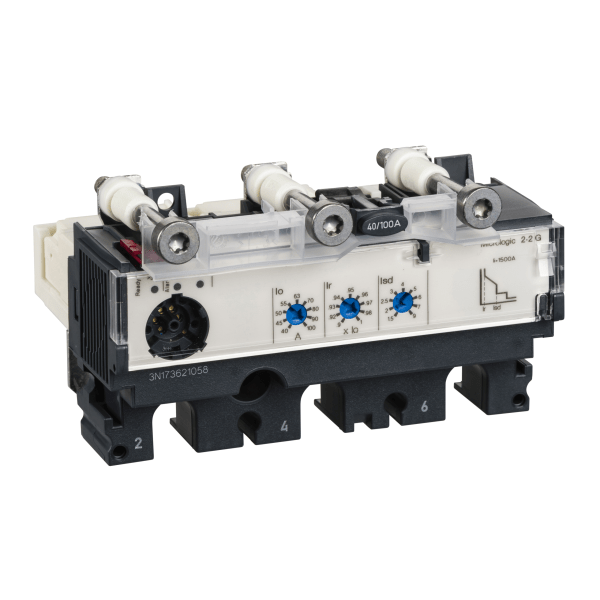

LV429075 – Trip unit MicroLogic 2.2 G for ComPact NSX 100/160/250 circuit breakers, electronic, rating 100 A, 3 poles 3d | Schneider Electric
Order code
List R3 473.17 Your price R2 361.76
Per unit · volume pricing available on request
excl. VAT R2 716.02 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Trip unit MicroLogic 2.2 G for ComPact NSX 100/160/250 circuit breakers, electronic, rating 100 A, 3 poles 3d — Schneider Electric order code LV429075. Rated current 100 A; 3P 3d; fixed mounting.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
View on the Schneider Electric site (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
LV429075 — Trip unit MicroLogic 2.2 G for ComPact NSX 100/160/250 circuit breakers, electronic, rating 100 A, 3 poles 3d from the Schneider Electric Compact NSX <630 range. Listed under Moulded Case Circuit Breakers (MCCBs) on the Schneider Electric catalogue at RMS-SE.Africa.
About LV429075
This Micrologic 2.2 G is a 3 poles 3d electronic trip unit used on Compact NSX 100/160/250 circuit breakers. This 100A rating electronic trip unit is an optimum choice for generator protection applications. It embeds an adjustable long time protection against overloads. It provides also an adjustable short-time protection and a fixed instantaneous protection against short-circuits. Micrologic 2.2 G indicates overloads with Alarm LEDs. The green Ready LED flashes if the circuit breaker is ready to trip. This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and Compact NSX basic frame.
LV429075 key specifications
Key specifications: rated current 100 A; 3P 3d; fixed mounting.
Availability and replacement
Availability notice: Schneider Electric has announced the end of commercialisation of this reference (announced 2021/12/15, last orders 2023/12/31). Stock may still be available; ask us to confirm, or to quote the current replacement.
Schneider Electric names ComPacT NSX (new generation) as the successor to the Compact NSX <630 range. Schneider substitution guide: same frame sizes. Ask the sales desk to confirm the exact replacement reference before ordering.
Schneider Electric substitution guide (manufacturer document)
Ordering information for LV429075
- Order code:
LV429075 - Manufacturer: Schneider Electric
- Range: Compact NSX <630
- GTIN / EAN: 3606480017322
- Supplied: each
- Weight: 0.438 kg
- ETIM class: EC000617
- Datasheet: manufacturer datasheet for LV429075
About the Compact NSX <630 range
Compact NSX <630 is a Schneider Electric range with 597 references listed on RMS-SE.Africa, from 2.5 A to 630 A. Schneider Electric has announced ComPacT NSX (new generation) as its successor.
LV429075 — frequently asked questions
What is the rated current of LV429075?
LV429075 is rated 100 A.
How many poles does LV429075 have?
LV429075 is a 3P 3d device.
Is LV429075 discontinued, and what replaces it?
Yes. Schneider Electric has announced the end of commercialisation of LV429075 (last orders 2023/12/31). The named successor is ComPacT NSX (new generation); the sales desk confirms the exact replacement reference and remaining stock.
Where is the datasheet for LV429075?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Schneider Electric publishes them.
Is LV429075 a genuine Schneider Electric product?
Yes. LV429075 is supplied through the manufacturer’s authorised channel with the standard Schneider Electric warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | LV429075 – trip unit MicroLogic 2.2 G for ComPact NSX 100/160/250 circuit breakers, electronic, rating 100 A, 3 poles 3d Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by Compact NSX <630 |
| GTIN / EAN | 3606480017322 |
| Lifecycle status | Filter products by End of commercialisation announced |
| ETIM class | Filter products by EC000617 |
Electrical ratings
| Number of poles | Filter products by 3P 3d |
|---|---|
| Rated current (Iu) | Filter products by 100 A |
Mechanical & mounting
| Mounting | Filter products by fixed |
|---|
Documents
| Datasheet | View on the Schneider Electric site |
|---|
Other specifications
| Trip unit | Filter products by MicroLogic 2.2 |
|---|---|
| Trip unit rating | Filter products by 100 A |
| Related Categories | Filter products by Metering, Filter products by Power Capacitors For PF Correction |
| SKU/Code/Partnumber | Search products for LV429075 |
| Iternational GTIN | 3606480017322 |
