Schneider ElectricMonitoring Relays
LT3SM00MW – PTC probe relay TeSys – LT3 with manual reset – 24…230 V – 2 OC | Schneider Electric
Order code
List R10 478.54 Your price R7 125.41
Per unit · volume pricing available on request
excl. VAT R8 194.22 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
PTC probe relay TeSys – LT3 with manual reset – 24…230 V – 2 OC — Schneider Electric order code LT3SM00MW. Rated voltage 230 V; DIN rail mounting.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
View on the Schneider Electric site (opens in a new tab)
Select a variant in this series
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
LT3SM00MW — PTC probe relay TeSys – LT3 with manual reset – 24…230 V – 2 OC from the Schneider Electric TeSys LT3 range. Listed under Monitoring Relays on the Schneider Electric catalogue at RMS-SE.Africa.
About LT3SM00MW

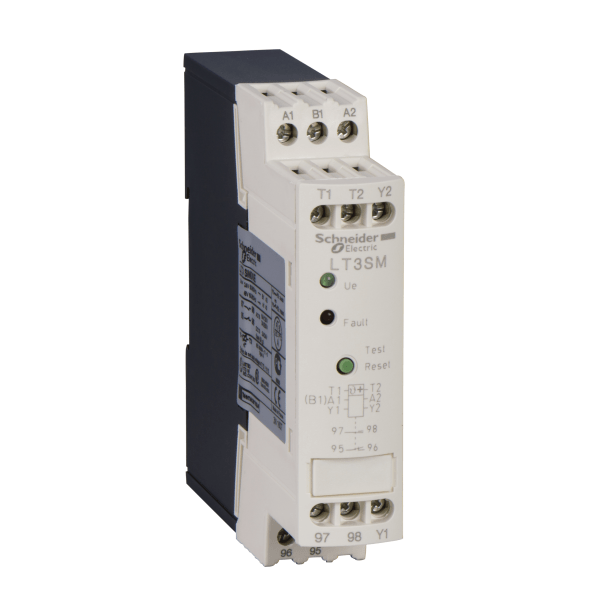

TeSys LT3 thermistor protection unit for use with PTC probes, with manual reset and fault indicator on front, multi voltage supply 24-230V DC/AC 50/60Hz. To be used with a combination of PTC probes impedance lower than 1500 Ohm at 25°C, the trip impedance zone is 2700-3100 Ohm, the manual reset is possible only if impedance has decreased enough to be below 1500-1650 Ohm. It provides 2 auxiliary contacts 2C/O for fault signaling, 1 pushbutton on front face for a local manual reset, and 1 logic input for connection of a remote reset button. DIN rail mounting, connections by cage terminals. PTC thermistor probes DA1TT, DA1TS available (to be ordered separately). Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).
LT3SM00MW key specifications
Key specifications: rated voltage 230 V; DIN rail mounting.
Availability and replacement
Availability notice: Schneider Electric has announced the end of commercialisation of this reference (announced 2023/06/14, last orders 2023/08/31). Stock may still be available; ask us to confirm, or to quote the current replacement.
Within the TeSys LT3 range, Schneider Electric lists Harmony Control RM35TM thermistor relays as the current equivalent for superseded references. Width 35 mm (RM35TM) vs 22.5 mm (LT3S). Ask the sales desk to confirm the exact replacement reference before ordering.
Schneider Electric substitution guide (manufacturer document)
Ordering information for LT3SM00MW
- Order code:
LT3SM00MW - Manufacturer: Schneider Electric (formerly Telemecanique)
- Range: TeSys LT3
- GTIN / EAN: 3389110700756
- Supplied: each
- Weight: 0.156 kg
- ETIM class: EC002568
- Datasheet: manufacturer datasheet for LT3SM00MW
About the TeSys LT3 range
TeSys LT3 is a Schneider Electric range with 11 references listed on RMS-SE.Africa.
LT3SM00MW — frequently asked questions
Is LT3SM00MW discontinued, and what replaces it?
Yes. Schneider Electric has announced the end of commercialisation of LT3SM00MW (last orders 2023/08/31). The named successor is Harmony Control RM35TM thermistor relays; the sales desk confirms the exact replacement reference and remaining stock.
Where is the datasheet for LT3SM00MW?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Schneider Electric publishes them.
Is LT3SM00MW a genuine Schneider Electric product?
Yes. LT3SM00MW is supplied through the manufacturer’s authorised channel with the standard Schneider Electric warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | Filter products by LT3SM00MW – PTC probe relay TeSys – LT3 with manual reset – 24…230 V – 2 OC Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by TeSys LT3 |
| GTIN / EAN | 3389110700756 |
| Lifecycle status | Filter products by End of commercialisation announced |
| ETIM class | Filter products by EC002568 |
Electrical ratings
| Rated voltage (Ue) | Filter products by 230 V |
|---|
Mechanical & mounting
| Mounting | Filter products by DIN rail |
|---|
Documents
| Datasheet | View on the Schneider Electric site |
|---|
Other specifications
| Related Categories | Filter products by Plug – in Relays, Filter products by Timers & Control Relays |
|---|---|
| SKU/Code/Partnumber | Search products for LT3SM00MW |
| Iternational GTIN | 3389110700756 |
More in the TeSys LT3 range
8 itemsSame series, same mounting and the same documentation set.
More in the TeSys LT3 range
8 items- LT3SM00EDPTC probe relay TeSys – LT3 with manual reset – 24 V – 1 NO + 1 NCList R10 478.54 Your price R7 125.41View product
- LT3SM00MPTC probe relay TeSys – LT3 with manual reset – 115 V – 1 NO + 1 NCList R10 478.54 Your price R7 125.41View product
- LT3SM00VPTC probe relay TeSys – LT3 with manual reset – 400V – 1 NO + 1 NCList R10 478.54 Your price R7 125.41View product
LT3SE00FPTC probe relay TeSys – LT3 with automatic reset – 115 V – 1 NCList R4 139.80 Your price R2 815.06View product- LT3SE00MPTC probe relay TeSys – LT3 with automatic reset – 230 V – 1 NCList R4 139.80 Your price R2 815.06View product
- LT3SM00EPTC probe relay TeSys – LT3 with manual reset – 24 V – 1 NO + 1 NCList R10 478.54 Your price R7 125.41View product
LT3SA00MPTC probe relay TeSys – LT3 with automatic reset – 115 V – 1 NO + 1 NCList R4 991.75 Your price R3 394.39View product- LT3SA00MWPTC probe relay TeSys – LT3 with automatic reset – 24…230 V – 2 OCList R5 873.69 Your price R3 994.11View product
Similar items
2 items
Similar items
2 items
More in Monitoring Relays
8 items
More in Monitoring Relays
8 items
RM35JA32MTHarmony, Modular 1-phase current control relay, 8 A, 2 CO, 150 mA…15 A, 24…240 V AC/DCList R4 182.18 Your price R2 843.88View product
RM35JA32MRHarmony, Modular 1-phase current control relay, 5 A, 2 CO, 0.15…15 A,, 24…240 V AC/DCList R3 193.00 Your price R2 171.24View product
RM22UB34Harmony, Modular 1-phase voltage control relay, 8 A, 2 CO, 80…300 V AC/DC, 110…240 V AC/DCList R1 442.00 Your price R980.56View product
RM22UA33MTHarmony, Modular 1-phase voltage control relay, 8 A, 2 CO, 15…500 V AC, 380…415 V ACList R1 892.00 Your price R1 286.56View product
RM22UA33MRHarmony, Modular 1-phase voltage control relay, 8 A, 2 CO, 15…500 V AC/DC, 24…240 V AC/DCList R1 837.00 Your price R1 249.16View product
RM22UA32MRHarmony, Modular 1-phase voltage control relay, 8 A, 2 CO, 1…100 V AC/DC, 24…240 V AC/DCList R2 382.41 Your price R1 620.04View product
RM22UA31MRHarmony, Modular 1-phase voltage control relay, 8 A, 2 CO, 0.05…5 V AC/DC, 24…240 V AC/DCList R2 489.13 Your price R1 692.61View product
RM22UA23MRHarmony, Modular 1-phase overvoltage control relay, 8 A, 2 CO, 15…500 V AC/DC measurement, 24…240 V AC/DCList R1 919.00 Your price R1 304.92View product
Alternatives on our other RMS storefronts
RMS supplies each manufacturer range from its own storefront. These links open a different RMS site in a new tab.
Quick answers
What is LT3SM00MW?
LT3SM00MW is the order code for PTC probe relay TeSys – LT3 with manual reset – 24…230 V – 2 OC. It belongs to our Monitoring Relays range. RMS-SE.Africa supplies it as genuine Schneider Electric product, sourced through the manufacturer's distribution channel.
What voltage is LT3SM00MW rated for?
Schneider Electric rates it for 230 V.
Is it available?
It is listed as in stock. Availability is re-confirmed on every order before any payment is taken, so what you order is what actually ships.
How do I get a formal quotation?
Use "Add to quote" and submit the quote basket. The RMS team prices every line, confirms stock, and emails you a formal quotation with written lead times — and you can accept it online to turn it into an order.
Do I pay when I order?
No. Checkout submits the order without payment; we confirm stock for every line first, then email you a secure payment link for the order.
