Schneider ElectricMini Contactors
LP1SK0600BD – TeSys SK – mini contactor – 2P (2 NO) – AC-1 – 690 V 12 A – 24 V DC coil | Schneider Electric
Order code
List R1 905.00 Your price R1 295.40
Per unit · volume pricing available on request
excl. VAT R1 489.71 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
TeSys SK – mini contactor – 2P (2 NO) – AC-1 – 690 V 12 A – 24 V DC coil — Schneider Electric order code LP1SK0600BD. Rated current 12 A; 2P; rated voltage 690 V; 24 V DC coil.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
View on the Schneider Electric site (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
LP1SK0600BD — TeSys SK – mini contactor – 2P (2 NO) – AC-1 – 690 V 12 A – 24 V DC coil by Schneider Electric. Listed under Mini Contactors on the Schneider Electric catalogue at RMS-SE.Africa.
About LP1SK0600BD

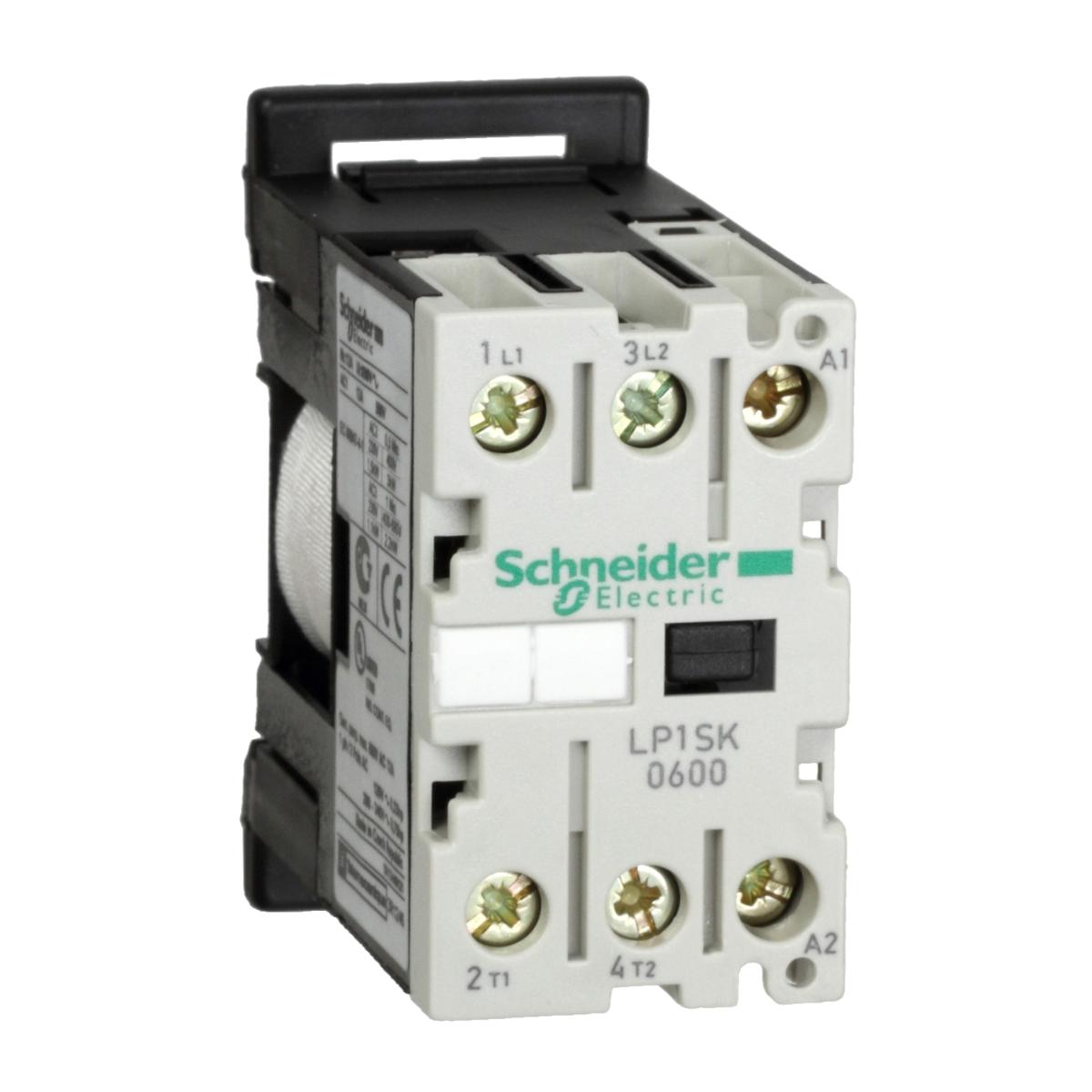

TeSys SK mini-contactor, 2 poles (2NO), for non inductive load applications up to 12A/690V AC-1, and for 1-phase motor control applications up to 6A/690V AC-3 (for 3-phase motors an add-on contact block LA1SK must be mounted on contactor). It provides a 24V DC control circuit with no inrush consumption, connection by screw clamp terminals. For operating rates until 1200 cycles/hour and ambient temperature -20/+50°C, it procures high reliability and durability. Compact (27mm width), for clipping on a 35mm DIN rail. Add-on contact blocks LA1SK (power pole, instantaneous auxiliary contacts) and suppressor modules LA4SK available (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium product (RoHS/REACh).
LP1SK0600BD key specifications
Key specifications: rated current 12 A; 2P; rated voltage 690 V; 24 V DC coil; DIN rail mounting.
Ordering information for LP1SK0600BD
- Order code:
LP1SK0600BD - Manufacturer: Schneider Electric (formerly Telemecanique)
- Range: TeSys SK
- GTIN / EAN: 3389110563931
- Supplied: each
- Weight: 0.122 kg
- ETIM class: EC000066
- Datasheet: manufacturer datasheet for LP1SK0600BD
About the TeSys SK range
TeSys SK is a Schneider Electric range with 5 references listed on RMS-SE.Africa, from 5 A to 12 A. Coil voltages in the range: 230 V AC, 24 V DC. It spans Contactors, Mini Contactors.
LP1SK0600BD — frequently asked questions
What is the rated current of LP1SK0600BD?
LP1SK0600BD is rated 12 A.
What coil or control voltage does LP1SK0600BD use?
LP1SK0600BD is supplied with a 24 V DC coil. Other coil voltages in the range appear under “Ordering options” above where the catalogue lists them.
How many poles does LP1SK0600BD have?
LP1SK0600BD is a 2P device.
Where is the datasheet for LP1SK0600BD?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Schneider Electric publishes them.
Is LP1SK0600BD a genuine Schneider Electric product?
Yes. LP1SK0600BD is supplied through the manufacturer’s authorised channel with the standard Schneider Electric warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | LP1SK0600BD – TeSys SK – mini contactor – 2P (2 NO) – AC-1 – 690 V 12 A – 24 V DC coil Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by TeSys SK |
| GTIN / EAN | 3389110563931 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC000066 |
Electrical ratings
| Number of poles | Filter products by 2P |
|---|---|
| Rated current (Iu) | Filter products by 12 A |
| Rated voltage (Ue) | Filter products by 690 V |
Power & coil
| Coil voltage (Uc) | Filter products by 24 V DC |
|---|
Mechanical & mounting
| Mounting | Filter products by DIN rail |
|---|
Documents
| Datasheet | View on the Schneider Electric site |
|---|
Other specifications
| Related Categories | Filter products by Plug – in Relays, Filter products by Timers & Control Relays |
|---|---|
| SKU/Code/Partnumber | LP1SK0600BD |
| Iternational GTIN | 3389110563931 |
Similar items
8 items
Similar items
8 items
LP5K0910BW3TeSys K reversing contactor – 3P – AC-3 <= 440 V 9 A – 1 NO – 24 V DC coilList R1 974.00 Your price R1 342.32View product
LP2K0910BDTeSys K reversing contactor – 3P – AC-3 <= 440 V 9 A – 1 NO – 24 V DC coilList R1 832.00 Your price R1 245.76View product
LP2K0901BDTeSys K reversing contactor – 3P – AC-3 <= 440 V 9 A – 1 NC – 24 V DC coilList R1 832.00 Your price R1 245.76View product
LP2K0610BDTeSys K reversing contactor – 3P – AC-3 <= 440 V 6 A – 1 NO – 24 V DC coilList R1 691.00 Your price R1 149.88View product
LP2K0601BDTeSys K reversing contactor – 3P – AC-3 <= 440 V 6 A – 1 NC – 24 V DC coilList R1 691.00 Your price R1 149.88View product

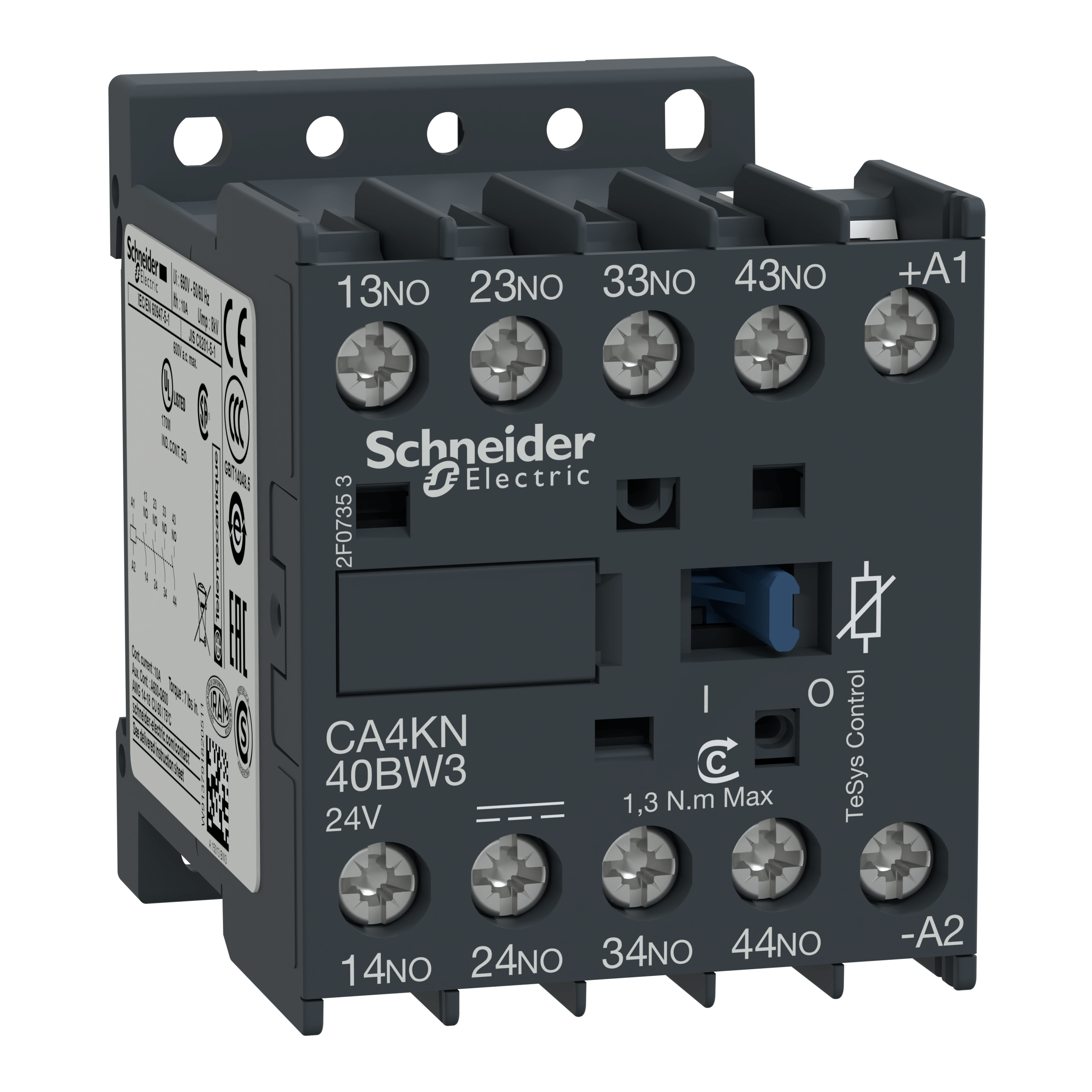

CA4KN40BW3TeSys K control relay – 4 NO – <= 690 V – 24 V DC low consumption coilList R1 592.78 Your price R1 083.09View product

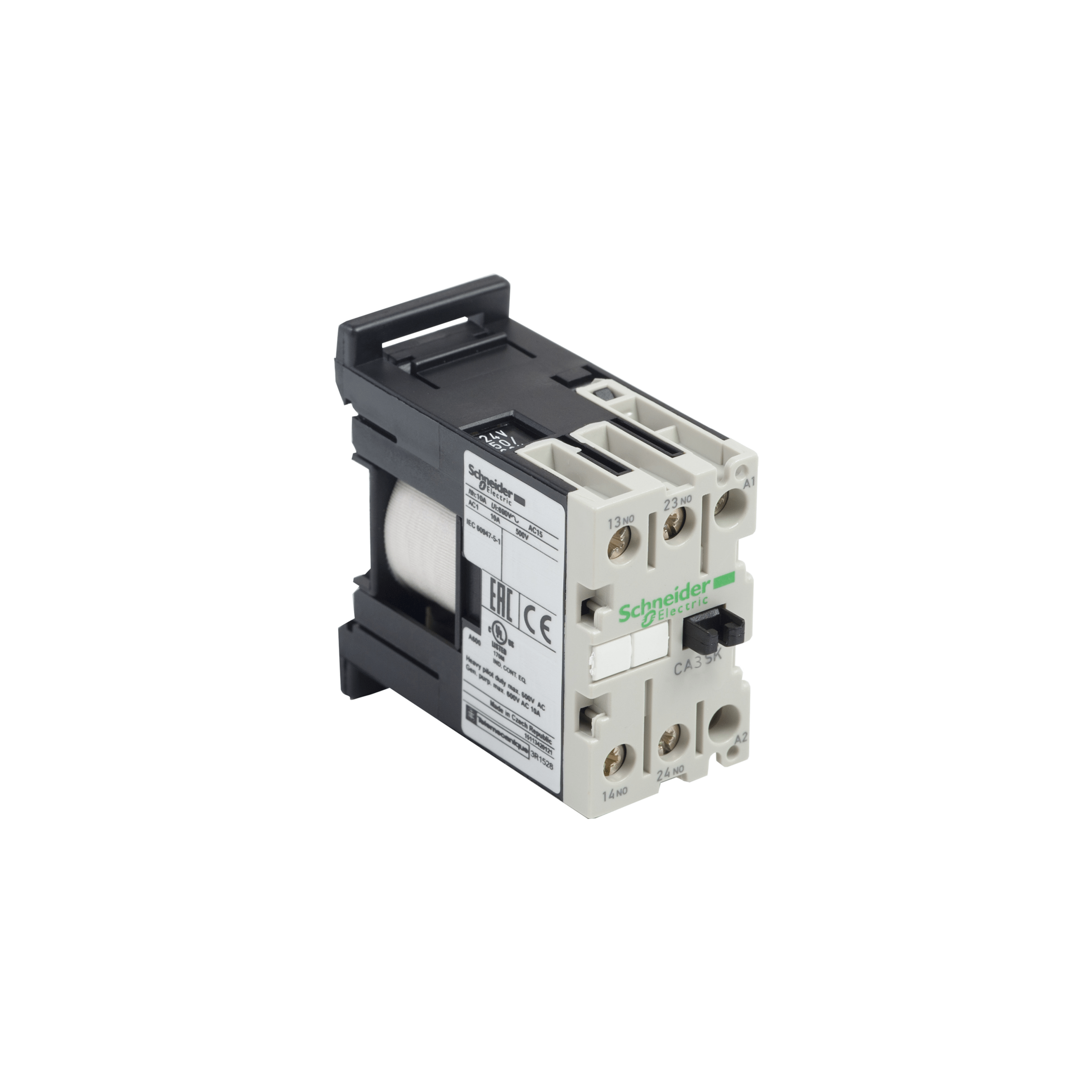

CA3SK11BDTeSys SK control relay – 1 NO + 1 NC – <= 690 V – 24 V DC standard coilList R1 324.67 Your price R900.78View product
