Schneider ElectricDirect-On-Line Starters
LE1D25V7 – TeSys LE – enclosed DOL starter – 25 A – 400 V AC coil Schneider Electric
Order code
Original price was: R1 904.00.R1 294.72Current price is: R1 294.72.
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
TeSys LE – enclosed DOL starter – 25 A – 400 V AC coil — Schneider Electric order code LE1D25V7. Rated current 25 A; rated voltage 400 V; 400 V AC coil; IP65.
Accessories & add-ons 1
- TeSys D control relay – 5 NO – <= 690 V – 115 V AC standard coil Schneider ElectricCAD50FE7 Original price was: R716.00.R486.88Current price is: R486.88.Add
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
LE1D25V7 — TeSys LE – enclosed DOL starter – 25 A – 400 V AC coil by Schneider Electric.

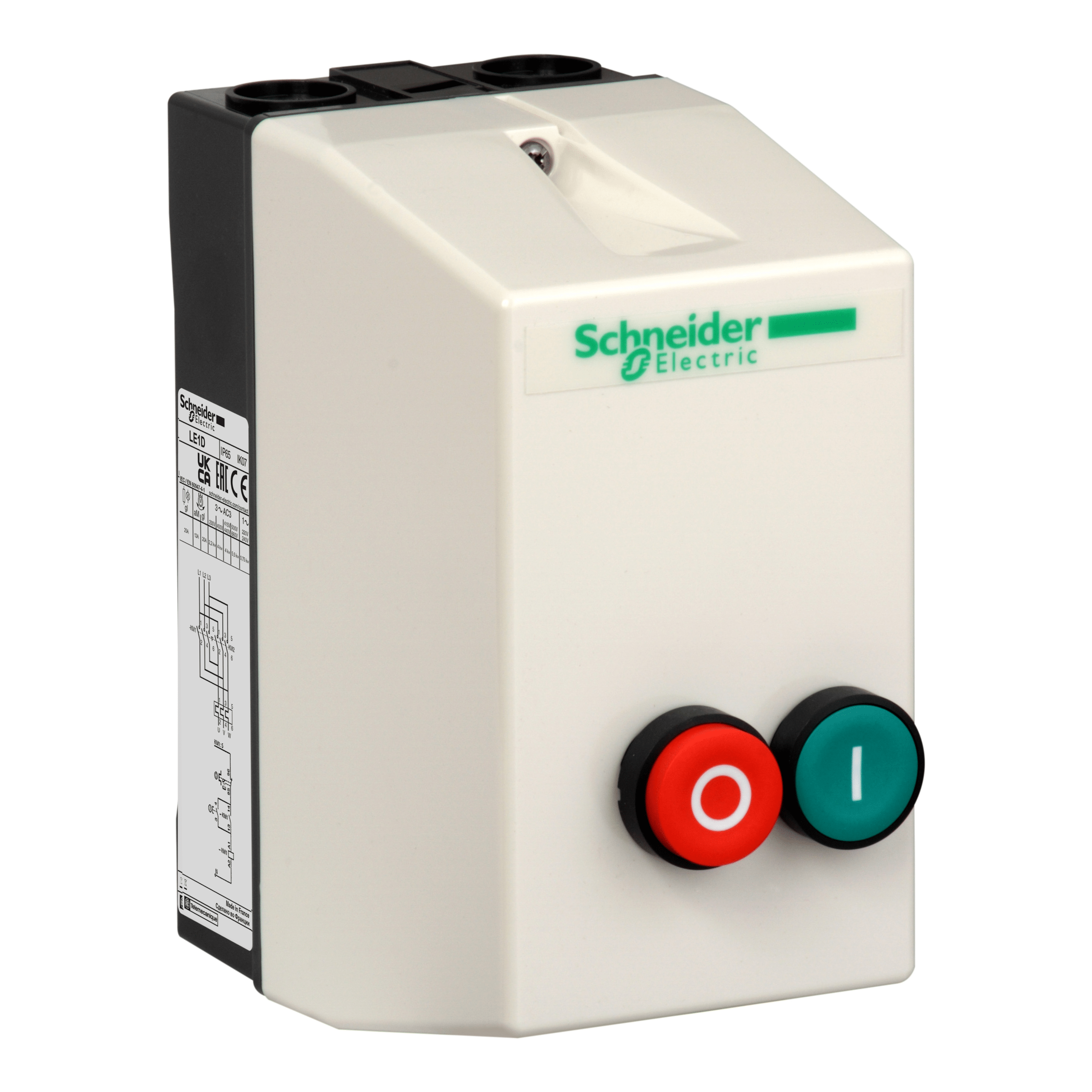

TeSys enclosed starter with contactor, 3 poles, Ithe 25A 690V, for non-reversing motor applications 11kW@400V AC-3. Polycarbonate enclosure providing IP65 / IK07 protection, equipped with a green pushbutton Start (I) and a red pushbutton Stop/Reset (O). It includes a contactor LC1D with a control circuit 400V 50/60Hz. To operate, it must be fitted with a thermal overload relay LRD22 (to be ordered separately). Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom. It conforms to IEC 60947-4-1, Green Premium compliant (RoHS/REACh).
Key specifications: rated current 25 A; rated voltage 400 V; 400 V AC coil; IP65; surface mounting.
Ordering information
- Order code:
LE1D25V7 - Manufacturer: Schneider Electric (formerly Telemecanique)
- Range: TeSys LE
- GTIN / EAN: 3389110586213
- Supplied: each
- Weight: 1.243 kg
- ETIM class: EC001037
- Datasheet: manufacturer datasheet for LE1D25V7
Ordering options in this range
Same product, different coil / control voltage:
LE1D25P7— 230 V ACLE1D25Q7— 380 V AC
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | Filter products by LE1D25V7 – TeSys LE – enclosed DOL starter – 25 A – 400 V AC coil Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by TeSys LE |
| GTIN / EAN | Filter products by 3389110586213 |
| Range | Filter products by TeSys LE |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC001037 |
Electrical ratings
| Rated current (Iu) | Filter products by 25 A |
|---|---|
| Rated voltage (Ue) | Filter products by 400 V |
| Rated operational voltage | Filter products by 400 V |
| Operating Voltage | Filter products by 400 V |
Power & coil
| Coil voltage (Uc) | Filter products by 400 V AC |
|---|
Mechanical & mounting
| Mounting | Filter products by surface |
|---|
Environment & protection
| Degree of protection (IP) | Filter products by IP65 |
|---|
Other specifications
| Related Categories | Filter products by Plug – in Relays, Filter products by Timers & Control Relays |
|---|---|
| SKU/Code/Partnumber | Filter products by LE1D25V7 |
| Iternational GTIN | Filter products by 3389110586213 |
| Mount Type | Filter products by Surface Mount |
Higher-rated in this range
Same series, a larger rating — where the duty is heavier than this part covers.
- LE1D35V7TeSys LE – enclosed DOL starter – 35 A – 400 V AC coil Schneider Electric Original price was: R2 795.00.R1 900.60Current price is: R1 900.60.View product
- LE1D35Q7TeSys LE – enclosed DOL starter – 35 A – 380 V AC coil Schneider Electric Original price was: R2 795.00.R1 900.60Current price is: R1 900.60.View product
- LE1D35F7TeSys LE – enclosed DOL starter – 35 A – 110 V AC coil Schneider ElectricR4 065.73View product

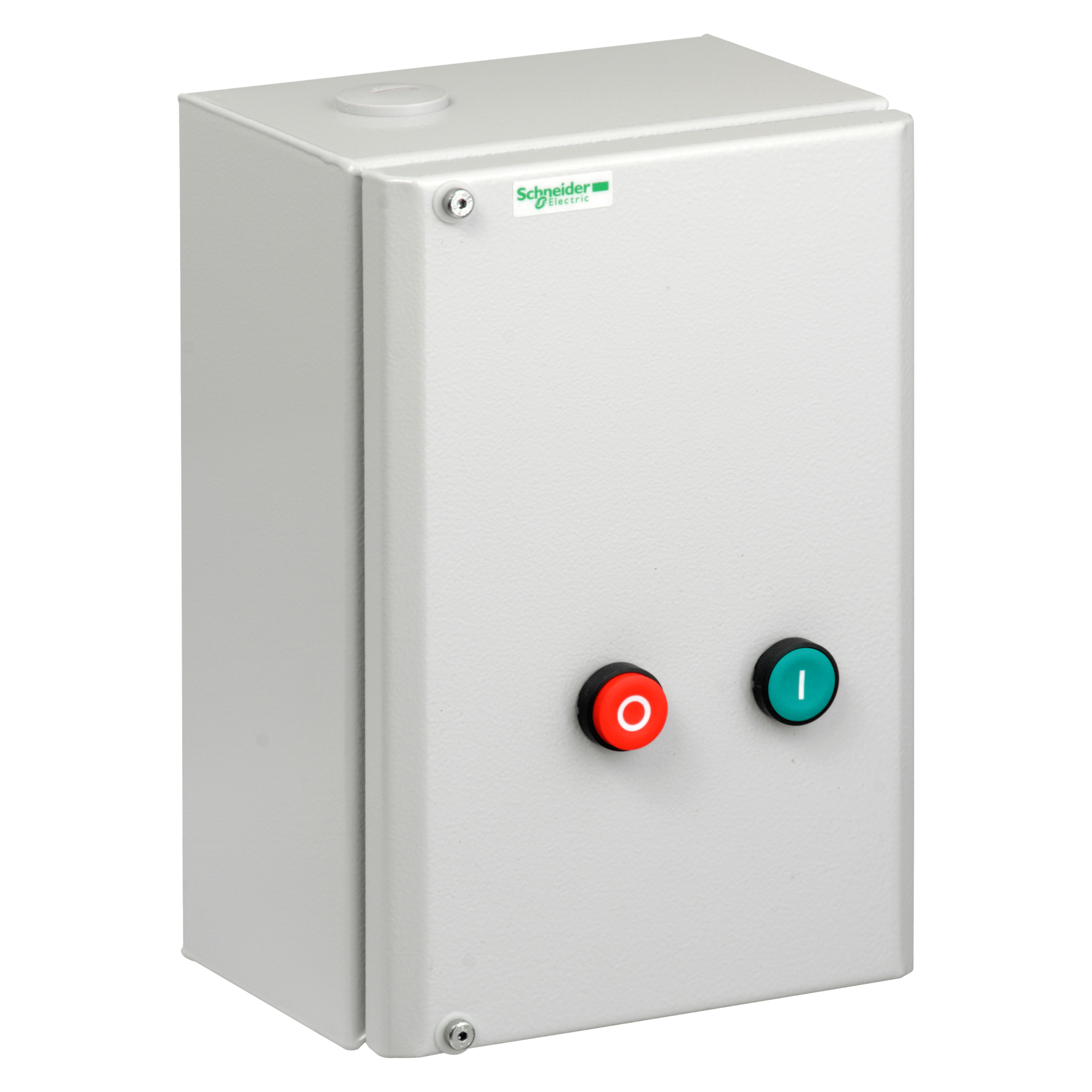

LE1D40AQ7TeSys LE – enclosed DOL starter – 40 A – 380 V AC coil Schneider Electric Original price was: R4 194.00.R2 851.92Current price is: R2 851.92.View product- LE1D40AP7TeSys LE – enclosed DOL starter – 40 A – 230 V AC coil Schneider ElectricR5 547.36View product
- LE1D50AQ7TeSys LE – enclosed DOL starter – 50 A – 380 V AC coil Schneider ElectricR6 473.39View product
More in the TeSys LE range
Same series, same mounting and the same documentation set.
- LE1D65AQ7TeSys LE – enclosed DOL starter – 65 A – 380 V AC coil Schneider Electric Original price was: R6 156.00.R4 186.08Current price is: R4 186.08.View product
- LE1D50AP7TeSys LE – enclosed DOL starter – 50 A – 230 V AC coil Schneider ElectricR6 473.39View product

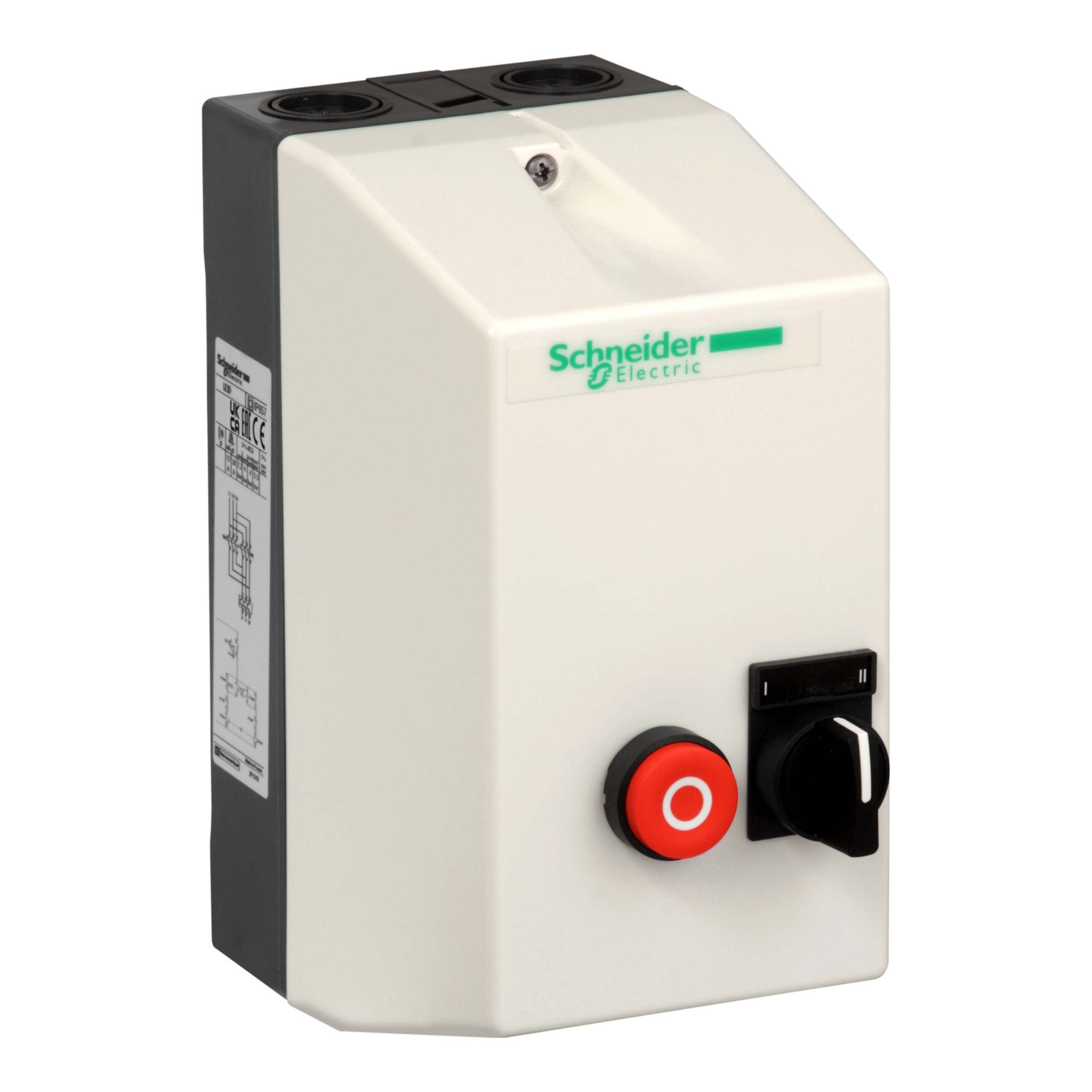

LE2D25V7TeSys LE – enclosed DOL reversing starter – 25 A – 400 V AC coil Schneider ElectricR9 872.38View product- LE2D18V7TeSys LE – enclosed DOL reversing starter – 18 A – 400 V AC coil Schneider ElectricR6 937.29View product
