LC2F265 – TeSys F reversing contactor – 3P(3 NO) AC-3 <= 440 V 265 A - without coil | Schneider Electric
Order code
List R70 369.48 Your price R47 851.25
Per unit · volume pricing available on request
excl. VAT R55 028.94 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
TeSys F reversing contactor – 3P(3 NO) AC-3 <= 440 V 265 A - without coil — Schneider Electric order code LC2F265. Rated current 265 A; 3P; rated voltage 440 V.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
View on the Schneider Electric site (opens in a new tab)
Select a variant in this series
Poles3P2 options
- 3P
- 4P
Rated voltage440 V14 options
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
LC2F265 — TeSys F reversing contactor – 3P(3 NO) AC-3 <= 440 V 265 A – without coil by Schneider Electric. Listed under Contactors on the Schneider Electric catalogue at RMS-SE.Africa.
About LC2F265

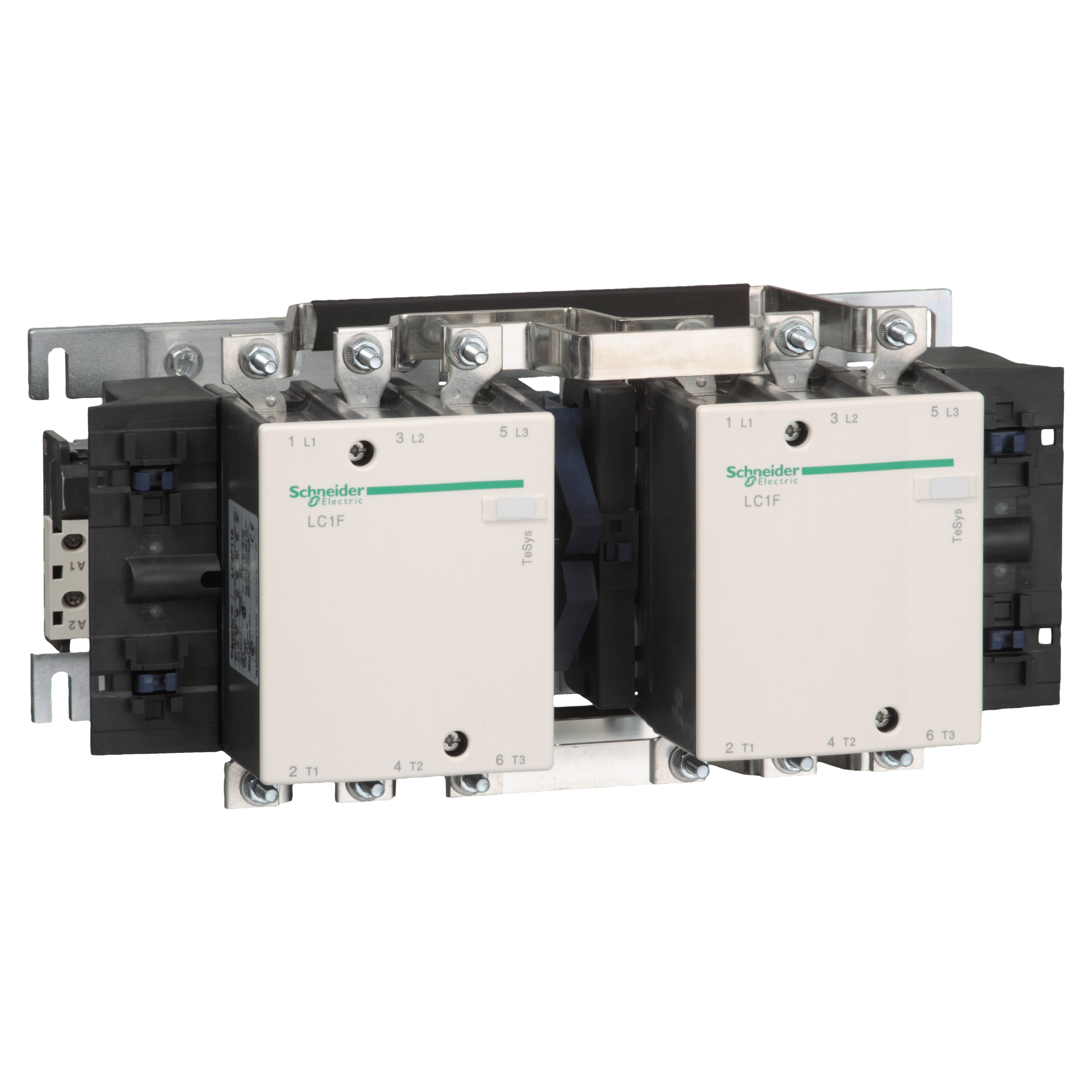

TeSys F reversing contactor, 3 poles (3NO), 265A/1000V AC-3, for motor applications up to 132kW@400V. Without coil (to be ordered separately), it provides bolt terminals for bars or cables with lugs. Equipped with pre-wired reversing power connections, mechanical interlock, without electrical interlocking. Without build-in auxiliary contacts, front mounting auxiliary contact blocks LADN*1 to be added for electrical interlocking (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
LC2F265 key specifications
Key specifications: rated current 265 A; 3P; rated voltage 440 V.
Availability and replacement
Availability notice: Schneider Electric has announced the end of commercialisation of this reference (announced 2022/07/11, last orders 2023/12/31). Stock may still be available; ask us to confirm, or to quote the current replacement.

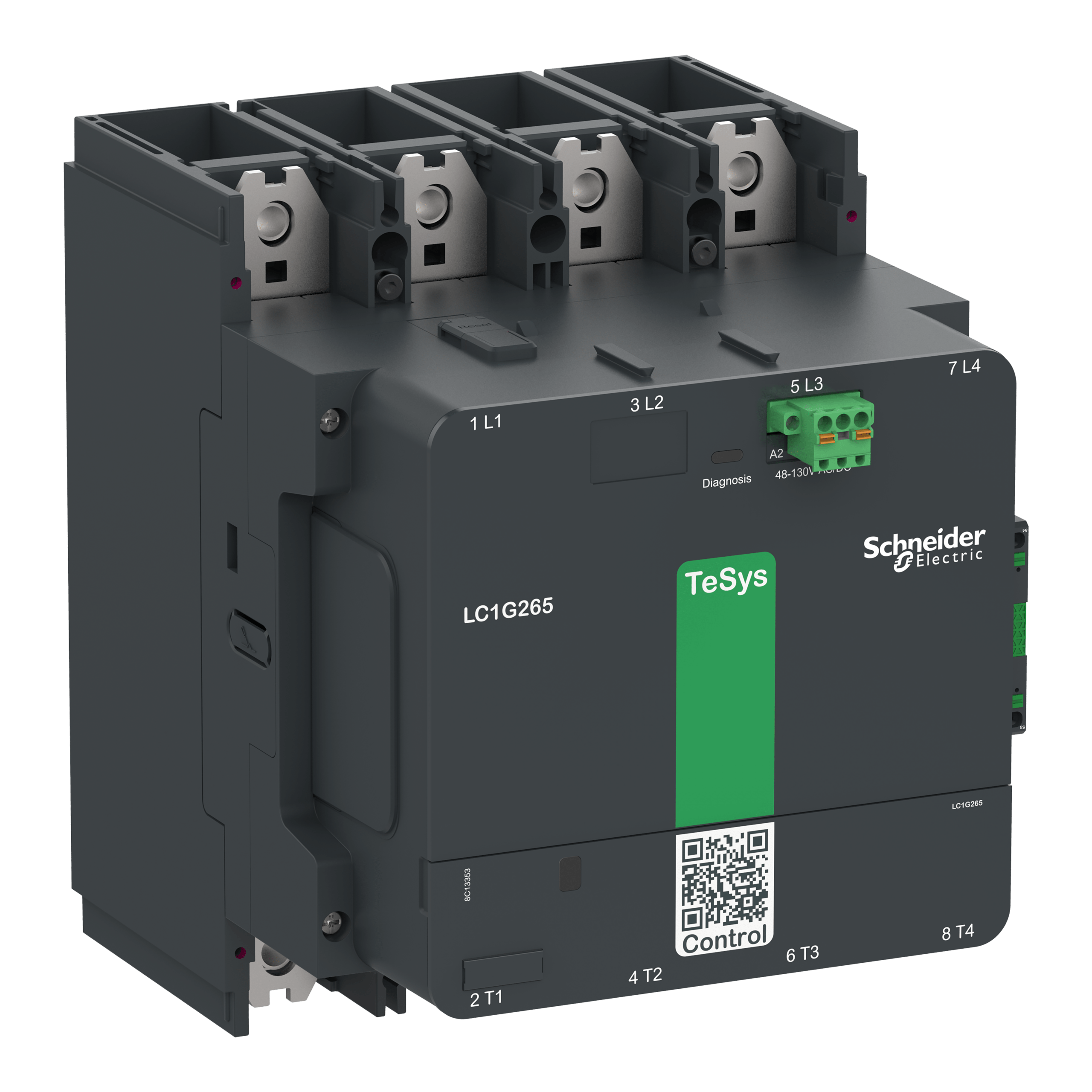

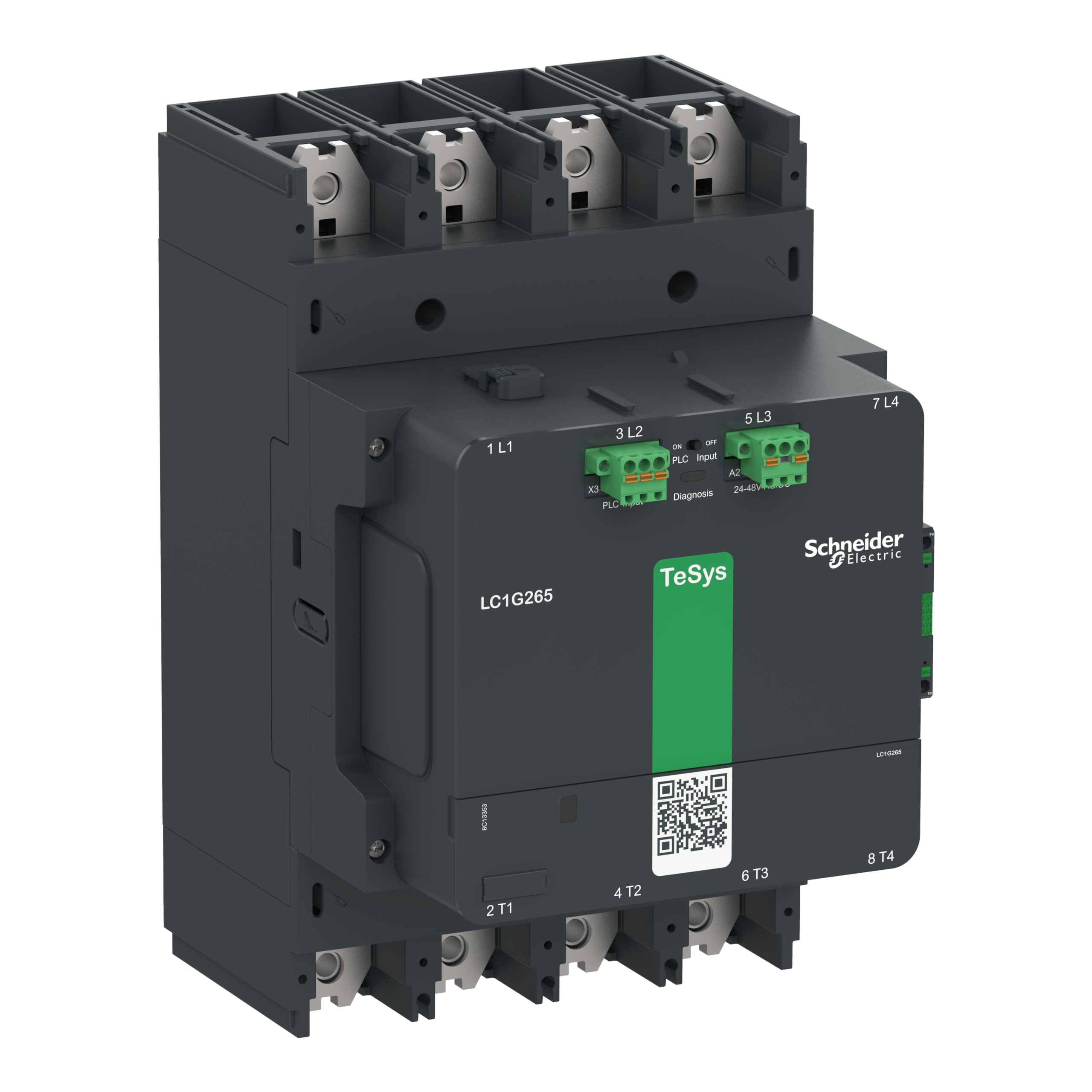

Schneider Electric names TeSys Giga (LC1G contactors, LR9G overload relays) as the successor to the TeSys F range. Schneider FAQ: "TeSys Giga width dimension is reduced up to 35% compared to TeSys F". Ask the sales desk to confirm the exact replacement reference before ordering.
Ordering information for LC2F265
- Order code:
LC2F265 - Manufacturer: Schneider Electric (formerly Telemecanique)
- Range: TeSys F
- GTIN / EAN: 3389110227420
- Supplied: each
- Weight: 17.608 kg
- ETIM class: EC000010
- Datasheet: manufacturer datasheet for LC2F265
How to read the order code
LC2F— TeSys F contactor (reversing)265— AC-3 rating 265 A
About the TeSys F range
TeSys F is a Schneider Electric range with 124 references listed on RMS-SE.Africa, from 115 A to 1600 A. Coil voltages in the range: 110 V AC, 24 V AC. It spans Contactors, Fuses & Fuse Bases. Schneider Electric has announced TeSys Giga (LC1G contactors, LR9G overload relays) as its successor.
LC2F265 — frequently asked questions
What is the rated current of LC2F265?
LC2F265 is rated 265 A.
How many poles does LC2F265 have?
LC2F265 is a 3P device.
Is LC2F265 discontinued, and what replaces it?
Yes. Schneider Electric has announced the end of commercialisation of LC2F265 (last orders 2023/12/31). The named successor is TeSys Giga (LC1G contactors, LR9G overload relays); the sales desk confirms the exact replacement reference and remaining stock.
Where is the datasheet for LC2F265?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Schneider Electric publishes them.
Is LC2F265 a genuine Schneider Electric product?
Yes. LC2F265 is supplied through the manufacturer’s authorised channel with the standard Schneider Electric warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | Filter products by LC2F265 – TeSys F reversing contactor – 3P(3 NO) AC-3 <= 440 V 265 A – without coil Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by TeSys F |
| GTIN / EAN | 3389110227420 |
| Lifecycle status | Filter products by End of commercialisation announced |
| ETIM class | Filter products by EC000010 |
Electrical ratings
| Number of poles | Filter products by 3P |
|---|---|
| Rated current (Iu) | Filter products by 265 A |
| Rated current AC-3 (Ie) | Filter products by 265 A |
| Rated voltage (Ue) | Filter products by 440 V |
Documents
| Datasheet | View on the Schneider Electric site |
|---|
Other specifications
| Rated power kw | Filter products by 132 kW at 400 V |
|---|---|
| Related Categories | Filter products by Plug – in Relays, Filter products by Timers & Control Relays |
| SKU/Code/Partnumber | LC2F265 |
| Iternational GTIN | 3389110227420 |
| Mount Type | Filter products by Plug-in |
