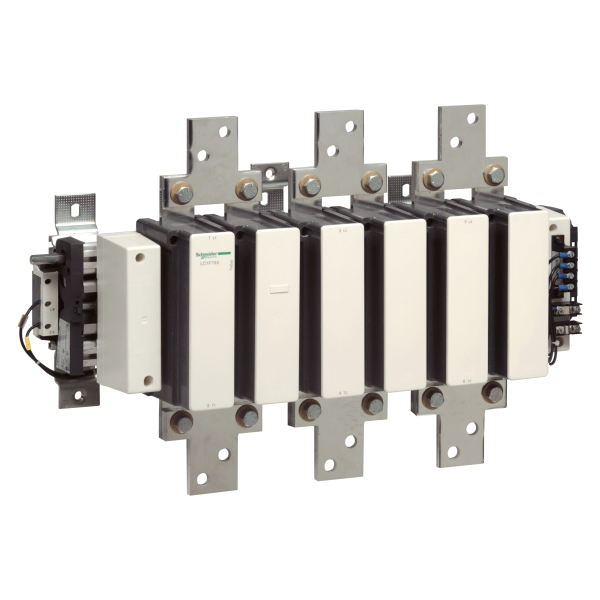

LC1F780 – TeSys F contactor – 3P(3 NO)-AC-3 <= 440V 780 A with coil LX1/ LX9 - 110…500V AC 40/400Hz, LX4 - 110…440V DC | Schneider Electric
Order code
List R92 935.00 Your price R63 195.80
Per unit · volume pricing available on request
excl. VAT R72 675.17 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
TeSys F contactor – 3P(3 NO)-AC-3 <= 440V 780 A with coil LX1/ LX9 - 110…500V AC 40/400Hz, LX4 - 110…440V DC — Schneider Electric order code LC1F780. Rated current 780 A; 3P; rated voltage 440 V; 400 Hz.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
View on the Schneider Electric site (opens in a new tab)
Select a variant in this series
Poles3P2 options
- 3P
- 4P
Rated voltage440 V14 options
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
LC1F780 — TeSys F contactor – 3P(3 NO)-AC-3 <= 440V 780 A with coil LX1/ LX9 – 110…500V AC 40/400Hz, LX4 – 110…440V DC by Schneider Electric. Listed under Contactors on the Schneider Electric catalogue at RMS-SE.Africa.
About LC1F780
TeSys F contactor, 3 poles (3NO), 780A/1000V AC-3, for motor applications up to 400kW@400V. Contactor with no coil to allow a later selection and installation (coil to be ordered separately), it provides bolt terminals for bars or cables with lugs. For high operating rates until 600 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to a drawer for insertion of the selected coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
LC1F780 key specifications
Key specifications: rated current 780 A; 3P; rated voltage 440 V; 400 Hz.
Availability and replacement
Schneider Electric names TeSys Giga (LC1G contactors, LR9G overload relays) as the successor to the TeSys F range. Schneider FAQ: "TeSys Giga width dimension is reduced up to 35% compared to TeSys F". Ask the sales desk to confirm the exact replacement reference before ordering.
Ordering information for LC1F780
- Order code:
LC1F780 - Manufacturer: Schneider Electric (formerly Telemecanique)
- Range: TeSys F
- GTIN / EAN: 3389110227239
- Supplied: each
- Weight: 41 kg
- ETIM class: EC000066
- Datasheet: manufacturer datasheet for LC1F780
How to read the order code
LC1F— TeSys F contactor780— AC-3 rating 780 A
About the TeSys F range
TeSys F is a Schneider Electric range with 124 references listed on RMS-SE.Africa, from 115 A to 1600 A. Coil voltages in the range: 110 V AC, 24 V AC. It spans Contactors, Fuses & Fuse Bases. Schneider Electric has announced TeSys Giga (LC1G contactors, LR9G overload relays) as its successor.
LC1F780 — frequently asked questions
What is the rated current of LC1F780?
LC1F780 is rated 780 A.
How many poles does LC1F780 have?
LC1F780 is a 3P device.
Where is the datasheet for LC1F780?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Schneider Electric publishes them.
Is LC1F780 a genuine Schneider Electric product?
Yes. LC1F780 is supplied through the manufacturer’s authorised channel with the standard Schneider Electric warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | LC1F780 – TeSys F contactor – 3P(3 NO)-AC-3 <= 440V 780 A with coil LX1/ LX9 – 110…500V AC 40/400Hz, LX4 – 110…440V DC Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by TeSys F |
| GTIN / EAN | 3389110227239 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC000066 |
Electrical ratings
| Number of poles | Filter products by 3P |
|---|---|
| Rated current (Iu) | Filter products by 780 A |
| Rated current AC-3 (Ie) | Filter products by 780 A |
| Rated voltage (Ue) | Filter products by 440 V |
| Operating Voltage | Filter products by 440V |
| Rated Frequency | Filter products by 400 Hz |
Documents
| Datasheet | View on the Schneider Electric site |
|---|
Other specifications
| Rated power kw | Filter products by 400 kW at 400 V |
|---|---|
| Related Categories | Filter products by Plug – in Relays, Filter products by Timers & Control Relays |
| SKU/Code/Partnumber | LC1F780 |
| Iternational GTIN | 3389110227239 |
| Mount Type | Filter products by Plug-in |
