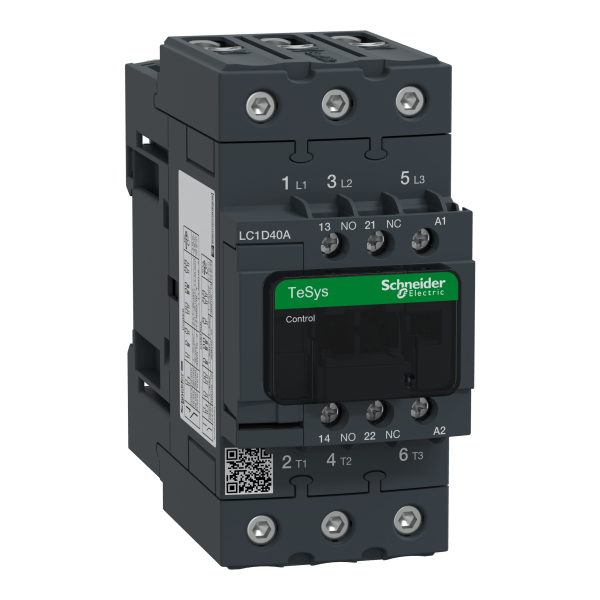

LC1D40AB7 – TeSys D contactor – 3P(3 NO) – AC-3 – <= 440 V 40 A - 24 V AC 50/60 Hz coil | Schneider Electric
Order code
List R2 958.00 Your price R2 011.44
Per unit · volume pricing available on request
excl. VAT R2 313.16 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
TeSys D contactor – 3P(3 NO) – AC-3 – <= 440 V 40 A - 24 V AC 50/60 Hz coil — Schneider Electric order code LC1D40AB7. Rated current 40 A; 3P; rated voltage 440 V; 50 / 60 Hz.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
View on the Schneider Electric site (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
LC1D40AB7 — TeSys D contactor – 3P(3 NO) – AC-3 – <= 440 V 40 A – 24 V AC 50/60 Hz coil by Schneider Electric. Listed under Contactors on the Schneider Electric catalogue at RMS-SE.Africa.
About LC1D40AB7
TeSys D contactor, 3 poles (3NO), for motor control applications up to 40A/440V AC-3/3e (18.5kW@400V). It provides a 24V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by EverLink BTR screw connectors, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (55mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
LC1D40AB7 key specifications
Key specifications: rated current 40 A; 3P; rated voltage 440 V; 50 / 60 Hz.
Ordering information for LC1D40AB7
- Order code:
LC1D40AB7 - Manufacturer: Schneider Electric (formerly Telemecanique)
- Range: TeSys D
- GTIN / EAN: 3389119408325
- Supplied: each
- Weight: 0.917 kg
- ETIM class: EC000066
- Datasheet: manufacturer datasheet for LC1D40AB7
About the TeSys D range
TeSys D is a Schneider Electric range with 504 references listed on RMS-SE.Africa, from 1 A to 200 A. Coil voltages in the range: 440 V, 110 V AC, 230 V AC, 24 V DC, 24 V AC, 48 V AC, 110 V DC, 400 V AC. It spans Contactors, Motor Protection Circuit Breakers.
LC1D40AB7 — frequently asked questions
What is the rated current of LC1D40AB7?
LC1D40AB7 is rated 40 A.
How many poles does LC1D40AB7 have?
LC1D40AB7 is a 3P device.
Where is the datasheet for LC1D40AB7?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Schneider Electric publishes them.
Is LC1D40AB7 a genuine Schneider Electric product?
Yes. LC1D40AB7 is supplied through the manufacturer’s authorised channel with the standard Schneider Electric warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | Filter products by LC1D40AB7 – TeSys D contactor – 3P(3 NO) – AC-3 – <= 440 V 40 A – 24 V AC 50/60 Hz coil Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by TeSys D |
| GTIN / EAN | 3389119408325 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC000066 |
Electrical ratings
| Number of poles | Filter products by 3P |
|---|---|
| Rated current (Iu) | Filter products by 40 A |
| Rated current AC-3 (Ie) | Filter products by 40 A |
| Rated voltage (Ue) | Filter products by 440 V |
| Rated Frequency | Filter products by 50 / 60 Hz |
Documents
| Datasheet | View on the Schneider Electric site |
|---|
Other specifications
| Rated power kw | Filter products by 18.5 kW at 400 V |
|---|---|
| Related Categories | Filter products by Plug – in Relays, Filter products by Timers & Control Relays |
| SKU/Code/Partnumber | Search products for LC1D40AB7 |
| Iternational GTIN | 3389119408325 |
| Mount Type | Filter products by Plug-in |
