| Rated current (Iu) | Filter products by 150 A |
|---|---|
| Rated voltage (Ue) | Filter products by 440 V |
| Number of poles | Filter products by 3P |
| Product Series | Filter products by TeSys D |

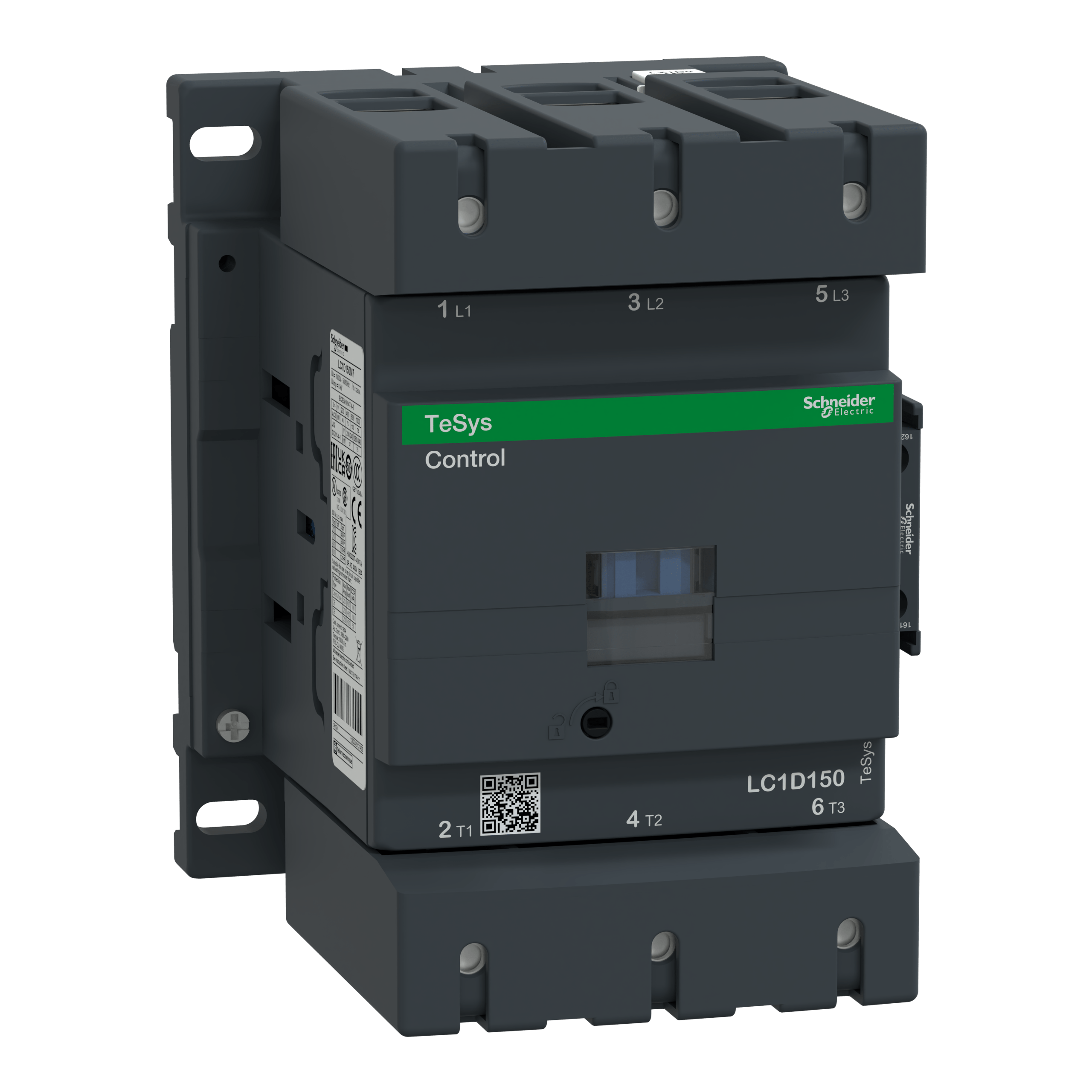

LC1D150B7 – TeSys D contactor – 3P(3 NO) – AC-3 – <= 440 V 150 A – 24 V AC 50/60 Hz coil Schneider Electric
Order code
Original price was: R8 182.00.R5 563.76Current price is: R5 563.76.
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
TeSys D contactor – 3P(3 NO) – AC-3 – <= 440 V 150 A - 24 V AC 50/60 Hz coil — Schneider Electric order code LC1D150B7. Rated current 150 A; 3P; rated voltage 440 V; 50 / 60 Hz.
Accessories & add-ons 1
- TeSys D control relay – 5 NO – <= 690 V – 115 V AC standard coil Schneider ElectricCAD50FE7 Original price was: R716.00.R486.88Current price is: R486.88.Add
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
LC1D150B7 — TeSys D contactor – 3P(3 NO) – AC-3 – <= 440 V 150 A – 24 V AC 50/60 Hz coil by Schneider Electric.
TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 150A/1000V AC-3 (75kW@400V). It provides a 24V 50/60Hz AC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirrror contact), power connection by screw connectors 2 inputs, control connection by screw clamp terminals. For operating rates until 1200 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (120mm width), mounting on 2 DIN-rails or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Key specifications: rated current 150 A; 3P; rated voltage 440 V; 50 / 60 Hz.
Ordering information
- Order code:
LC1D150B7 - Manufacturer: Schneider Electric (formerly Telemecanique)
- Range: TeSys D
- GTIN / EAN: 3389110475999
- Supplied: each
- Weight: 2.454 kg
- ETIM class: EC000066
- Datasheet: manufacturer datasheet for LC1D150B7
How to read the order code
LC1D— TeSys D contactor150— AC-3 rating 150 AB7— coil 24 V AC
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
Electrical ratings
| Number of poles | Filter products by 3P |
|---|---|
| Rated current (Iu) | Filter products by 150 A |
| Rated voltage (Ue) | Filter products by 440 V |
| Rated operational voltage | Filter products by 440 V |
| Operating Voltage | Filter products by 440 V |
| Rated Frequency | Filter products by 50 / 60 Hz |
Other specifications
| Related Categories | Filter products by Plug – in Relays, Filter products by Timers & Control Relays |
|---|---|
| SKU/Code/Partnumber | Filter products by LC1D150B7 |
| Iternational GTIN | Filter products by 3389110475999 |
| Mount Type | Filter products by Plug-in |
