Trouble loading the 360° view? Open it in a new tab
| Rated current (Iu) | Filter products by 9 A |
|---|---|
| Rated current AC-3 (Ie) | Filter products by 12 A |
| Rated voltage (Ue) | Filter products by 690 V |
| Product Series | Filter products by TeSys D |
LC1D12BD – LC1D12BD – TeSys D contactors innovation to control your motors.The only contactor range with full compatibility with PLC input/output from 9A to 65A. | Schneider Electric
Order code
List R825.00 Your price R453.75
Per unit · volume pricing available on request
excl. VAT R521.81 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
LC1D12BD – TeSys D contactors innovation to control your motors.The only contactor range with full compatibility with PLC input/output from 9A to 65A. — Schneider Electric order code LC1D12BD. Rated current 9 A; rated voltage 690 V.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
View on the Schneider Electric site (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
LC1D12BD — LC1D12BD – TeSys D contactors innovation to control your motors.The only contactor range with full compatibility with PLC input/output from 9A to 65A. by Schneider Electric. Listed under Contactors on the Schneider Electric catalogue at RMS-SE.Africa.
About LC1D12BD

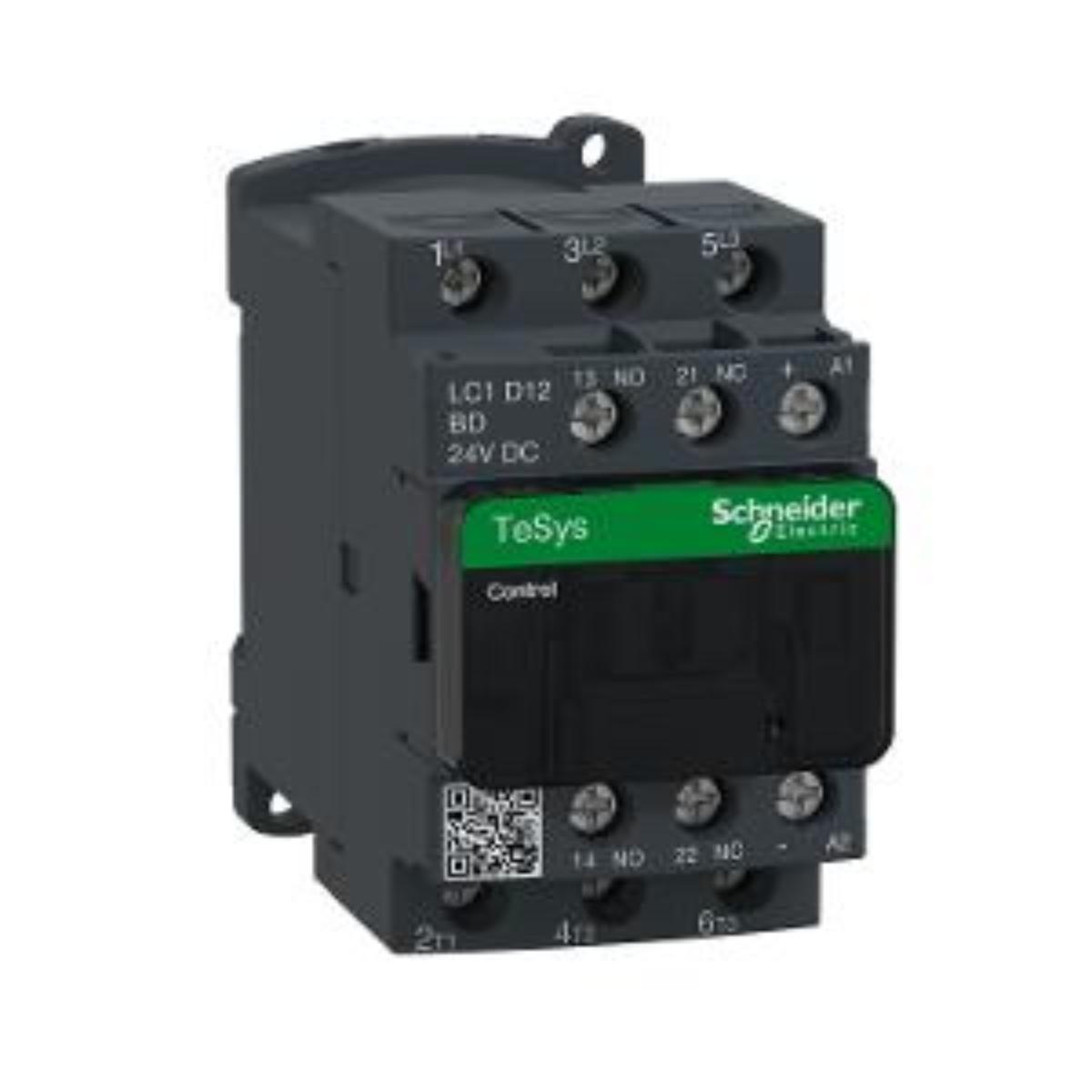

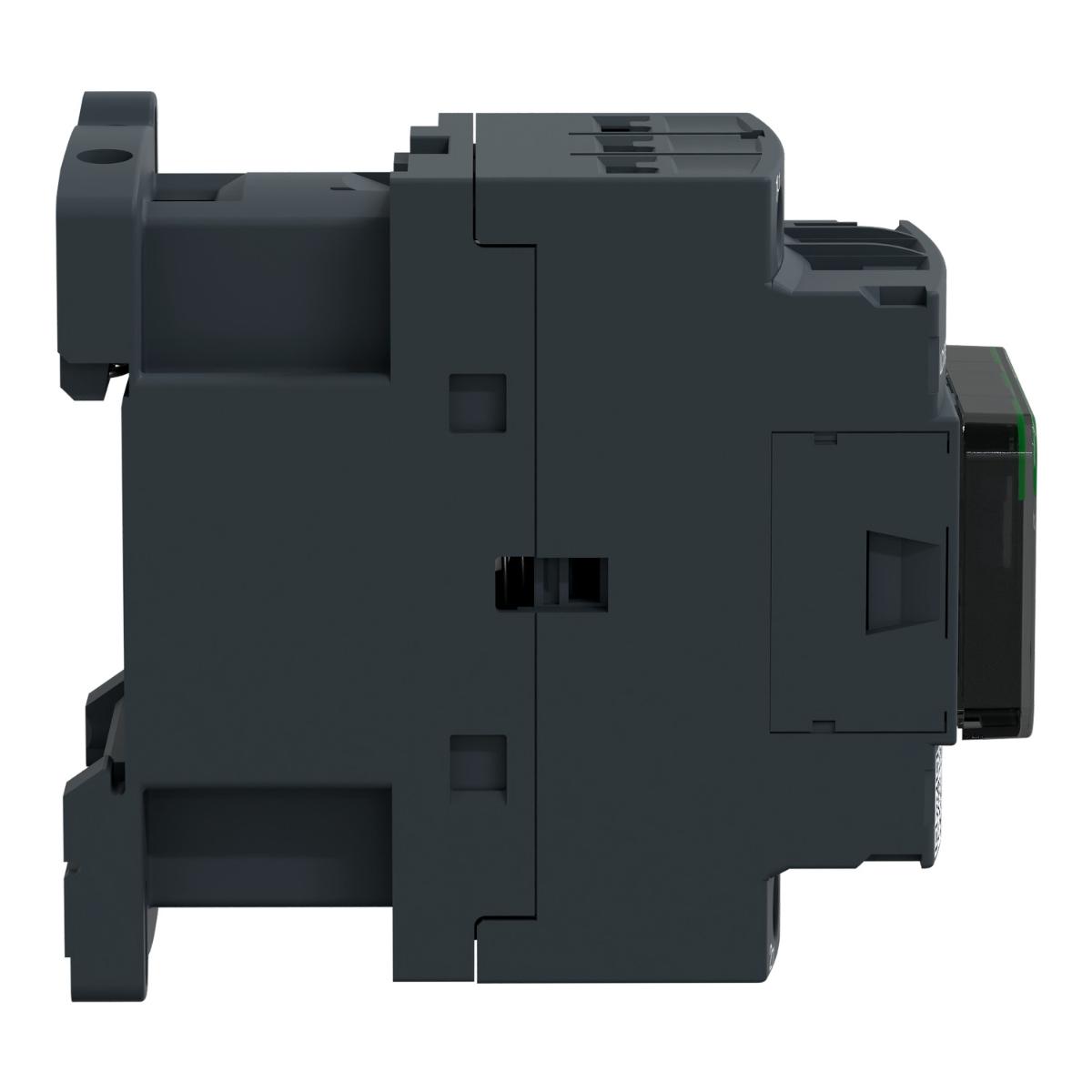

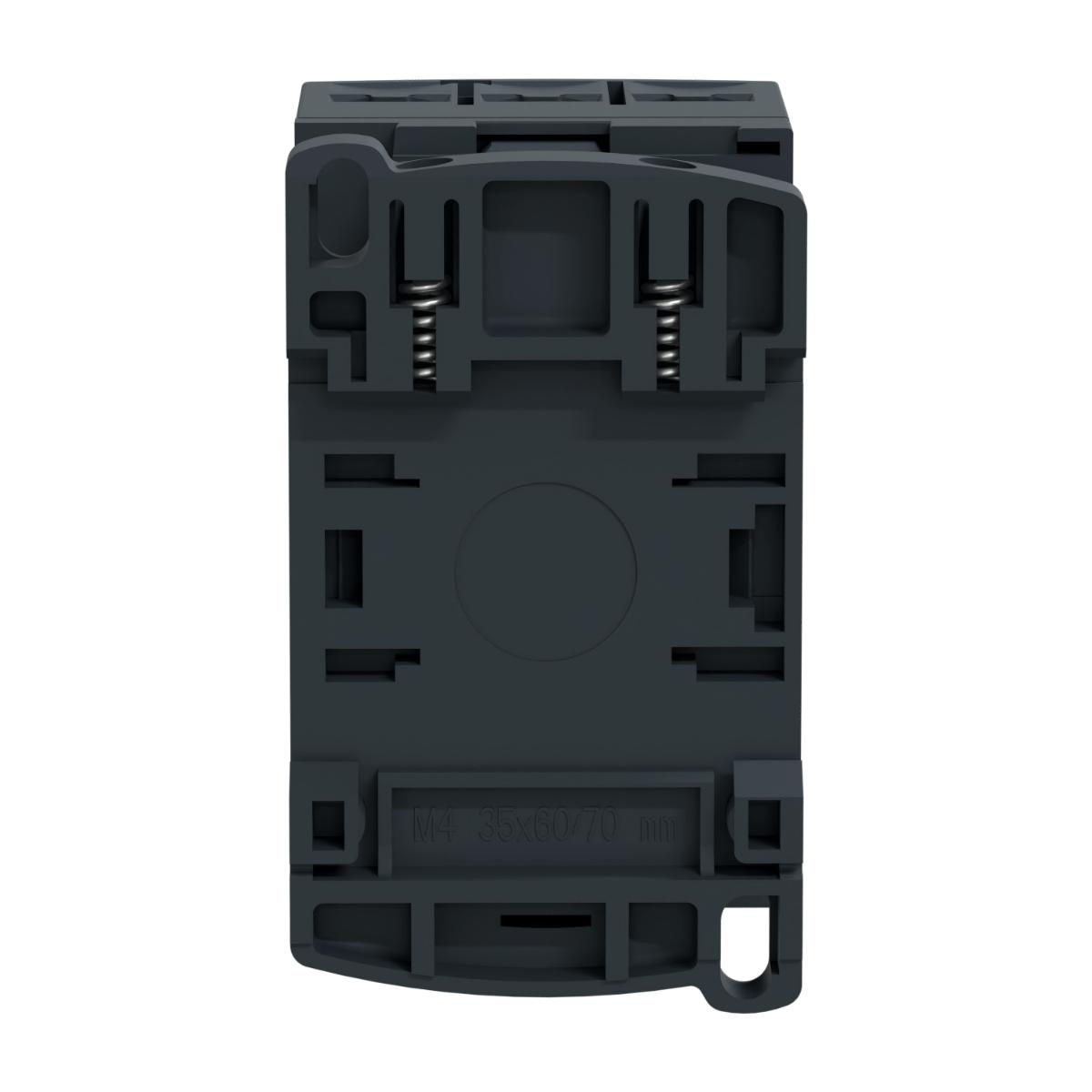

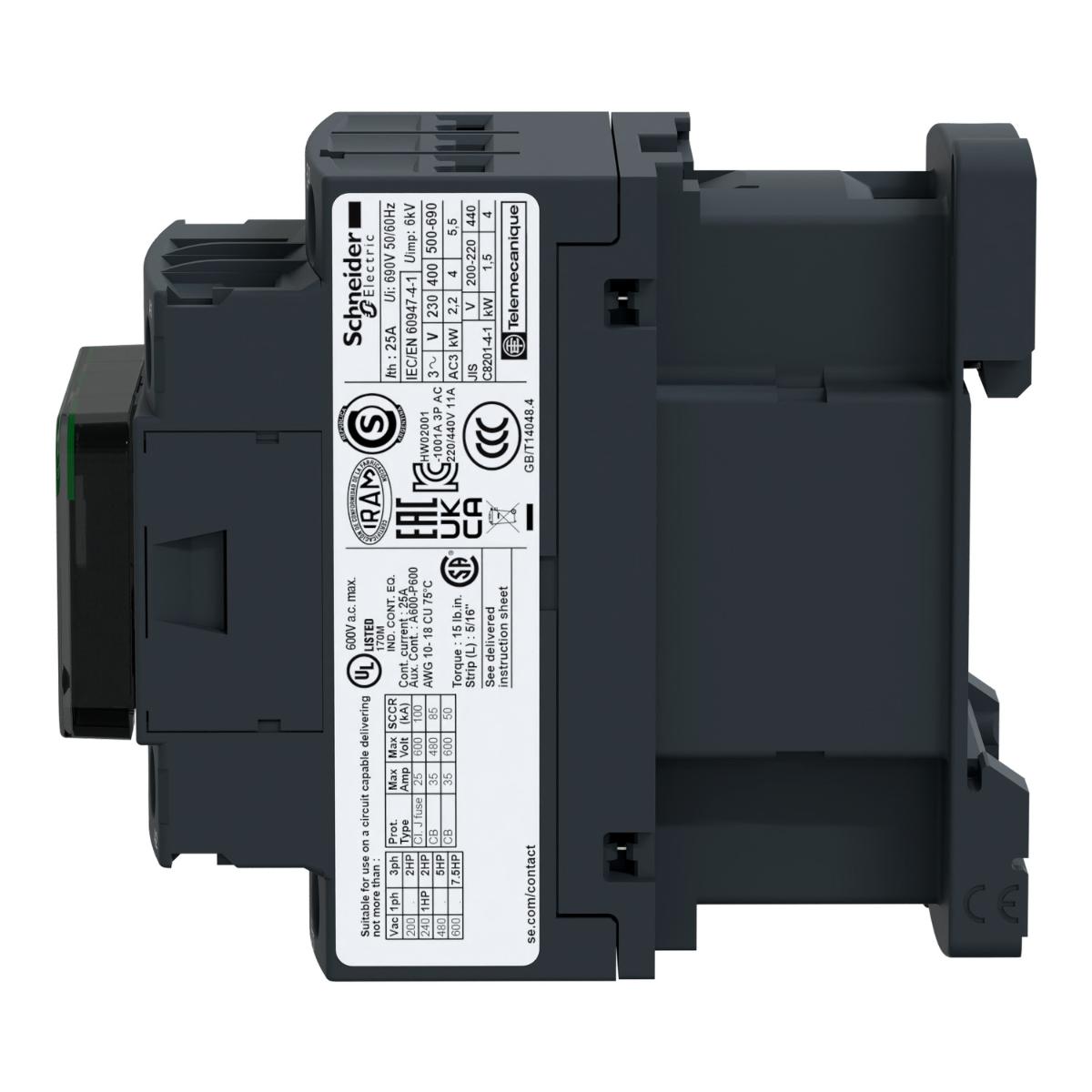

TeSys D contactor, 3 poles (3NO), for motor control applications up to 12A/690V AC-3/3e (5.5kW@400V). It provides a 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
LC1D12BD key specifications
Key specifications: rated current 9 A; rated voltage 690 V.
Ordering information for LC1D12BD
- Order code:
LC1D12BD - Manufacturer: Schneider Electric (formerly Telemecanique)
- Range: TeSys D
- GTIN / EAN: 3389110353716
- Supplied: each
- Weight: 0.52 kg
- ETIM class: EC000066
- Datasheet: manufacturer datasheet for LC1D12BD
About the TeSys D range
TeSys D is a Schneider Electric range with 504 references listed on RMS-SE.Africa, from 1 A to 200 A. Coil voltages in the range: 440 V, 110 V AC, 230 V AC, 24 V DC, 24 V AC, 48 V AC, 110 V DC, 400 V AC. It spans Contactors, Motor Protection Circuit Breakers.
LC1D12BD — frequently asked questions
What is the rated current of LC1D12BD?
LC1D12BD is rated 9 A.
Where is the datasheet for LC1D12BD?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Schneider Electric publishes them.
Is LC1D12BD a genuine Schneider Electric product?
Yes. LC1D12BD is supplied through the manufacturer’s authorised channel with the standard Schneider Electric warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | LC1D12BD – LC1D12BD – TeSys D contactors innovation to control your motors.The only contactor range with full compatibility with PLC input/output from 9A to 65A. Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by TeSys D |
| GTIN / EAN | 3389110353716 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC000066 |
Electrical ratings
| Rated current (Iu) | Filter products by 9 A |
|---|---|
| Rated current AC-3 (Ie) | Filter products by 12 A |
| Rated voltage (Ue) | Filter products by 690 V |
| Operating Voltage | Filter products by 690V |
Documents
| Datasheet | View on the Schneider Electric site |
|---|
Other specifications
| Rated power kw | Filter products by 5.5 kW at 400 V |
|---|---|
| Related Categories | Filter products by Plug – in Relays, Filter products by Timers & Control Relays |
| SKU/Code/Partnumber | LC1D12BD |
| Iternational GTIN | 3389110353716 |
| Mount Type | Filter products by Plug-in |
