| Rated current (Iu) | Filter products by 9 A |
|---|---|
| Rated voltage (Ue) | Filter products by 440 V |
| Number of poles | Filter products by 3P |
| Coil voltage (Uc) | Filter products by 400 V AC |
| Product Series | Filter products by TeSys D |

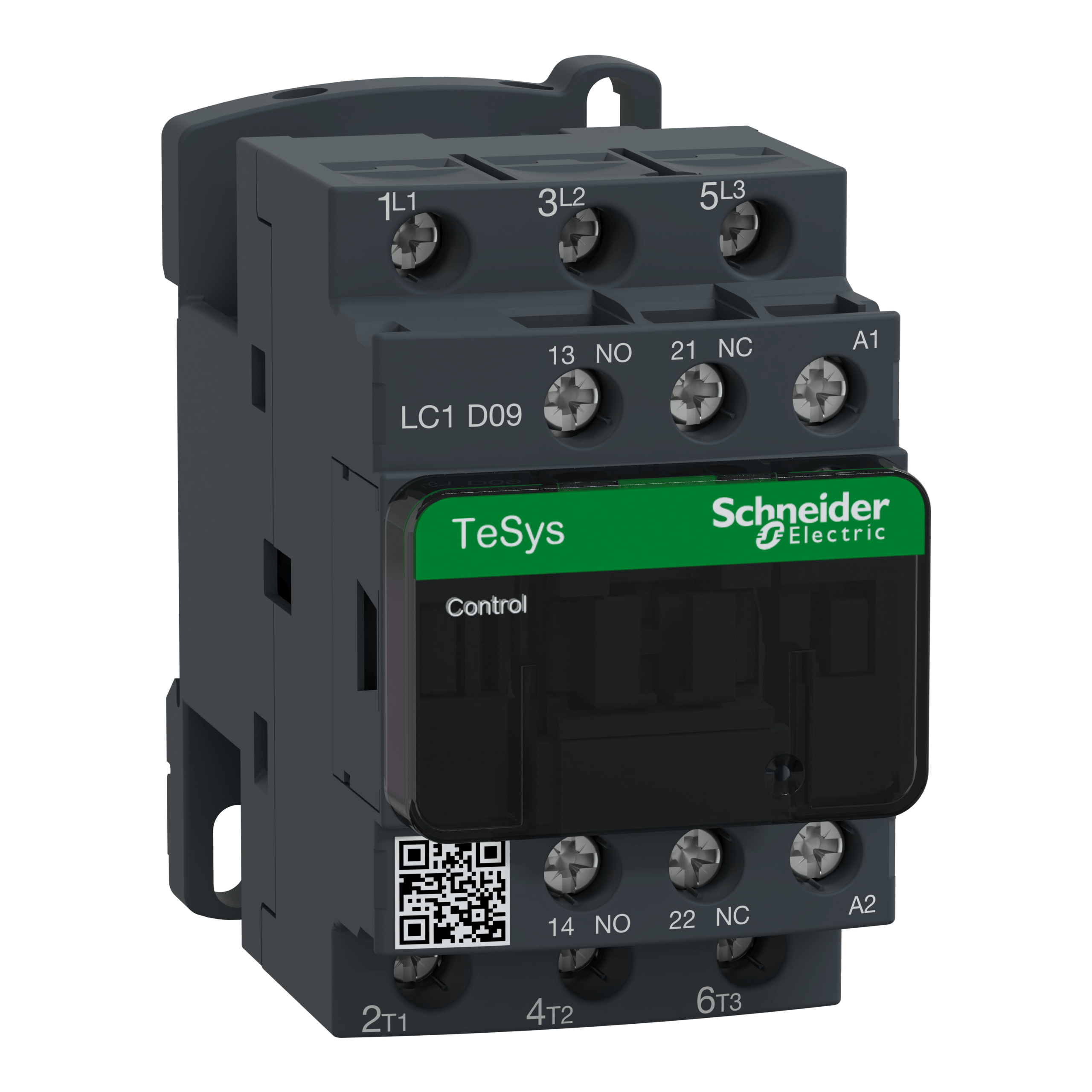

LC1D09V7 – TeSys D contactor, 3P(3 NO), AC-3, <= 440 V 9 A, 400 VAC coil Schneider Electric
Order code
Original price was: R711.00.R391.05Current price is: R391.05.
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
TeSys D contactor, 3P(3 NO), AC-3, <= 440 V 9 A, 400 VAC coil — Schneider Electric order code LC1D09V7. Rated current 9 A; 3P; rated voltage 440 V; 400 V AC coil.
Accessories & add-ons 1
- TeSys D control relay – 5 NO – <= 690 V – 115 V AC standard coil Schneider ElectricCAD50FE7 Original price was: R716.00.R486.88Current price is: R486.88.Add
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
LC1D09V7 — TeSys D contactor, 3P(3 NO), AC-3, <= 440 V 9 A, 400 VAC coil by Schneider Electric.
TeSys D contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3/3e (4kW@400V). It provides a 400V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Key specifications: rated current 9 A; 3P; rated voltage 440 V; 400 V AC coil.
Ordering information
- Order code:
LC1D09V7 - Manufacturer: Schneider Electric (formerly Telemecanique)
- Range: TeSys D
- GTIN / EAN: 3389110349122
- Supplied: each
- Weight: 0.349 kg
- ETIM class: EC000066
- Datasheet: manufacturer datasheet for LC1D09V7
How to read the order code
LC1D— TeSys D contactor09— AC-3 rating 9 AV7— coil 400 V AC
Ordering options in this range
Same product, different coil / control voltage:
LC1D09B7— 24 V ACLC1D09P7— 230 V AC
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | Filter products by LC1D09V7 – TeSys D contactor, 3P(3 NO), AC-3, <= 440 V 9 A, 400 VAC coil Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by TeSys D |
| GTIN / EAN | Filter products by 3389110349122 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC000066 |
Electrical ratings
| Number of poles | Filter products by 3P |
|---|---|
| Rated current (Iu) | Filter products by 9 A |
| Rated voltage (Ue) | Filter products by 440 V |
Power & coil
| Coil voltage (Uc) | Filter products by 400 V AC |
|---|
Other specifications
| Related Categories | Filter products by Plug – in Relays, Filter products by Timers & Control Relays |
|---|---|
| SKU/Code/Partnumber | Filter products by LC1D09V7 |
| Iternational GTIN | Filter products by 3389110349122 |
| Mount Type | Filter products by Plug-in |
