Schneider ElectricMotor Protection Circuit Breakers

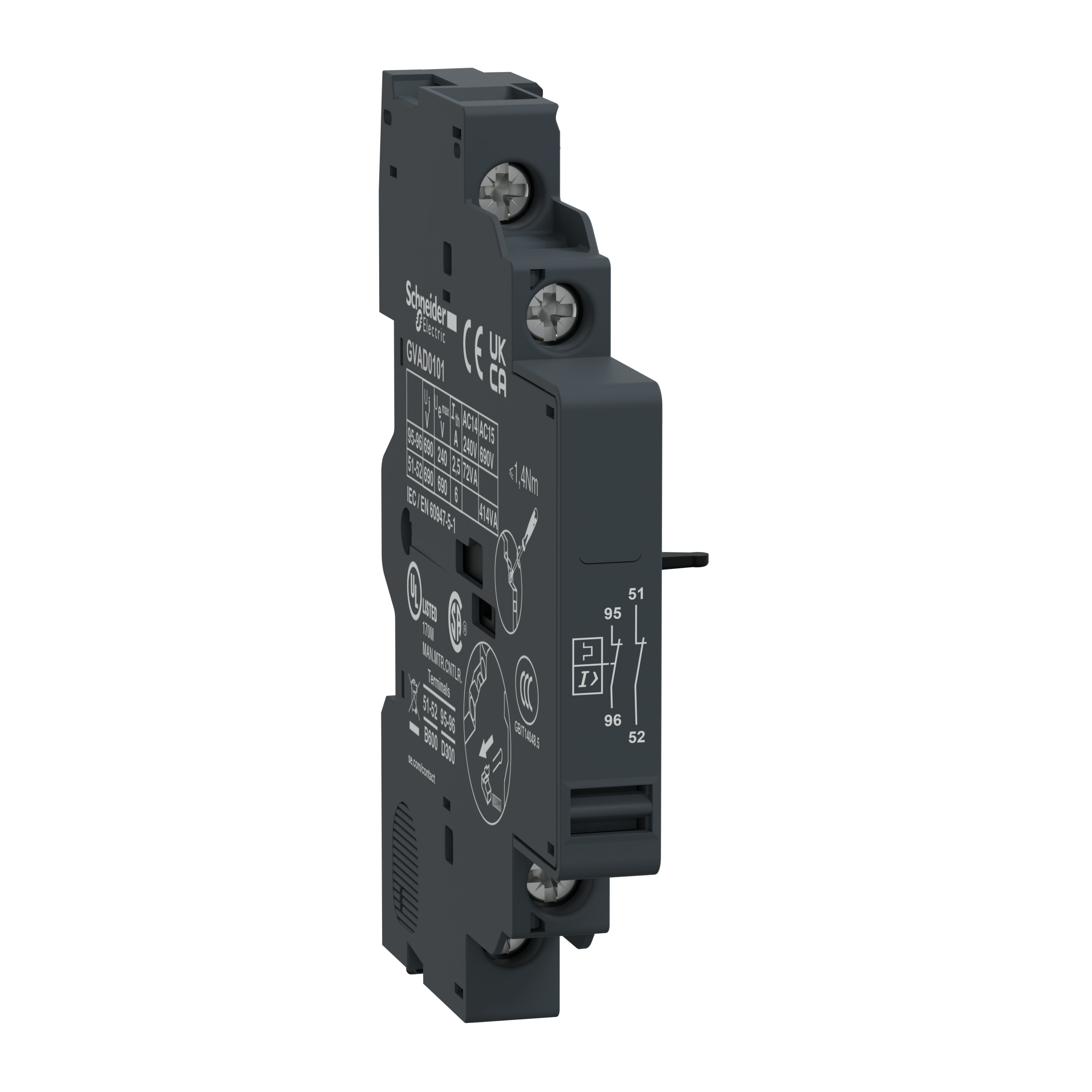

GVAD0101 – TeSys GV2 & GV3 – auxiliary contact – 1 NC + 1 NC (fault) | Schneider Electric
Order code
List R433.00 Your price R294.44
Per unit · volume pricing available on request
excl. VAT R338.61 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
TeSys GV2 & GV3 – auxiliary contact – 1 NC + 1 NC (fault) — Schneider Electric order code GVAD0101. Rated current 6 A; rated voltage 690 V.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
View on the Schneider Electric site (opens in a new tab)
Select a variant in this series
Rating6 A2 options
- 6 A
- 10 A
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
GVAD0101 — TeSys GV2 & GV3 – auxiliary contact – 1 NC + 1 NC (fault), a motor protection circuit breaker by Schneider Electric. Listed under Motor Protection Circuit Breakers on the Schneider Electric catalogue at RMS-SE.Africa.
About GVAD0101
TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 1NC fault signaling contact + 1NC instantaneous auxiliary contact. Instantaneous auxiliary contact rated for operation up to 6A/690V AC and 6A/240V DC. Fault signaling contact rated for operation up to 2A/240V AC and 1A/60V DC. To be installed on left-hand side of the circuit breaker (1 block mounting maximum), connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
GVAD0101 key specifications
Key specifications: rated current 6 A; rated voltage 690 V.
Ordering information for GVAD0101
- Order code:
GVAD0101 - Manufacturer: Schneider Electric (formerly Telemecanique)
- Range: TeSys GV2
- GTIN / EAN: 3389110343526
- Supplied: each
- Weight: 0.046 kg
- ETIM class: EC000041
- Datasheet: manufacturer datasheet for GVAD0101
About the TeSys GV2 range
TeSys GV2 is a Schneider Electric range with 114 references listed on RMS-SE.Africa, from 1 A to 63 A. It spans Motor Protection Circuit Breakers, Contactors.
GVAD0101 — frequently asked questions
What is the rated current of GVAD0101?
GVAD0101 is rated 6 A.
Where is the datasheet for GVAD0101?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Schneider Electric publishes them.
Is GVAD0101 a genuine Schneider Electric product?
Yes. GVAD0101 is supplied through the manufacturer’s authorised channel with the standard Schneider Electric warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | Filter products by GVAD0101 – TeSys GV2 & GV3 – auxiliary contact – 1 NC + 1 NC (fault) Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by TeSys GV2 |
| GTIN / EAN | 3389110343526 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC000041 |
Electrical ratings
| Rated current (Iu) | Filter products by 6 A |
|---|---|
| Rated voltage (Ue) | Filter products by 690 V |
| Operating Voltage | Filter products by 690V |
Documents
| Datasheet | View on the Schneider Electric site |
|---|
Other specifications
| Related Categories | Filter products by Plug – in Relays, Filter products by Timers & Control Relays, Filter products by Motor Protection Circuit Breakers |
|---|---|
| SKU/Code/Partnumber | GVAD0101 |
| Iternational GTIN | 3389110343526 |
| Mount Type | Filter products by Plug-in |
