| Rated current (Iu) | Filter products by 73 A |
|---|---|
| Rated voltage (Ue) | Filter products by 690 V |
| Number of poles | Filter products by 3P |
| Max Break Capacity | Filter products by 50 kA |
| Product Series | Filter products by TeSys GV3 |
Schneider ElectricMotor Protection Circuit Breakers

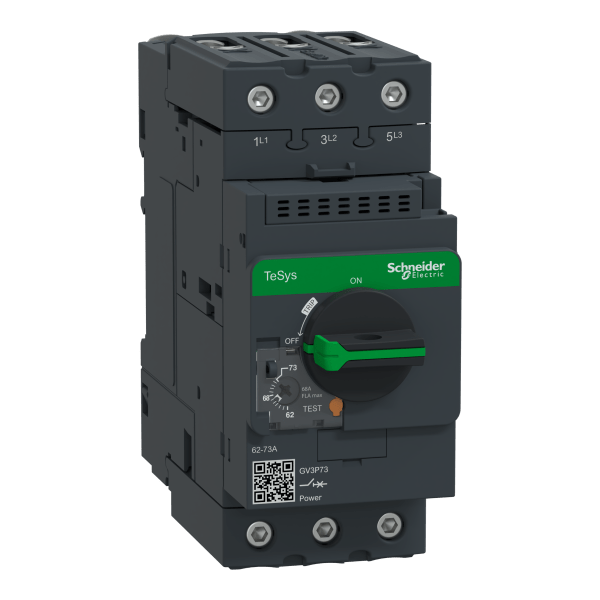

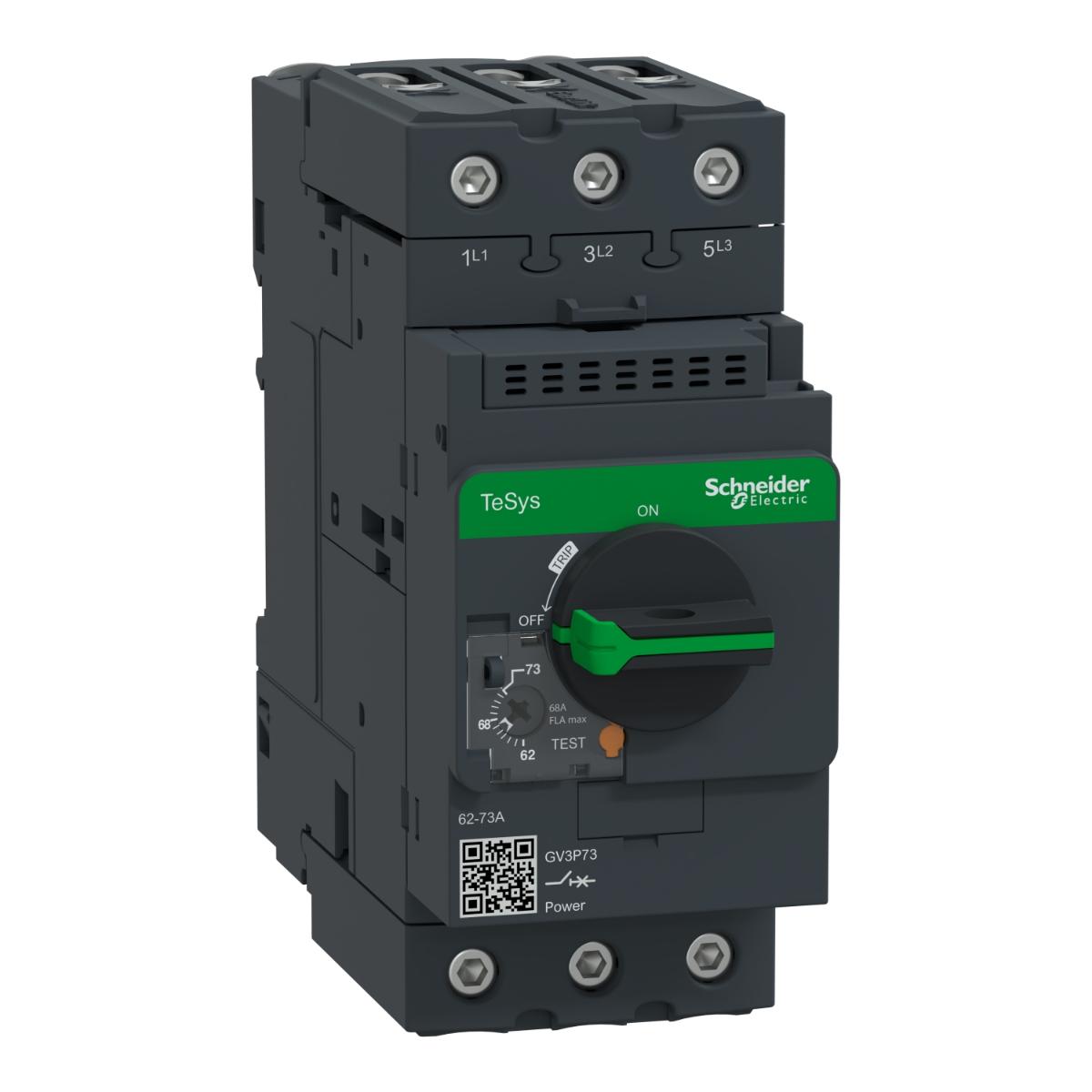

GV3P73 – TeSys GV3P thermal-magnet motor circuit breaker 62-73A EverLink | Schneider Electric
Order code
List R4 689.00 Your price R3 188.52
Per unit · volume pricing available on request
excl. VAT R3 666.80 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
TeSys GV3P thermal-magnet motor circuit breaker 62-73A EverLink — Schneider Electric order code GV3P73. Rated current 73 A; 3P; breaking capacity 50 kA; rated voltage 690 V.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
View on the Schneider Electric site (opens in a new tab)
Select a variant in this series
Breaking capacity50 kA2 options
- 50 kA
- 100 kA
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
GV3P73 — TeSys GV3P thermal-magnet motor circuit breaker 62-73A EverLink by Schneider Electric. Listed under Motor Protection Circuit Breakers on the Schneider Electric catalogue at RMS-SE.Africa.
About GV3P73
TeSys GV motor circuit breaker, 3 poles (3P), 73A/690V, for 3-phase motor applications 37kW@400V. It provides a thermal-magnetic protection with a thermal setting range 62-73A, magnetic tripping at 15xIn, high breaking capacity Icu 50kA@400V. Connection by Everlink BTR screw terminals. Start-stop control by rotary knob guaranteed for 20 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).
GV3P73 key specifications
Key specifications: rated current 73 A; 3P; breaking capacity 50 kA; rated voltage 690 V.
Ordering information for GV3P73
- Order code:
GV3P73 - Manufacturer: Schneider Electric
- Range: TeSys GV3
- GTIN / EAN: 3606481304513
- Supplied: each
- Weight: 1.008 kg
- ETIM class: EC000074
- Datasheet: manufacturer datasheet for GV3P73
About the TeSys GV3 range
TeSys GV3 is a Schneider Electric range with 22 references listed on RMS-SE.Africa, from 10 A to 80 A.
GV3P73 — frequently asked questions
What is the rated current of GV3P73?
GV3P73 is rated 73 A.
How many poles does GV3P73 have?
GV3P73 is a 3P device.
What is the breaking capacity of GV3P73?
The catalogue states 50 kA for GV3P73. Check the datasheet for the value at your system voltage.
Where is the datasheet for GV3P73?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Schneider Electric publishes them.
Is GV3P73 a genuine Schneider Electric product?
Yes. GV3P73 is supplied through the manufacturer’s authorised channel with the standard Schneider Electric warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | Filter products by GV3P73 – TeSys GV3P thermal-magnet motor circuit breaker 62-73A EverLink Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by TeSys GV3 |
| GTIN / EAN | 3606481304513 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC000074 |
Electrical ratings
| Number of poles | Filter products by 3P |
|---|---|
| Rated current (Iu) | Filter products by 73 A |
| Rated voltage (Ue) | Filter products by 690 V |
| Operating Voltage | Filter products by 690V |
| Max Break Capacity | Filter products by 50 kA |
Sensing & measurement
| Adjustment range | Filter products by 62 … 73 A |
|---|
Documents
| Datasheet | View on the Schneider Electric site |
|---|
Other specifications
| Breaking capacity icu | Filter products by 50 kA at 400 V |
|---|---|
| Rated power kw | Filter products by 37 kW at 400 V |
| Related Categories | Filter products by Plug – in Relays, Filter products by Timers & Control Relays, Filter products by Motor Protection Circuit Breakers |
| SKU/Code/Partnumber | Search products for GV3P73 |
| Iternational GTIN | 3606481304513 |
| Mount Type | Filter products by Plug-in |
