Schneider ElectricMotor Protection Circuit Breakers

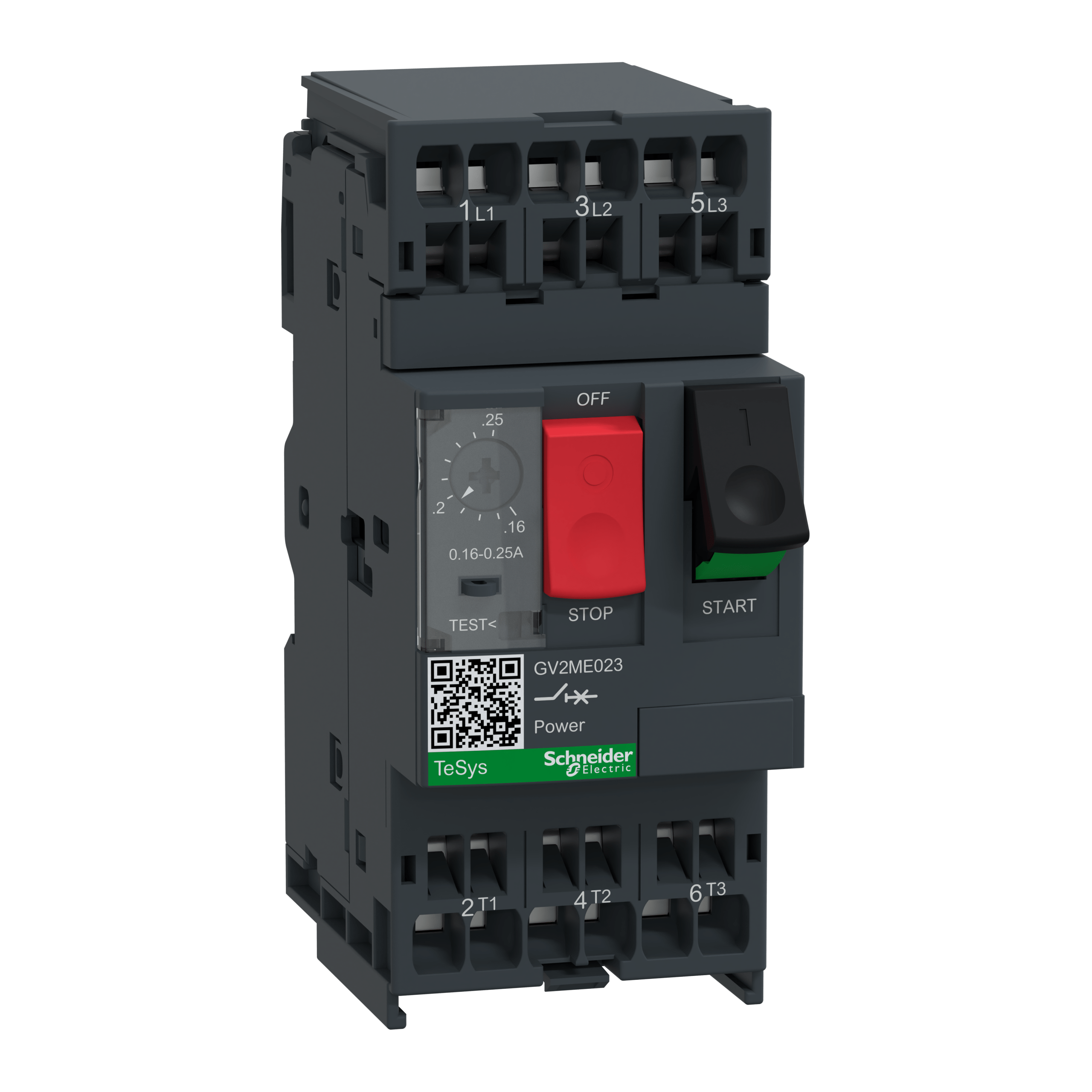

GV2ME023 – Motor circuit breaker, TeSys GV2, 3P, 0.16-0.25 A, thermal magnetic, spring terminals Schneider Electric
Order code
Select a variant in this series
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
R1 835.93
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Motor circuit breaker, TeSys GV2, 3P, 0.16-0.25 A, thermal magnetic, spring terminals — Schneider Electric order code GV2ME023. Rated current 25 A; 3P; breaking capacity 100 kA; rated voltage 690 V.
Accessories & add-ons 1
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
GV2ME023 — Motor circuit breaker, TeSys GV2, 3P, 0.16-0.25 A, thermal magnetic, spring terminals by Schneider Electric.
TeSys GV motor circuit breaker, 3 poles (3P), 0.25A/690V, for 3-phase motor applications 0.06kW@400V. It provides a thermal-magnetic protection with a thermal setting range 0.16-0.25A, magnetic tripping at 9xIn, high breaking capacity Icu 100kA@400V. Connection by spring terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).
Key specifications: rated current 25 A; 3P; breaking capacity 100 kA; rated voltage 690 V.
Ordering information
- Order code:
GV2ME023 - Manufacturer: Schneider Electric (formerly Telemecanique)
- Range: TeSys GV2
- GTIN / EAN: 3389110346350
- Supplied: each
- Weight: 0.262 kg
- ETIM class: EC000074
- Datasheet: manufacturer datasheet for GV2ME023
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
Electrical ratings
| Number of poles | Filter products by 3P |
|---|---|
| Rated current (Iu) | Filter products by 25 A |
| Rated voltage (Ue) | Filter products by 690 V |
| Operating Voltage | Filter products by 690V |
| Max Break Capacity | Filter products by 100 kA |
Other specifications
| Related Categories | Filter products by Plug – in Relays, Filter products by Timers & Control Relays, Filter products by Motor Protection Circuit Breakers |
|---|---|
| SKU/Code/Partnumber | Filter products by GV2ME023 |
| Iternational GTIN | Filter products by 3389110346350 |
| Mount Type | Filter products by Plug-in |
