Schneider ElectricMotor Protection Circuit Breakers

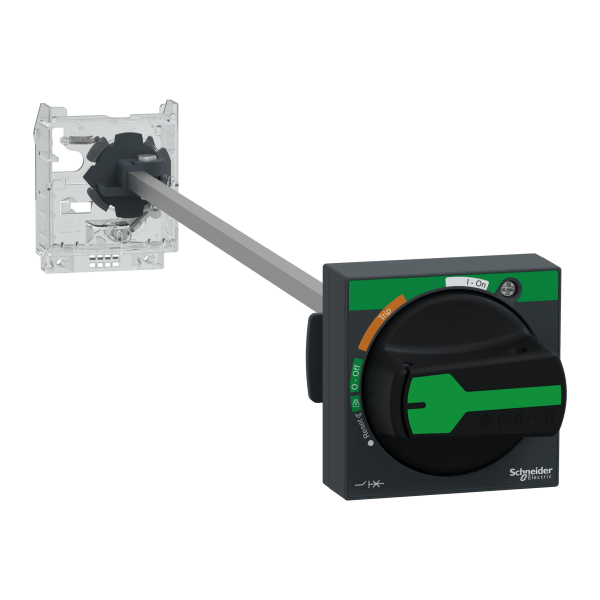

GV2APN01 – Extended rotary handle kit, TeSys GV2, IP54, black handle, with trip indication, for GV2L-GV2P | Schneider Electric
Order code
List R936.00 Your price R636.48
Per unit · volume pricing available on request
excl. VAT R731.95 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Extended rotary handle kit, TeSys GV2, IP54, black handle, with trip indication, for GV2L-GV2P — Schneider Electric order code GV2APN01. IP54.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
View on the Schneider Electric site (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
GV2APN01 — Extended rotary handle kit, TeSys GV2, IP54, black handle, with trip indication, for GV2L-GV2P, a motor protection circuit breaker by Schneider Electric. Listed under Motor Protection Circuit Breakers on the Schneider Electric catalogue at RMS-SE.Africa.
About GV2APN01
TeSys GV extended rotary handle, for motor circuit breakers GV2L, GV2P mounted inside an enclosure and to be operated externally. For main switch usage, it provides a black handle on grey front plate with indication of 3 positions OFF, ON, TRIP. To be mounted on the door of the enclosure, the handle mechanism ensures an IP54 protection to the mounting. It also includes a mounting adaptor to be screwed on the face of the circuit breaker, and an extension shaft to be be adjusted in length (distance between the door and the back of the circuit breaker must be in range 146-256mm). Padlockable in OFF or ON position with up to 3 padlocks (to be ordered separately). Locking in ON position does not prevent the circuit breaker from tripping (unlocking is required for fault reset). Green Premium compliant (RoHS/REACh).
GV2APN01 key specifications
Key specifications: IP54.
Ordering information for GV2APN01
- Order code:
GV2APN01 - Manufacturer: Schneider Electric
- Range: TeSys GV2
- GTIN / EAN: 3606480160936
- Supplied: each
- Weight: 0.349 kg
- ETIM class: EC000230
- Datasheet: manufacturer datasheet for GV2APN01
About the TeSys GV2 range
TeSys GV2 is a Schneider Electric range with 114 references listed on RMS-SE.Africa, from 1 A to 63 A. It spans Motor Protection Circuit Breakers, Contactors.
GV2APN01 — frequently asked questions
Where is the datasheet for GV2APN01?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Schneider Electric publishes them.
Is GV2APN01 a genuine Schneider Electric product?
Yes. GV2APN01 is supplied through the manufacturer’s authorised channel with the standard Schneider Electric warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | GV2APN01 – Extended rotary handle kit, TeSys GV2, IP54, black handle, with trip indication, for GV2L-GV2P Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by TeSys GV2 |
| GTIN / EAN | 3606480160936 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC000230 |
Environment & protection
| Degree of protection (IP) | Filter products by IP54 |
|---|
Documents
| Datasheet | View on the Schneider Electric site |
|---|
Other specifications
| Related Categories | Filter products by Plug – in Relays, Filter products by Timers & Control Relays, Filter products by Motor Protection Circuit Breakers |
|---|---|
| SKU/Code/Partnumber | Search products for GV2APN01 |
| Iternational GTIN | 3606480160936 |
| Mount Type | Filter products by Plug-in |
