Merlin GerinMoulded Case Circuit Breakers (MCCBs)

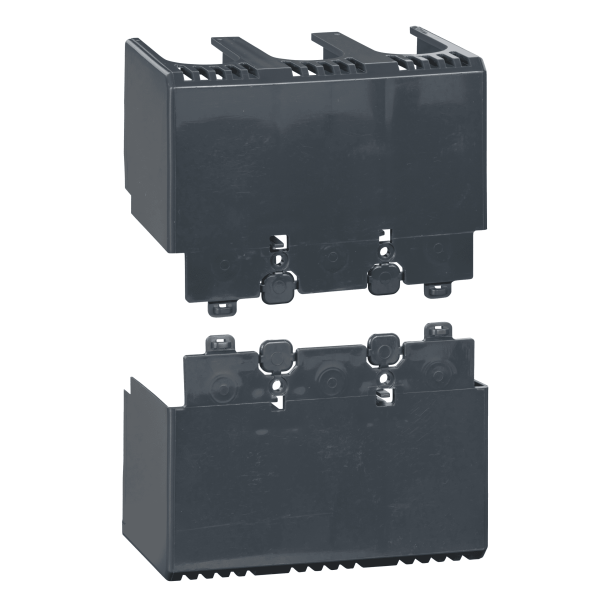

EZETSHD3PN – Terminal shield – 3 poles – for EZC250/EZCV250 – set of 2 | Schneider Electric
Order code
List R228.76 Your price R155.56
Per unit · volume pricing available on request
excl. VAT R178.89 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Terminal shield – 3 poles – for EZC250/EZCV250 – set of 2 — Schneider Electric order code EZETSHD3PN. 3P; IP20.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
View on the Schneider Electric site (opens in a new tab)
Select a variant in this series
RatingChoose24 options
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
EZETSHD3PN — Terminal shield – 3 poles – for EZC250/EZCV250 – set of 2, a moulded case circuit breaker from the Schneider Electric EasyPact EZC range. Listed under Moulded Case Circuit Breakers (MCCBs) on the Schneider Electric catalogue at RMS-SE.Africa.
About EZETSHD3PN
This is an insulation accessory that protects against direct contact with power circuit for 3 poles EasyPact EZC 250. It is used with front cable or isolated busbar connections. It can be mounted upstream and downstream of the device. It allows to reach the clearance distance requested by IEC 60947-2 standard. The depth is 68mm. It provides IP20 degree of protection and IK07 mechanical impact protection.
EZETSHD3PN key specifications
Key specifications: 3P; IP20.
Ordering information for EZETSHD3PN
- Order code:
EZETSHD3PN - Manufacturer: Schneider Electric (formerly Merlin Gerin)
- Range: EasyPact EZC
- GTIN / EAN: 3303431119479
- Supplied: each
- Weight: 0.14 kg
- ETIM class: EC002498
- Datasheet: manufacturer datasheet for EZETSHD3PN
About the EasyPact EZC range
EasyPact EZC is a Schneider Electric range with 188 references listed on RMS-SE.Africa, from 15 A to 600 A.
EZETSHD3PN — frequently asked questions
How many poles does EZETSHD3PN have?
EZETSHD3PN is a 3P device.
Where is the datasheet for EZETSHD3PN?
The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Schneider Electric publishes them.
Is EZETSHD3PN a genuine Schneider Electric product?
Yes. EZETSHD3PN is supplied through the manufacturer’s authorised channel with the standard Schneider Electric warranty, and every order is confirmed against stock before payment.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Product Name | Filter products by EZETSHD3PN – terminal shield – 3 poles – for EZC250/EZCV250 – set of 2 Schneider Electric |
|---|---|
| Brand | Filter products by Schneider Electric |
| Product Series | Filter products by EasyPact EZC |
| GTIN / EAN | 3303431119479 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC002498 |
Electrical ratings
| Number of poles | Filter products by 3P |
|---|
Environment & protection
| Degree of protection (IP) | Filter products by IP20 |
|---|
Documents
| Datasheet | View on the Schneider Electric site |
|---|
Other specifications
| Related Categories | Filter products by Metering, Filter products by Power Capacitors For PF Correction |
|---|---|
| SKU/Code/Partnumber | Search products for EZETSHD3PN |
| Iternational GTIN | 3303431119479 |
