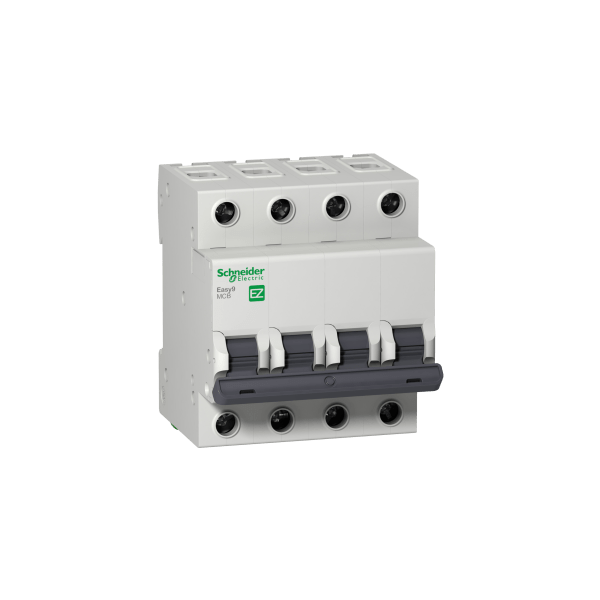

EZ9F53410 – Miniature circuit breaker, Easy9, 4P, 10 A, C curve, 3 kA Schneider Electric

EZ9F53410 – Miniature circuit breaker, Easy9, 4P, 10 A, C curve, 3 kA Schneider Electric This Easy9 product is a low voltage miniature circuit breaker (MCB). It is a 4P circuit breaker with 4 protected poles and 10A In rated current and C tripping curve. The Icu rated short circuit breaking capacity is up to 3kA at 400VAC conforming to EN/IEC 60898-1 standard. It is compliant with IEC 60898-1 standard. This product has a protection against short circuit and a protection of cable against overloads. It has a fault tripping indication on the front panel by the position of the handle (O-I engraved). This product is dedicated for residential and small commercial buildings. The mechanical endurance is going up to 10000 cycles and electrical endurance going up to 4000 cycles. The Ue operational voltage is 400VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail for modular installation. Its width is 8 pitches of 9mm. The product colour is light grey (RAL7035). The dimensions are (W) 72mm x (H) 81mm x (D) 66.5mm. The weight is 0.4kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -5°C to 60°C. The storage temperature is -40°C to 85°C. Miniature circuit breaker, Easy9, 4P, 10 A, C curve, 3 kA EZ9F53410 – Easy9 MCBs

EZ9F53410 – Miniature circuit breaker, Easy9, 4P, 10 A, C curve, 3 kA Schneider Electric is a Schneider Electric product designed for professional electrical, automation, and infrastructure applications.

This product forms part of the Miniature range and is suitable for installers, contractors, panel builders, maintenance teams, and buyers looking for reliable Schneider Electric components with proven performance and compatibility.

Technical Specifications

• Brand: Schneider Electric
• Series: Miniature
• Amperage: 10 A
• Voltage: 400VAC
• Poles: 4P
• IP Rating: IP20
• Breaking Capacity: 3 kA
• Mount Type: DIN Rail

Key Features

• Part of the Miniature range
• Rated at 10 A
• Suitable for 400VAC applications
• 4P configuration
• 3 kA breaking capacity
• IP20 ingress protection

Applications

• Industrial automation
• Commercial electrical installations
• Control and protection systems
• Infrastructure and maintenance projects
