EPH0400123 – Asfora – 1pole 2way switch -10AX screwless, cream | Schneider Electric

EPH0400123 — Asfora – 1pole 2way switch -10AX screwless, cream, a switches and socket outlet by Schneider Electric. Listed under Switches & Socket Outlets on the Schneider Electric catalogue at RMS-SE.Africa.

About EPH0400123

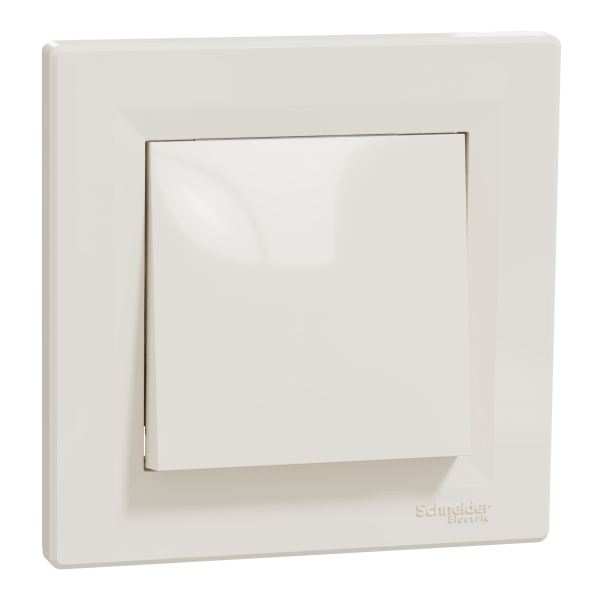

Schneider Electric Asfora switch EPH0400123 is a complete product in color cream with 1 rocker. This is a 1-pole 2-way switch. The device's fixing mode is screws or claws. And the rated current of this switch is 10AX, whose power range is 2300W. 83 mm, 83 mm and 43 mm are the width, height and depth respectively, and its projecting depth is 15 mm. What's more, flush mounting is available so that its box can be installed into the surface. The surface finish is glossy, which ensures a bright, even an inviting finish. And it reaches IP20 degree of protection too. Its connection terminals are screwless terminals. The switch is made of ABS (acrylonitrile butadiene-styrene), making it as resistant as possible. With conductor material of copper, this switch is quite resistant. It obtained NF, TSE, VDE certificates as well. This switch meets the standard of IEC 60669-1. Also, it has the quality label of CE, UKR. What's more, this switch is qualified as a green premium product. And it is mercury free, taking care of the environment and your health all the time. The updated Asfora switches now feature smaller, more compact inserts, a profiled fixing frame, improved wire inlets and release buttons, and wide, profiled claws with a return spring, improving the quality and functionality of this switch. Asfora products are made from high-quality materials that won't yellow over time.

EPH0400123 key specifications

Key specifications: 1P; IP20; flush mounting.

Ordering information for EPH0400123

• Order code: EPH0400123
• Manufacturer: Schneider Electric
• Range: Asfora
• GTIN / EAN: 3606480525094
• Supplied: each
• Weight: 0.071 kg
• ETIM class: EC001590
• Datasheet: manufacturer datasheet for EPH0400123

About the Asfora range

Asfora is a Schneider Electric range with 60 references listed on RMS-SE.Africa, from 10 A to 16 A.

EPH0400123 — frequently asked questions

How many poles does EPH0400123 have?

EPH0400123 is a 1P device.

Where is the datasheet for EPH0400123?

The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Schneider Electric publishes them.

Is EPH0400123 a genuine Schneider Electric product?

Yes. EPH0400123 is supplied through the manufacturer’s authorised channel with the standard Schneider Electric warranty, and every order is confirmed against stock before payment.
