EPH0100123 – Asfora – 1pole switch – 10AX screwless, cream | Schneider Electric

EPH0100123 — Asfora – 1pole switch – 10AX screwless, cream, a switches and socket outlet by Schneider Electric. Listed under Switches & Socket Outlets on the Schneider Electric catalogue at RMS-SE.Africa.

About EPH0100123

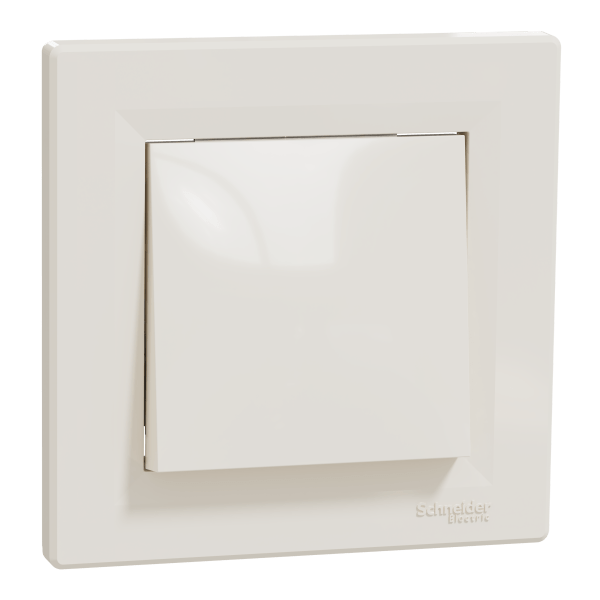

Schneider Electric Asfora switch EPH0100123 is a complete product in color cream with 1 rocker. This is a 1-pole 1-way switch. Its fixing mode is screws or claws. And it's rated current is 10AX, whose power range is 2300W. The switch is 83 mm in width, 83 mm in height and 43 mm in depth, with a projecting depth of 15 mm. Flush mounting is available so that its box can be recessed into the surface. The surface finish is glossy, delivering an elegant and high-end feeling to a room. Being reliable and resistant enough, it reaches IP20. The connection terminals of this switch are screwless terminals. The switch is made of ABS (acrylonitrile butadiene-styrene), making it as resistant as possible. With conductor material of copper, this switch is quite resistant. It obtained NF, TSE, VDE certificates as well. The device satisfies the standard of IEC 60669-1 too. Also, it has the quality label of CE, UKR. Being environmentally friendly, this switch is a green premium product too. And it is mercury free, taking care of the environment and your health all the time. The updated Asfora switches now feature smaller, more compact inserts, a profiled fixing frame, improved wire inlets and release buttons, and wide, profiled claws with a return spring, improving the quality and functionality of this switch. Asfora products are made from high-quality materials that won't yellow over time.

EPH0100123 key specifications

Key specifications: 1P; IP20; flush mounting.

Ordering information for EPH0100123

• Order code: EPH0100123
• Manufacturer: Schneider Electric
• Range: Asfora
• GTIN / EAN: 3606480524851
• Supplied: each
• Weight: 0.071 kg
• ETIM class: EC001590
• Datasheet: manufacturer datasheet for EPH0100123

About the Asfora range

Asfora is a Schneider Electric range with 60 references listed on RMS-SE.Africa, from 10 A to 16 A.

EPH0100123 — frequently asked questions

How many poles does EPH0100123 have?

EPH0100123 is a 1P device.

Where is the datasheet for EPH0100123?

The manufacturer datasheet is linked under “Ordering information” above; the product page also carries the manufacturer’s documents where Schneider Electric publishes them.

Is EPH0100123 a genuine Schneider Electric product?

Yes. EPH0100123 is supplied through the manufacturer’s authorised channel with the standard Schneider Electric warranty, and every order is confirmed against stock before payment.
