| Rated current (Iu) | Filter products by 10A |
|---|---|
| Rated voltage (Ue) | Filter products by 690 V |
| Product Series | Filter products by TeSys |
Schneider Electric3 Industry General PurposeContactorsGeneral Purpose

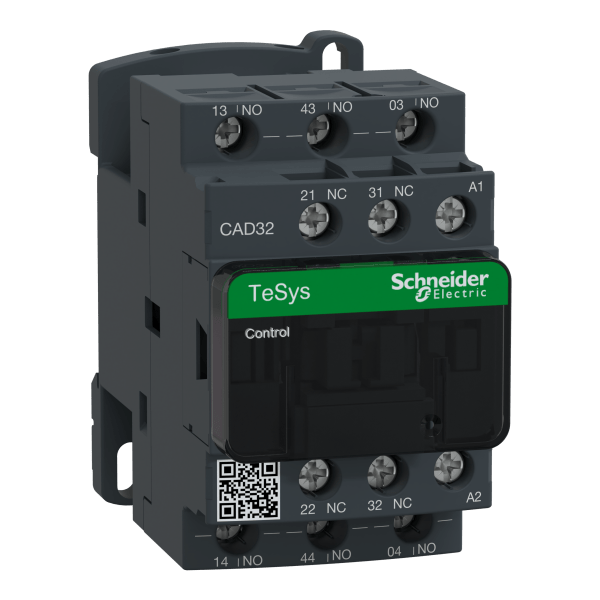

CAD32F7 – TeSys D control relay – 3 NO + 2 NC – <= 690 V – 110 V AC standard coil Schneider Electric
Order code
Original price was: R716.00.R486.88Current price is: R486.88.
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Schneider Electric – TeSys D control relay – 3 NO + 2 NC – <= 690 V - 110 V AC standard coil - TeSys k, d, SK (auxiliary contactors) | CAD32F7
Accessories & add-ons 8
- Harmony, Solid state modular relay, 25 A, DIN rail mount, random switching, input 4…32 V DC, output 48…600 V AC Schneider ElectricSSM3A325BDRR8 063.05Add
- Harmony, Solid state modular relay, 25 A, DIN rail mount, zero voltage switching, input 4…32 V DC, output 48…600 V AC Schneider ElectricSSM3A325BDR7 928.98Add
- Harmony, Solid state modular relay, 12 A, DIN rail mount, zero voltage switching, input 4…32 V DC, output 48…600 V AC Schneider ElectricSSM1A312BD Original price was: R713.00.R484.84Current price is: R484.84.Add
- Harmony, Solid state modular relay, 6 A, DIN rail mount, zero voltage switching, input 4…32 V DC, output 48…600 V AC Schneider ElectricSSM1A36BDR1 267.93Add
- Harmony, Solid state modular relay, 12 A, DIN rail mount, zero voltage switching, input 200…265 V AC, output 24…280 V AC Schneider ElectricSSM1A112P7 Original price was: R985.00.R669.80Current price is: R669.80.Add
- Harmony, Solid state modular relay, 12 A, DIN rail mount, zero voltage switching, input 4…32 V DC, output 24…280 V AC Schneider ElectricSSM1A112BDR781.77Add
- Harmony, Miniature plug-in relay, 3 A, 4 CO, with LED, 24 V DC Schneider ElectricRXM4LB2BD Original price was: R115.00.R78.20Current price is: R78.20.Add
- Harmony, Miniature plug-in relay, 3 A, 4 CO, with LED, 120 V AC Schneider ElectricRXM4LB2F7R130.83Add
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery nationwide, and export across Africa.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
CAD32F7 – TeSys D control relay – 3 NO + 2 NC – <= 690 V - 110 V AC standard coil Schneider Electric TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 110V 50/60Hz AC control circuit, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh). TeSys D control relay - 3 NO + 2 NC - <= 690 V - 110 V AC standard coil CAD32F7 - TeSys k, d, SK (auxiliary contactors)
CAD32F7 – TeSys D control relay – 3 NO + 2 NC – <= 690 V – 110 V AC standard coil Schneider Electric is a Schneider Electric product designed for professional electrical, automation, and infrastructure applications.
This product forms part of the TeSys range and is suitable for installers, contractors, panel builders, maintenance teams, and buyers looking for reliable Schneider Electric components with proven performance and compatibility.
Technical Specifications
- Brand: Schneider Electric
- Series: TeSys
- Amperage: 10A
- Voltage: 690 V
- Mount Type: DIN Rail
Key Features
- Part of the TeSys range
- Rated at 10A
- Suitable for 690 V applications
- DIN Rail installation format
Applications
- Industrial automation
- Commercial electrical installations
- Control and protection systems
- Infrastructure and maintenance projects
Browse Related Categories
Timers & Control Relays | Plug – in Relays
Explore genuine Schneider Electric solutions for dependable installation quality, long service life, and compatibility across related systems and accessories.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
Electrical ratings
| Rated current (Iu) | Filter products by 10A |
|---|---|
| Rated voltage (Ue) | Filter products by 690 V |
| Rated operational voltage | Filter products by 690 V |
| Operating Voltage | Filter products by 690 V |
Other specifications
| Related Categories | Filter products by Plug – in Relays, Filter products by Timers & Control Relays |
|---|---|
| SKU/Code/Partnumber | Filter products by CAD32F7 |
| Iternational GTIN | Filter products by 3389110534276 |
| Mount Type | Filter products by DIN Rail |
Accessories & add-ons
SSM3A325BDRHarmony, Solid state modular relay, 25 A, DIN rail mount, random switching, input 4…32 V DC, output 48…600 V AC Schneider ElectricR8 063.05View product- SSM3A325BDHarmony, Solid state modular relay, 25 A, DIN rail mount, zero voltage switching, input 4…32 V DC, output 48…600 V AC Schneider ElectricR7 928.98View product
SSM1A312BDHarmony, Solid state modular relay, 12 A, DIN rail mount, zero voltage switching, input 4…32 V DC, output 48…600 V AC Schneider Electric Original price was: R713.00.R484.84Current price is: R484.84.View product
SSM1A36BDHarmony, Solid state modular relay, 6 A, DIN rail mount, zero voltage switching, input 4…32 V DC, output 48…600 V AC Schneider ElectricR1 267.93View product- SSM1A112P7Harmony, Solid state modular relay, 12 A, DIN rail mount, zero voltage switching, input 200…265 V AC, output 24…280 V AC Schneider Electric Original price was: R985.00.R669.80Current price is: R669.80.View product
- SSM1A112BDHarmony, Solid state modular relay, 12 A, DIN rail mount, zero voltage switching, input 4…32 V DC, output 24…280 V AC Schneider ElectricR781.77View product
RXM4LB2BDHarmony, Miniature plug-in relay, 3 A, 4 CO, with LED, 24 V DC Schneider Electric Original price was: R115.00.R78.20Current price is: R78.20.View product- RXM4LB2F7Harmony, Miniature plug-in relay, 3 A, 4 CO, with LED, 120 V AC Schneider ElectricR130.83View product
Similar items
ZBRT1Harmony XB4, Transmitter for wireless and batteryless push button, plastic, black Schneider Electric Original price was: R712.00.R484.16Current price is: R484.16.View product
ZBY9W2B101ILLUMINATED LEGEND RING 24V 1 COLOR RED FIXED LED UNMARKED YELLOW LABEL Schneider ElectricR479.41View product
ZBE102GEXContact block, Harmony XB4, Explosive atmosphere, NC Schneider Electric Original price was: R668.00.R454.24Current price is: R454.24.View product
ZBY9W2G140Harmony, Illuminated ring Ø60, plastic, yellow, red fixed integral LED, unmarked, 110…120 V AC Schneider ElectricR531.24View product
ZBY9W2G330Harmony, Illuminated ring Ø60, plastic, yellow, red fixed integral LED, marked EMERGENCY STOP, 110…120 V AC Schneider ElectricR531.24View product- ZBY9W2M101ILLUMINATED LEGEND RING 230V 1 COLOR RED FIXED LED UNMARKED YELLOW LABEL Schneider ElectricR550.68View product
ZBRM01Control station – SPS – empty – 1 hole – dark grey RAL 7016 Original price was: R602.00.R409.36Current price is: R409.36.View product
ZB6YF02Harmony XB6E, Fast connector socket for IPB, 2 NO/NCR384.57View product
More in 3 Industry General Purpose
ZBZ60Harmony XB4, Protective boot for contact blocks, plastic, black Schneider ElectricR1 411.69View product- ZBY9W2B330Harmony, Illuminated ring Ø60, plastic, yellow, red fixed integral LED, marked EMERGENCY STOP, 24 V AC/DC Original price was: R370.00.R251.60Current price is: R251.60.View product
- ZBY9W2B140Harmony, Illuminated ring Ø60, plastic, yellow, red fixed integral LED, unmarked, 24 V AC/DC Original price was: R370.00.R251.60Current price is: R251.60.View product
ZBY9420Harmony XB4, Legend, plastic, yellow, Ø90, for emergency stop, marked PARADA DE EMERGENCIA with logo ISO13851R96.92View product
ZBY9320Harmony XB4, Legend holder Ø60 for emergency stop, plastic, yellow, marked EMERGENCY STOP Schneider Electric Original price was: R64.00.R43.52Current price is: R43.52.View product
ZBVBM3GEXLight block, Harmony XB4, Explosive atmosphere, Green LED 24 240 V Schneider ElectricR1 874.78View product
ZBY9121Harmony XB4, Legend holder Ø60 for emergency stop switching off push button, plastic, yellow, unmarkedR68.67View product- ZBVBM1GEXLight block, Harmony XB4, Explosive atmosphere, white LED 24 240 V Schneider ElectricR1 874.78View product
Alternatives on our other RMS storefronts
RMS supplies each manufacturer range from its own storefront. These links open a different RMS site in a new tab.
- Comparable rangeAF contactor range at RMS-ABB.Africa (opens in a new tab)
- Comparable rangeLovato BF contactor range at RMS-EM.Africa (opens in a new tab)
Quick answers
What is CAD32F7?
CAD32F7 is the order code for CAD32F7 – TeSys D control relay – 3 NO + 2 NC – <= 690 V – 110 V AC standard coil Schneider Electric. It belongs to our 3 Industry General Purpose range. RMS-SE.Africa supplies it as an authorised Schneider Electric distributor, so it is genuine product with the manufacturer's warranty.
Is it available?
It is listed as in stock. Availability is re-confirmed on every order before any payment is taken, so what you order is what actually ships.
How do I get a formal quotation?
Use "Add to quote" and submit the quote basket. The RMS team prices every line, confirms stock, and emails you a formal quotation with written lead times — and you can accept it online to turn it into an order.
Do I pay when I order?
No. Checkout submits the order without payment; we confirm stock for every line first, then email you a secure payment link for the order.
