Schneider ElectricMoulded Case Circuit Breakers (MCCBs)
C4032D250 – Trip unit MicroLogic 2.3 for ComPacT NSX 400/630 circuit breakers, electronic, rating 250A, 3 poles 3d | Schneider Electric
Order code
Select a variant in this series
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Trip unit MicroLogic 2.3 for ComPacT NSX 400/630 circuit breakers, electronic, rating 250A, 3 poles 3d — Schneider Electric order code C4032D250.
Download datasheet (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
C4032D250 — Trip unit MicroLogic 2.3 for ComPacT NSX 400/630 circuit breakers, electronic, rating 250A, 3 poles 3d by Schneider Electric. Listed under Moulded Case Circuit Breakers (MCCBs) on the Schneider Electric catalogue at RMS-SE.Africa.
About C4032D250

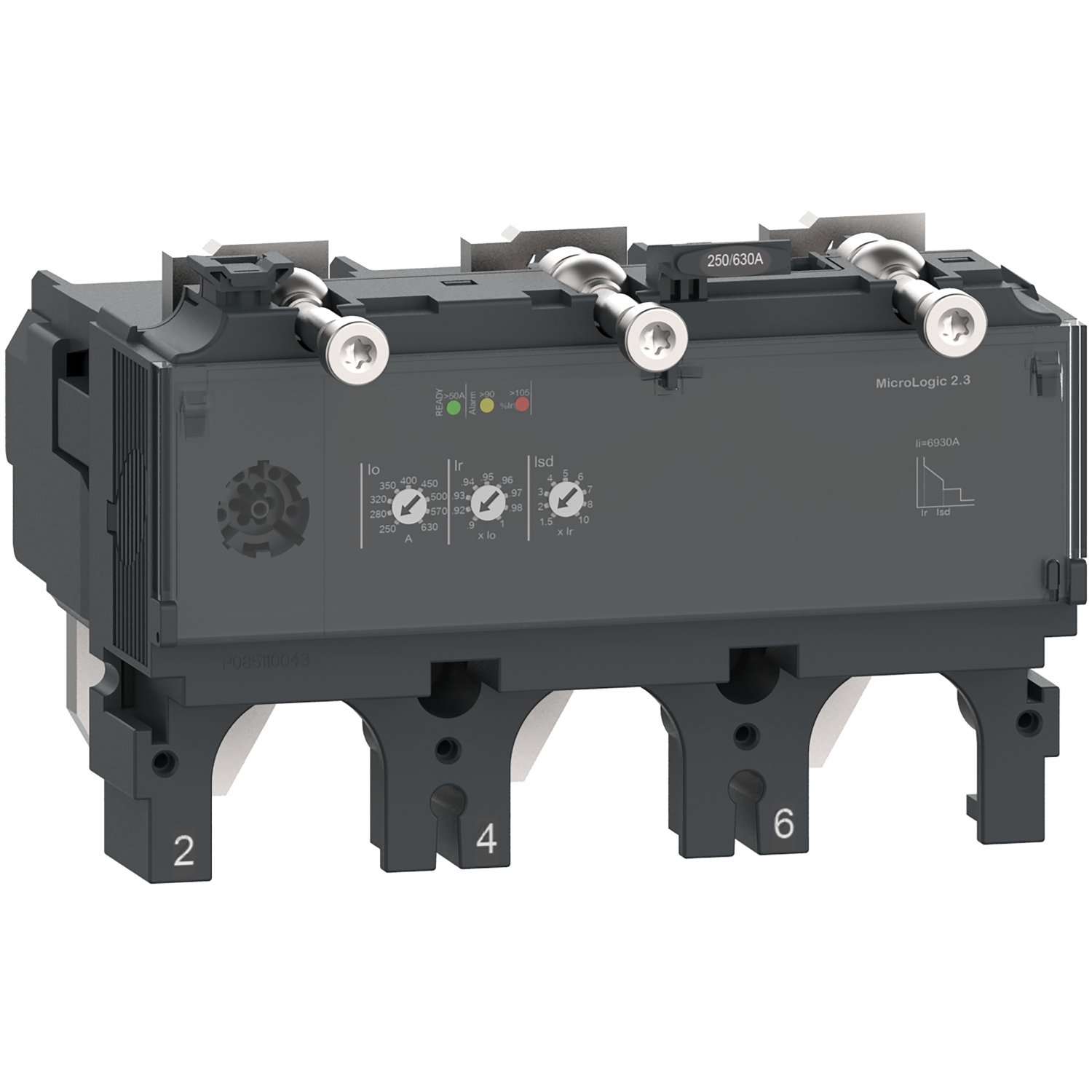

This MicroLogic 2.3 is a 3 poles 3d electronic trip unit used on ComPacT NSX 400/630 circuit breakers. This 250A rating electronic trip unit is an optimum choice for all standard and specific applications. It embeds an adjustable long time protection against overloads. It provides also an adjustable short-time protection and a fixed instantaneous protection against short-circuits. MicroLogic 2.3 indicates overloads with Alarm LEDs. The green Ready LED flashes if the circuit breaker is ready to trip. This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame.
C4032D250 key specifications
number of poles 3P 3d; rated current 250 A.
Ordering information for C4032D250
- Order code:
C4032D250 - Manufacturer: Schneider Electric
- Range: ComPacT NSX (2021)
- GTIN / EAN: 3606482003019
- ETIM class: EC000617
- Datasheet: manufacturer datasheet for C4032D250
Prices in ZAR excluding VAT; stock and lead time are confirmed on every written quotation from RMS Measurement & Control, Johannesburg.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Brand | Filter products by Schneider Electric |
|---|---|
| GTIN / EAN | Filter products by 3606482003019 |
| Range | Filter products by ComPacT NSX (2021) |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC000617 |
Electrical ratings
| Number of poles | Filter products by 3P 3d |
|---|---|
| Rated current (Iu) | Filter products by 250 A |
Documents
| Datasheet | Download datasheet |
|---|
Other specifications
| SKU/Code/Partnumber | Filter products by C4032D250 |
|---|
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
