Schneider ElectricProgrammable Logic Controllers (PLC)
BMEXBP0800 – Rack X80 – 8 slots – Ethernet backplane | Schneider Electric
Order code
List R6 714.55 Your price R4 565.89
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order

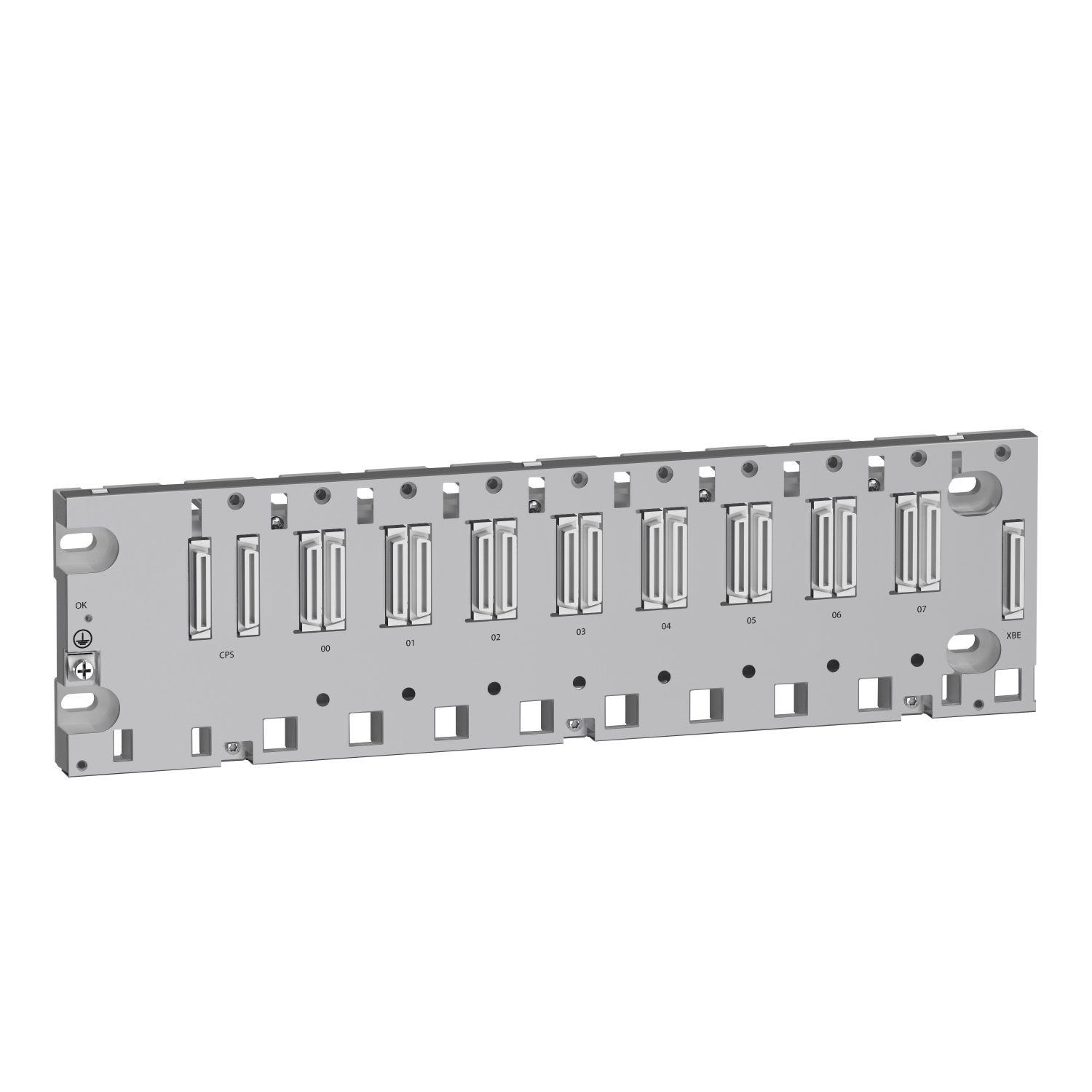

Rack X80 – 8 slots – Ethernet backplane — Schneider Electric order code BMEXBP0800.
Download datasheet (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
BMEXBP0800 — Rack X80 – 8 slots – Ethernet backplane by Schneider Electric. Listed under Programmable Logic Controllers (PLC) on the Schneider Electric catalogue at RMS-SE.Africa.
About BMEXBP0800
This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This Ethernet backplane rack is an accessory of programmable automation controllers. This 8-slot dual Ethernet and X-bus backplane provides 8 slots with 8 Ethernet and X-bus connectors for mixed modules. This product is robust, high quality and based on the latest innovative technology. It is an Ethernet backplane rack with a current of 164mA at 24V DC and 64mA at 3.3V DC. It is furnished with 1 connector (XBE) expansion module for electrical connection. It offers 1700000 hours of MTBF. It is an IP20 rated product. It weighs 1.06kg. It is suitable for medium to large process applications. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This Ethernet backplane rack is compatible with specific application module, I/O module, BMXCPS power supply, BMX processor and BME processor. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).
Ordering information for BMEXBP0800
- Order code:
BMEXBP0800 - Manufacturer: Schneider Electric
- Range: Modicon X80
- GTIN / EAN: 3595864174068
- ETIM class: EC000810
- Datasheet: manufacturer datasheet for BMEXBP0800
Prices in ZAR excluding VAT; stock and lead time are confirmed on every written quotation from RMS Measurement & Control, Johannesburg.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Brand | Filter products by Schneider Electric |
|---|---|
| GTIN / EAN | Filter products by 3595864174068 |
| Range | Filter products by Modicon X80 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC000810 |
Documents
| Datasheet | Download datasheet |
|---|
Other specifications
| SKU/Code/Partnumber | Filter products by BMEXBP0800 |
|---|
