BMEP585040 – Processor module, Modicon M580, Level 5, Remote | Schneider Electric
Order code
List R266 144.63 Your price R180 978.35
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order

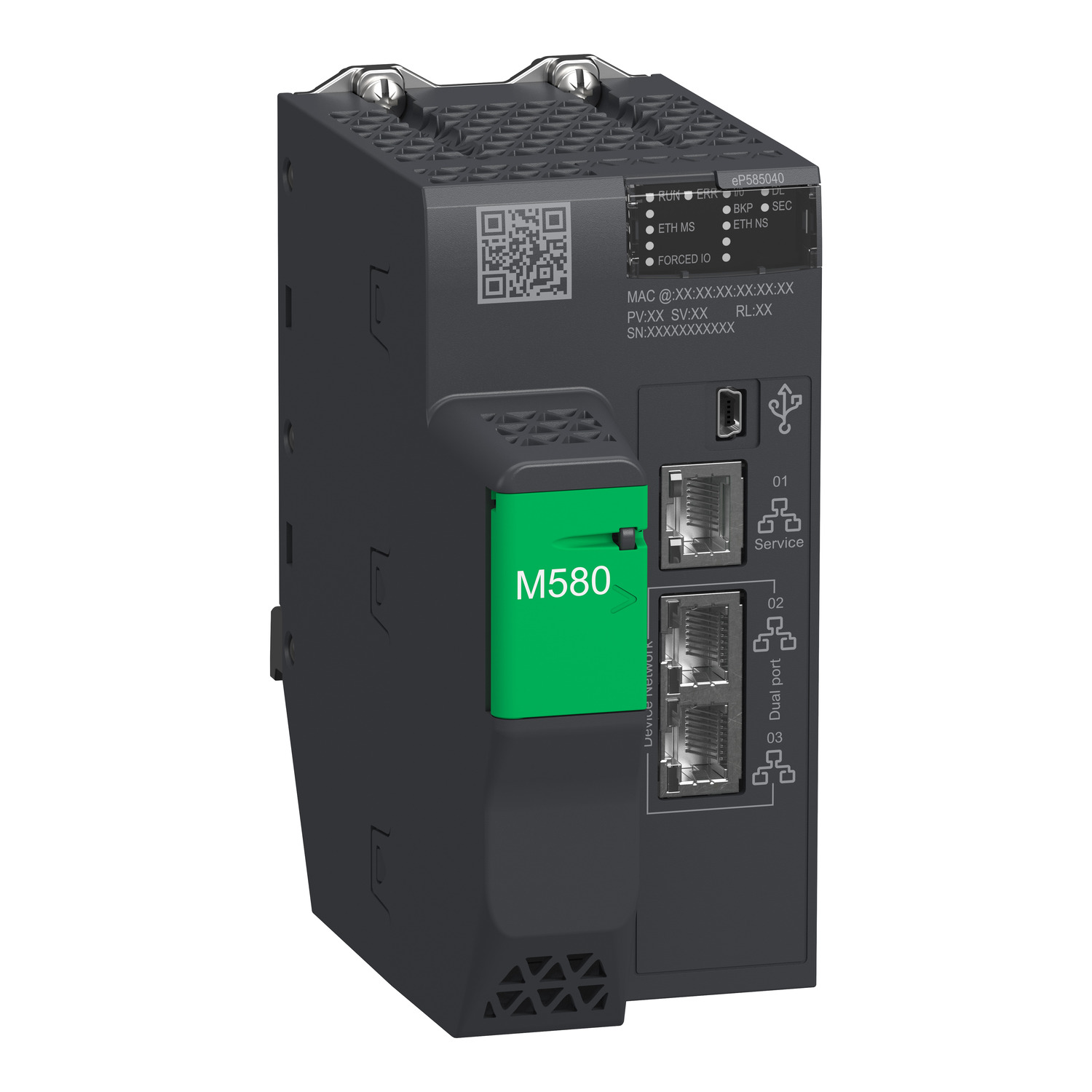

Processor module, Modicon M580, Level 5, Remote — Schneider Electric order code BMEP585040.
Download datasheet (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
BMEP585040 — Processor module, Modicon M580, Level 5, Remote by Schneider Electric. Listed under Programmable Logic Controllers (PLC) on the Schneider Electric catalogue at RMS-SE.Africa.
About BMEP585040
This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This processor module offers a maximum of 8 rack configuration and 180 application specific channels. It is a processor module with a current consumption of 295mA at 24V DC. It supports 5120 discrete, 1280 analogue local I/O channels and 64 distributed equipment. It is integrated with Ethernet TCP/IP for service port, 2 Ethernet TCP/IP for device network, Ethernet for HSBY port and USB type mini B for connections. It offers 600000 hours of MTBF. It has 31 – 2 racks per remote drop for I/O station. It has an integrated RAM of 24MB for program, 4096kb for data, 10kb for system memory and expandable flash of 4GB for data storage. It is an IP20 rated product. It weighs 0.849kg. It is suitable for medium to large process applications. This product is certified by CE, Merchant Navy, UL, RCM, CSA, EAC. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. The benefits of Modicon M580 are reduce time to market, improve reliability and sustainability, improve productivity with high performance and increase operating profitability due to improved access to data.
Ordering information for BMEP585040
- Order code:
BMEP585040 - Manufacturer: Schneider Electric
- Range: Modicon M580
- GTIN / EAN: 3606485440033
- ETIM class: EC000236
- Datasheet: manufacturer datasheet for BMEP585040
Prices in ZAR excluding VAT; stock and lead time are confirmed on every written quotation from RMS Measurement & Control, Johannesburg.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Brand | Filter products by Schneider Electric |
|---|---|
| GTIN / EAN | Filter products by 3606485440033 |
| Range | Filter products by Modicon M580 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC000236 |
Documents
| Datasheet | Download datasheet |
|---|
Other specifications
| SKU/Code/Partnumber | Filter products by BMEP585040 |
|---|
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
