Schneider ElectricProgrammable Logic Controllers (PLC)
BMEP582040H – Processor module, Modicon M580, Level 2, Remote Harsh | Schneider Electric
Order code
List R101 274.75 Your price R68 866.83
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order

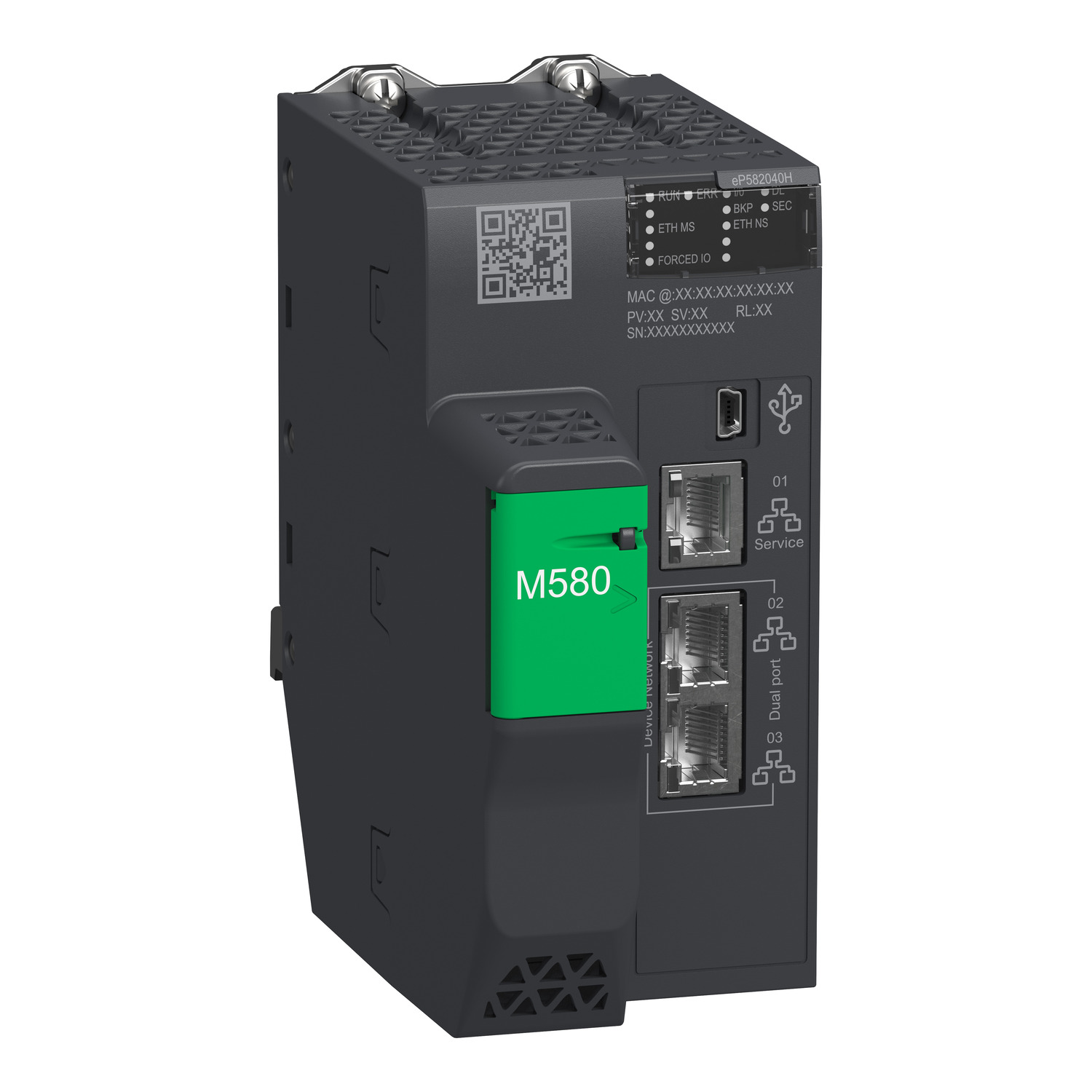

Processor module, Modicon M580, Level 2, Remote Harsh — Schneider Electric order code BMEP582040H.
Download datasheet (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
BMEP582040H — Processor module, Modicon M580, Level 2, Remote Harsh by Schneider Electric. Listed under Programmable Logic Controllers (PLC) on the Schneider Electric catalogue at RMS-SE.Africa.
About BMEP582040H
This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This processor module offers a maximum of 4 rack configuration and 72 application specific channels. It is a processor module with a current consumption of 270mA at 24V DC. It supports 2048 discrete, 512 analogue local I/O channels and 64 distributed equipment. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25C to +70C. It is integrated with Ethernet TCP/IP for service port, 2 Ethernet TCP/IP for device network, Ethernet for HSBY port and USB type mini B for connections. It offers 600000 hours of MTBF. It has 8 – 2 racks per remote drop for I/O station. It has an integrated RAM of 8MB for program, 768kb for data, 10kb for system memory and expandable flash of 4GB for data storage. It is an IP20 rated product. It weighs 0.849kg. It is suitable for medium to large process applications. This product is certified by UL, ATEX, IEC-Ex, CE, Merchant Navy, CSA, RCM and EAC. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. The benefits of Modicon M580 are reduce time to market, improve reliability and sustainability, improve productivity with high performance and increase operating profitability due to improved access to data.
Ordering information for BMEP582040H
- Order code:
BMEP582040H - Manufacturer: Schneider Electric
- Range: Modicon M580
- GTIN / EAN: 3595864174495
- ETIM class: EC000236
- Datasheet: manufacturer datasheet for BMEP582040H
Prices in ZAR excluding VAT; stock and lead time are confirmed on every written quotation from RMS Measurement & Control, Johannesburg.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Brand | Filter products by Schneider Electric |
|---|---|
| GTIN / EAN | Filter products by 3595864174495 |
| Range | Filter products by Modicon M580 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC000236 |
Documents
| Datasheet | Download datasheet |
|---|
Other specifications
| SKU/Code/Partnumber | Filter products by BMEP582040H |
|---|
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
