Schneider ElectricProgrammable Logic Controllers (PLC)
BMEH586040C – Redundant processor module, Modicon M580, HSBY Level 6, Remote Coated | Schneider Electric
Order code
List R309 288.36 Your price R210 316.08
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order

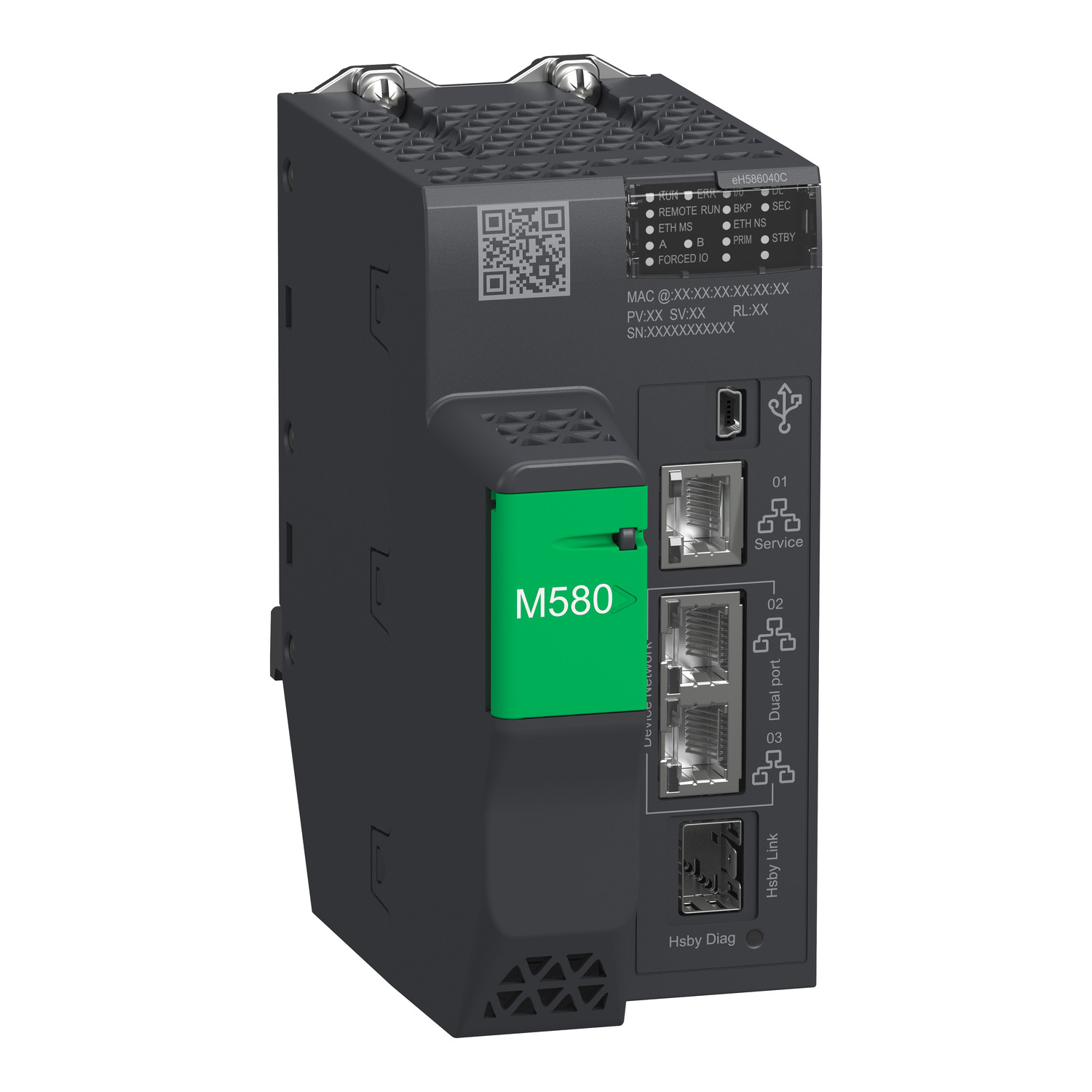

Redundant processor module, Modicon M580, HSBY Level 6, Remote Coated — Schneider Electric order code BMEH586040C.
Download datasheet (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
BMEH586040C — Redundant processor module, Modicon M580, HSBY Level 6, Remote Coated by Schneider Electric. Listed under Programmable Logic Controllers (PLC) on the Schneider Electric catalogue at RMS-SE.Africa.
About BMEH586040C
This product is part of the Modicon M580 range, an offer of Programmable Automation Controllers (PAC) and safety Programmable Logic Controllers (PLC) with built-in Ethernet. This redundant processor module offers a maximum of 1 rack configuration. It is a processor module with a current consumption of 295mA at 24V DC. It supports 64 distributed equipment. Thanks to a protective coating on its circuit board, this product can be used in harsh environments. It is integrated with Ethernet TCP/IP for service port, 2 Ethernet TCP/IP for device network, Ethernet for HSBY port and USB type mini B for connections. It offers 600000 hours of MTBF. It has 31 – 2 racks per remote drop for I/O station. It has an integrated RAM of 64MB for program and data, integrated RAM of 10kb for system memory and an expandable flash of 4GB for data storage. It is an IP20 rated product. It weighs 0.849kg. It is suitable for medium to large process applications. This product is certified by UL, ATEX, IEC-Ex, CE, Merchant Navy, CSA, RCM and EAC. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. The benefits of Modicon M580 are reduce time to market, improve reliability and sustainability, improve productivity with high performance and increase operating profitability due to improved access to data.
Ordering information for BMEH586040C
- Order code:
BMEH586040C - Manufacturer: Schneider Electric
- Range: Modicon M580
- GTIN / EAN: 3606485440026
- ETIM class: EC000236
- Datasheet: manufacturer datasheet for BMEH586040C
Prices in ZAR excluding VAT; stock and lead time are confirmed on every written quotation from RMS Measurement & Control, Johannesburg.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Brand | Filter products by Schneider Electric |
|---|---|
| GTIN / EAN | Filter products by 3606485440026 |
| Range | Filter products by Modicon M580 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC000236 |
Documents
| Datasheet | Download datasheet |
|---|
Other specifications
| SKU/Code/Partnumber | Filter products by BMEH586040C |
|---|
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
More in the Modicon M580 range
1 itemsSame series, same mounting and the same documentation set.
More in the Modicon M580 range
1 itemsSimilar items
8 items
Similar items
8 items
BMXSAI0410Analog input module X80 – 4 inputs – SafetyList R57 650.62 Your price R39 202.42View product
BMXSRA0405Discrete output module – 4 outputs – relay – SafetyList R55 685.24 Your price R37 865.96View product
BMXSDI1602Discrete input module – 16 inputs – 24 V DC positive – SafetyList R53 802.17 Your price R36 585.48View product
BMXP3420302Processor module, Modicon M340 automation platform, max 1024 discrete + 256 analog I/O, CANOpenList R42 270.07 Your price R28 743.65View product- BMXP342020HProcessor module, Modicon M340 automation platform, max 1024 discrete, 256 analog I/O, Modbus, Ethernet HList R41 769.32 Your price R28 403.14View product
BMXSDO0802Discrete output module – 8 outputs – solid state – 24 V DC positive – SafetyList R41 142.85 Your price R27 977.14View product- BMXP342020Processor module, Modicon M340 automation platform, max 1024 discrete, 256 analog I/O, Modbus, EthernetList R33 588.20 Your price R22 839.98View product
- BMXNOR0200HEthernet / Serial RTU module, 2 x RJ45List R32 911.39 Your price R22 379.75View product
More in Programmable Logic Controllers (PLC)
8 items
More in Programmable Logic Controllers (PLC)
8 items- BMXXTSHSC20Modicon M340 automation platform, one 10 pin + two 16 pin connectors, for counter moduleList R784.47 Your price R533.44View product
BMXXTSCPS20Modicon M340 automation platform, kit of 2 removable connectors, spring type, for power supply moduleList R529.78 Your price R360.25View product- BMXXTSCPS10Modicon M340 automation platform, kit of 2 removable connectors, cage clamp, for power supply moduleList R497.22 Your price R338.11View product
BMXXSP1200Shielding connection kit – for M340 rack – 12 slotsList R3 443.59 Your price R2 341.64View product
BMXXSP0800Shielding connection kit – for M340 rack – 8 slotsList R2 489.48 Your price R1 692.85View product- BMXXEM010Modicon M340 automation platform, protective cover, for unoccupied slots on rackList R1 436.24 Your price R976.64View product
BMXXBP1200HModicon M340 automation platform, ruggedized rack -12 slots, panel or plate mountingList R11 226.08 Your price R7 633.73View product- BMXXBP1200Modicon M340 automation platform, rack -12 slots, panel or plate mountingList R8 716.48 Your price R5 927.21View product
Alternatives on our other RMS storefronts
RMS supplies each manufacturer range from its own storefront. These links open a different RMS site in a new tab.
Quick answers
What is BMEH586040C?
BMEH586040C is the order code for Redundant processor module, Modicon M580, HSBY Level 6, Remote Coated. It belongs to our Programmable Logic Controllers (PLC) range. RMS-SE.Africa supplies it as genuine Schneider Electric product, sourced through the manufacturer's distribution channel.
Is it available?
It is listed as in stock. Availability is re-confirmed on every order before any payment is taken, so what you order is what actually ships.
How do I get a formal quotation?
Use "Add to quote" and submit the quote basket. The RMS team prices every line, confirms stock, and emails you a formal quotation with written lead times — and you can accept it online to turn it into an order.
Do I pay when I order?
No. Checkout submits the order without payment; we confirm stock for every line first, then email you a secure payment link for the order.
