Schneider ElectricProgrammable Logic Controllers (PLC)
ABR7S23 – Plug-in electromechanical relay – 10 mm – 24 V DC – 1 CO | Schneider Electric
Order code
List R137.01 Your price R93.17
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Plug-in electromechanical relay – 10 mm – 24 V DC – 1 CO — Schneider Electric order code ABR7S23.
Download datasheet (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
ABR7S23 — Plug-in electromechanical relay – 10 mm – 24 V DC – 1 CO by Schneider Electric. Listed under Programmable Logic Controllers (PLC) on the Schneider Electric catalogue at RMS-SE.Africa.
About ABR7S23

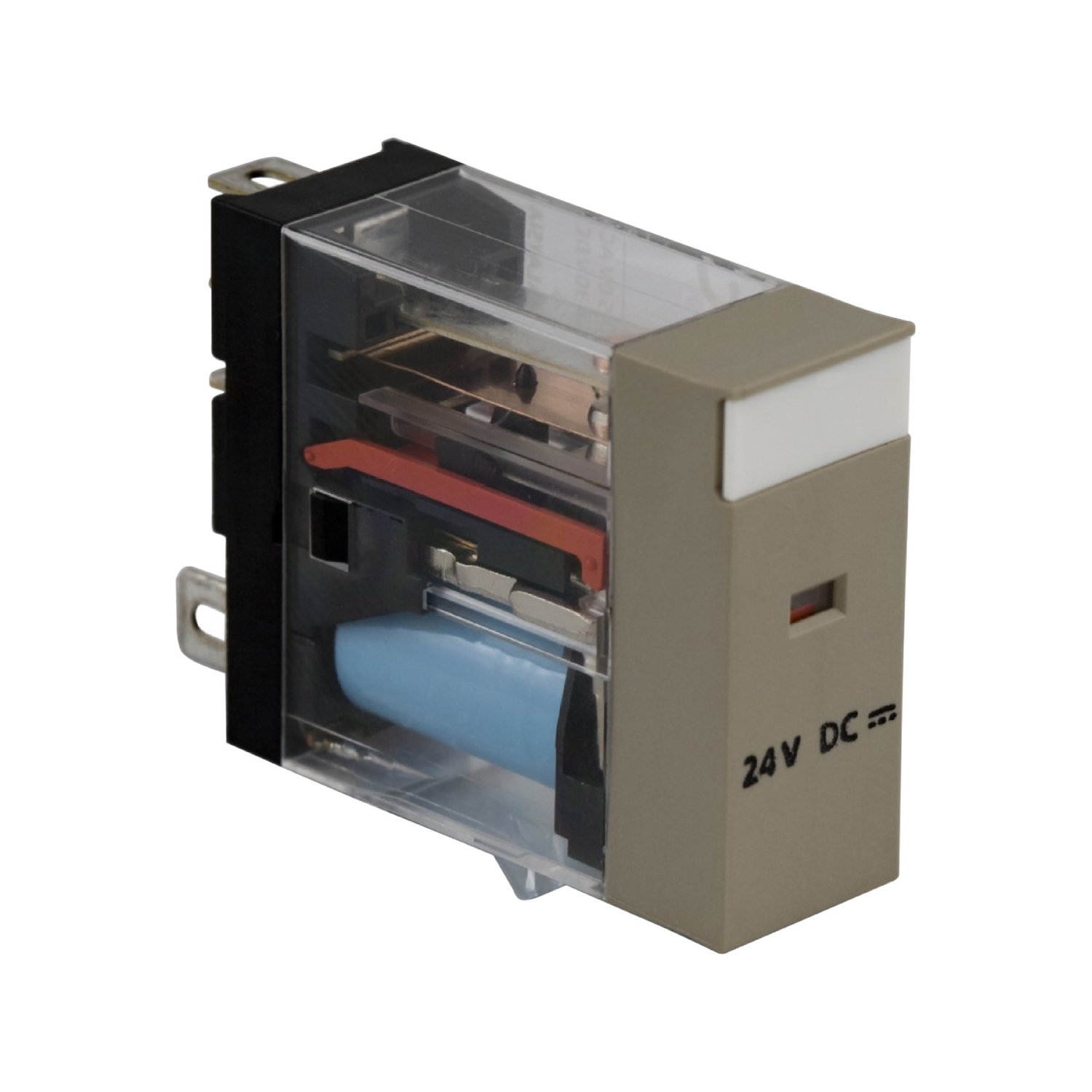

This product is part of the Modicon ABE7 range, an offer of connection sub-bases for Telefast pre-wired system. This plug-in electromechanical relay is compatible with Modicon ABE7 connection sub-bases. It has 1 change over contact. It is a solid state relay with a control circuit voltage of 24V DC, a conventional free air thermal current of 5A and a maximum power dissipation per pole is 0.36W. It offers electrical durability of 500000 cycles and mechanical durability of 20 million cycles. The width pitch is 10mm. It weighs 0.01kg. It is suitable for all types of industrial applications. This product is suitable for use with Modicon ABE7P16T215, ABE7P16T230, ABE7P16T212, ABE7R16T231, ABE7P16T214, ABE7P16T230E, ABE7R16T230 and ABE7P16T210 sub-base. Modicon ABE7 means greater simplicity to rationalise wiring in your automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Ordering information for ABR7S23
- Order code:
ABR7S23 - Manufacturer: Schneider Electric
- Range: Modicon ABE7
- GTIN / EAN: 3389110644753
- ETIM class: EC001652
- Datasheet: manufacturer datasheet for ABR7S23
Prices in ZAR excluding VAT; stock and lead time are confirmed on every written quotation from RMS Measurement & Control, Johannesburg.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Brand | Filter products by Schneider Electric |
|---|---|
| GTIN / EAN | Filter products by 3389110644753 |
| Range | Filter products by Modicon ABE7 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC001652 |
Documents
| Datasheet | Download datasheet |
|---|
Other specifications
| SKU/Code/Partnumber | Filter products by ABR7S23 |
|---|
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
