Schneider ElectricDistribution Terminal Blocks
A9XPH157 – Acti9 – comb busbar – 1L – 18 mm pitch – 57 modules – 100A | Schneider Electric
Order code
- 100 A
- 100 A
List R1 078.61 Your price R733.45
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Acti9 – comb busbar – 1L – 18 mm pitch – 57 modules – 100A — Schneider Electric order code A9XPH157.
Download datasheet (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
A9XPH157 — Acti9 – comb busbar – 1L – 18 mm pitch – 57 modules – 100A by Schneider Electric. Listed under Distribution Terminal Blocks on the Schneider Electric catalogue at RMS-SE.Africa.
About A9XPH157
This Acti9 product is a cuttable horizontal comb busbar 57 modules for Acti9 C60. It is dedicated to 1L installations. The type is L1 (Line). It is a set of 1 device. It is suitable for 57 devices (1P). The length is 1000mm.The total number of modules of 18mm is 57. The pin cross section is 16mm2. The type of electric connection is PIN. The number of phase is 1. The number of poles is 2. The Ie rated operational current at 40C is 100A. The Isc short circuit current is compatible with the breaking capacity of Schneider Electric circuit breakers. The Ui rated insulation voltage is 500VAC. The Ue rated operational voltage is 415VAC. The color of the device is anthracite grey RAL7016. The pollution degree is 3. According to IEC 60695-2-1 standard the fire resistance is self-extinguishing at 960C within 30s. It complies with IEC 60947-7-1 and IEC 61439-2 standards.
Ordering information for A9XPH157
- Order code:
A9XPH157 - Manufacturer: Schneider Electric
- Range: Acti 9 Comb Busbars
- GTIN / EAN: 3606480485114
- ETIM class: EC000215
- Datasheet: manufacturer datasheet for A9XPH157
Prices in ZAR excluding VAT; stock and lead time are confirmed on every written quotation from RMS Measurement & Control, Johannesburg.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Brand | Filter products by Schneider Electric |
|---|---|
| GTIN / EAN | Filter products by 3606480485114 |
| Range | Filter products by Acti 9 Comb Busbars |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC000215 |
Documents
| Datasheet | Download datasheet |
|---|
Other specifications
| SKU/Code/Partnumber | Filter products by A9XPH157 |
|---|
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
More in the Acti 9 Comb Busbars range
8 itemsSame series, same mounting and the same documentation set.
More in the Acti 9 Comb Busbars range
8 items

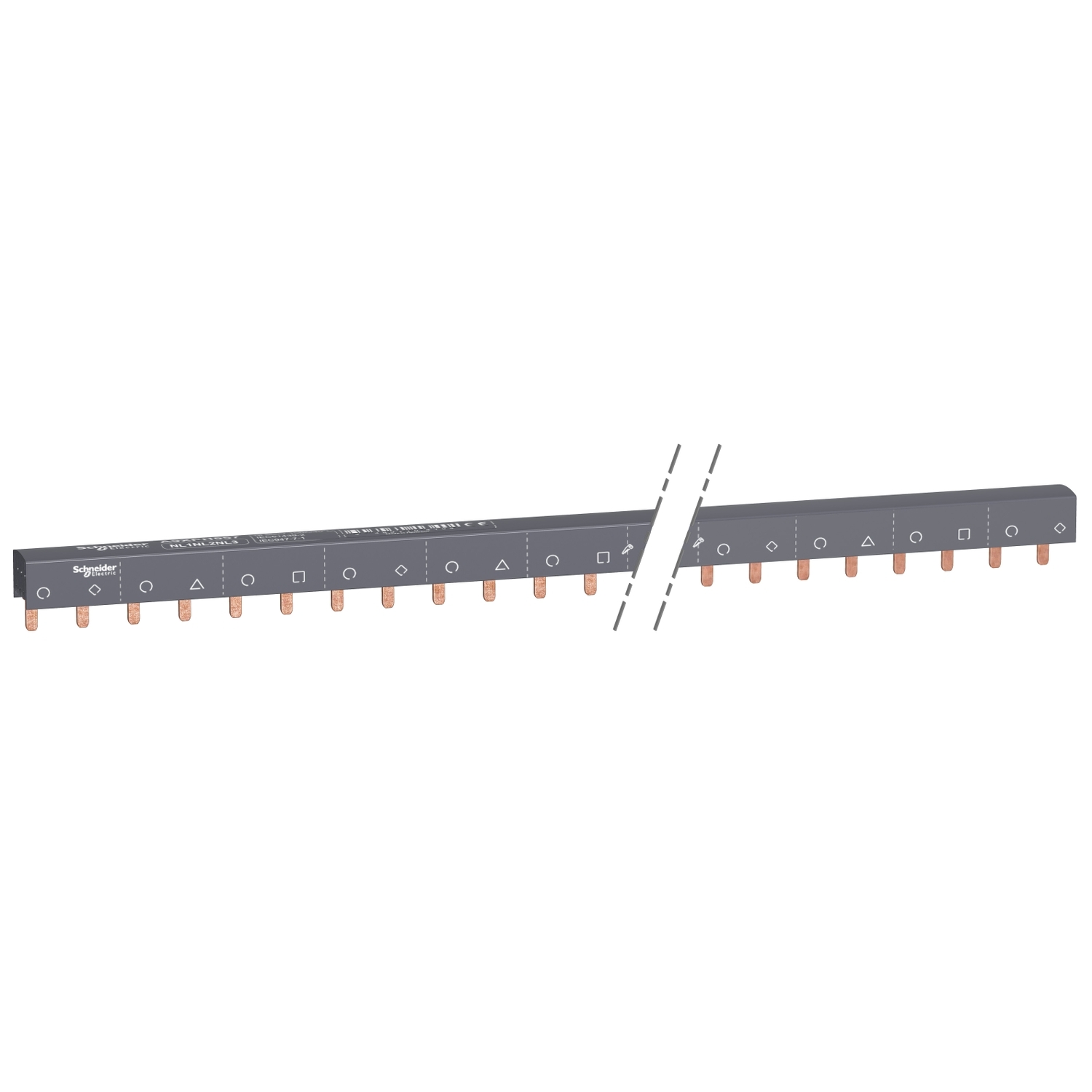

A9XPH557Acti9 – comb busbar – 3L+N balanced – 18 mm pitch – 57 modules – 100 AList R1 429.08 Your price R971.77View product
A9XPH524Acti9 – comb busbar – 3L+N balanced – 18 mm pitch – 24 modules – 100 AList R750.29 Your price R510.20View product

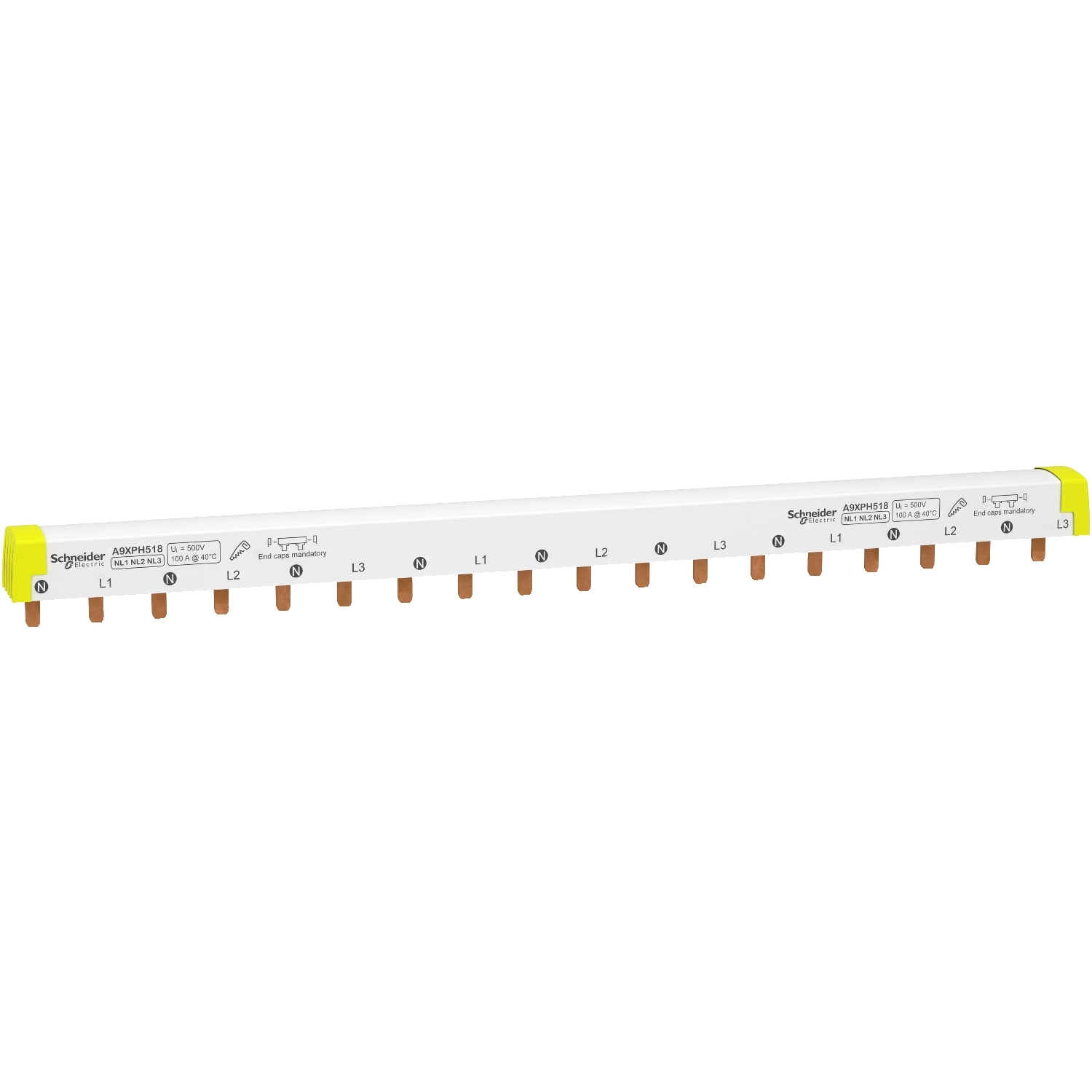

A9XPH518Acti9 – comb busbar – 3L+N balanced – 18 mm pitch – 18 modules – 100 AList R1 226.55 Your price R834.05View product

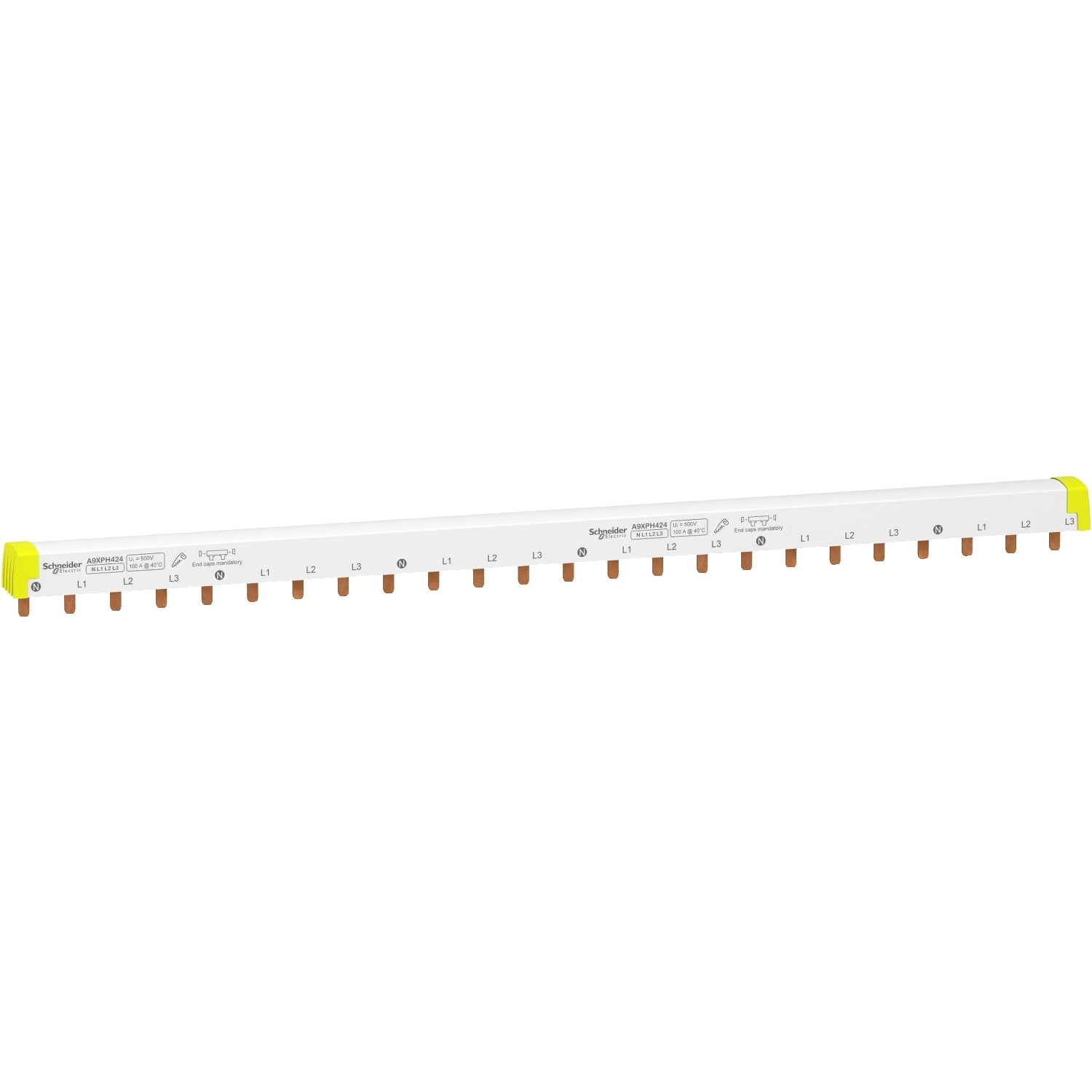

A9XPH424Acti9 – comb busbar – 3L+N – 18 mm pitch – 24 modules – 100 AList R1 297.77 Your price R882.48View product
A9XPH357Acti9 – comb busbar – 3L – 18 mm pitch – 57 modules – 100AList R1 340.29 Your price R911.40View product
A9XPH324Acti9 – comb busbar – 3L – 18 mm pitch – 24 modules – 100AList R856.94 Your price R582.72View product

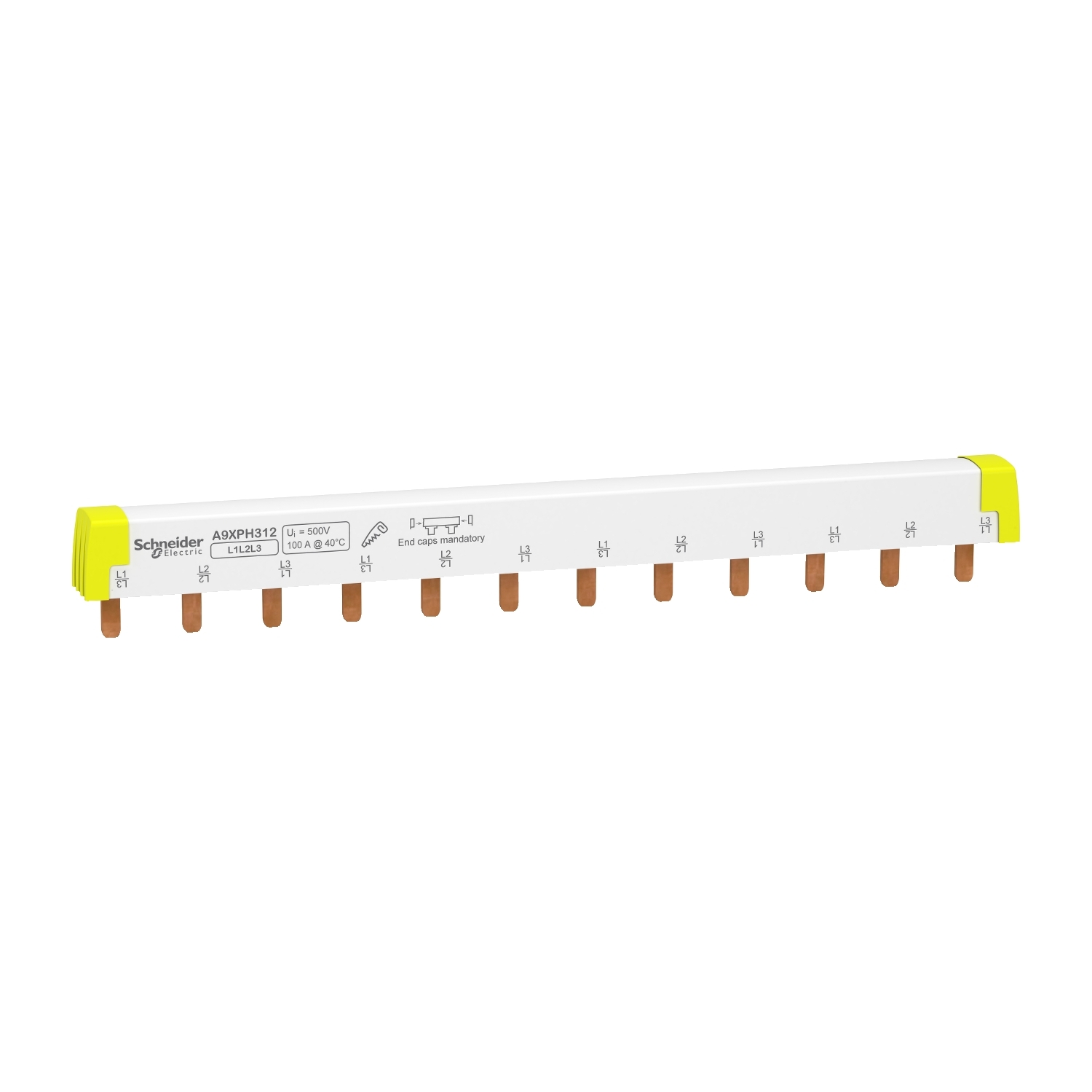

A9XPH312Acti9 – comb busbar – 3L – 18 mm pitch – 12 modules – 100AList R800.70 Your price R544.48View product
A9XPH257Acti9 – comb busbar – 1L+N – 18 mm pitch – 57 modules – 100 AList R1 251.50 Your price R851.02View product
Similar items
3 items
Similar items
3 items

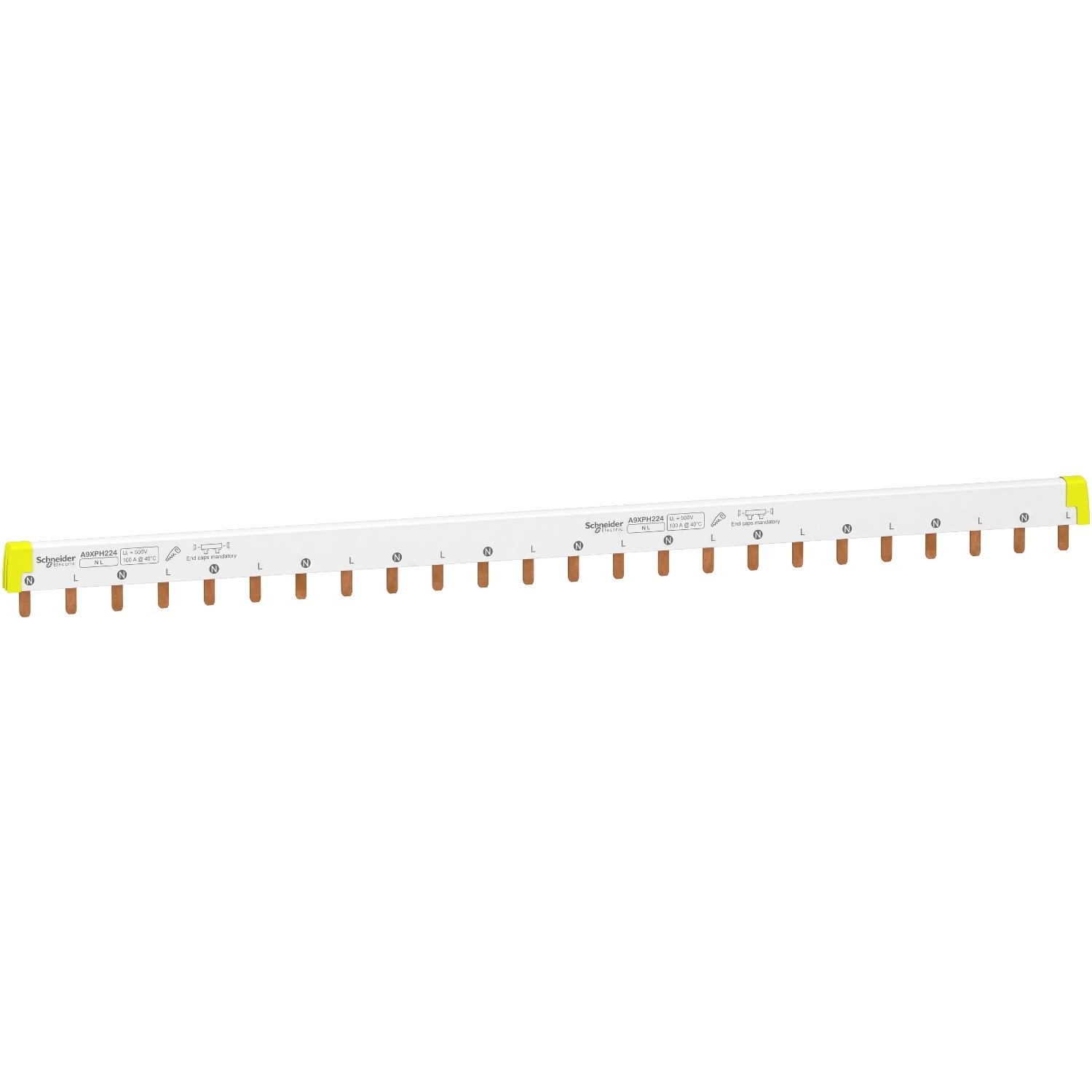

A9XPH224Acti9 – comb busbar – 1L+N – 18 mm pitch – 24 modules – 100 AList R1 088.74 Your price R740.34View product
A9XAH157Acti9 – comb busbar – 1L with Aux – 18 mm pitch – 57 modules – 100AList R1 154.35 Your price R784.96View product
A9XPH212Acti9 – comb busbar – 1L+N – 18 mm pitch – 12 modules – 100 AList R885.32 Your price R602.02View product
More in Distribution Terminal Blocks
8 items
More in Distribution Terminal Blocks
8 items

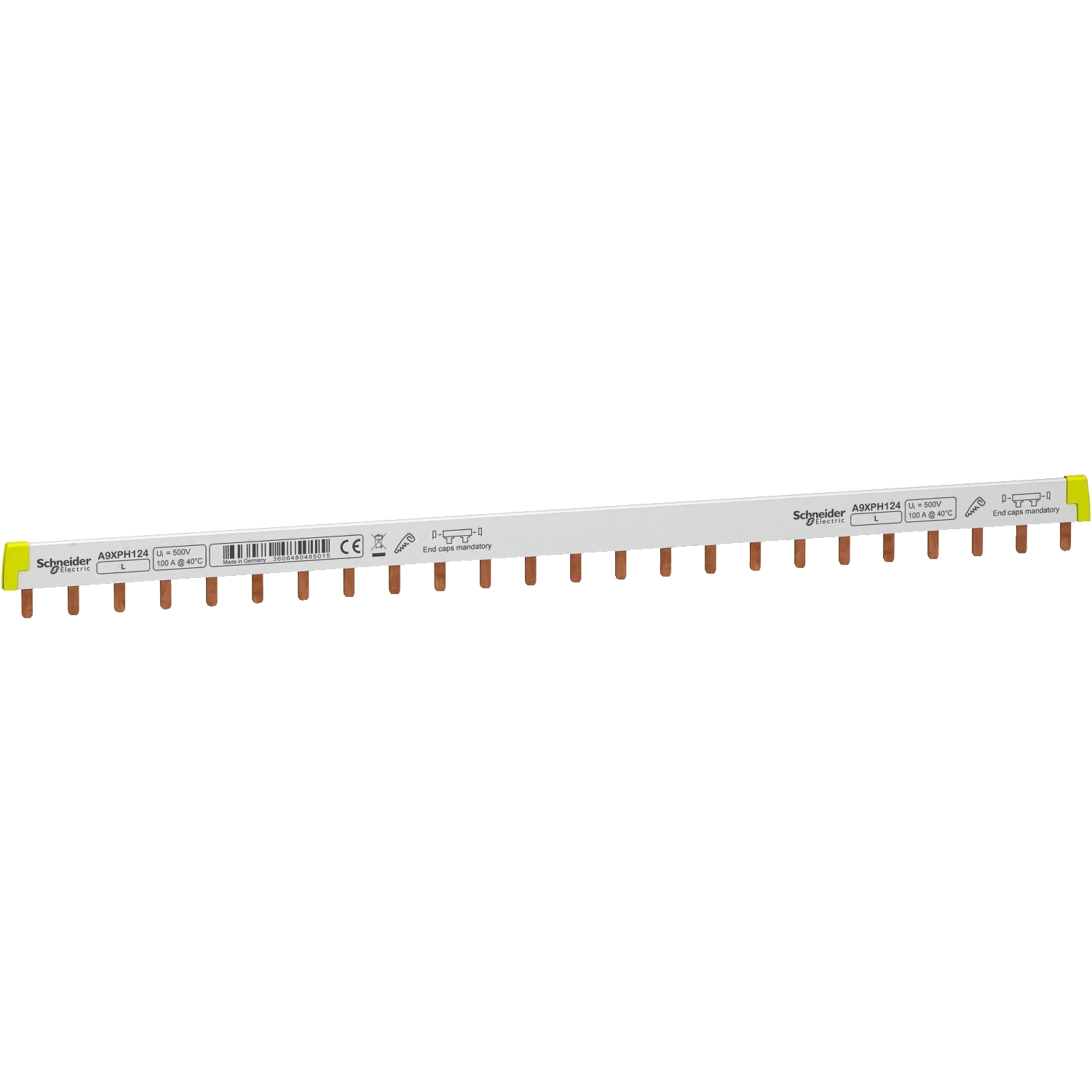

A9XPH124Acti9 – comb busbar – 1L – 18 mm pitch – 24 modules – 100AList R539.31 Your price R366.73View product
