A9S60432 – Switch Acti9 iSW – 4 poles – 32 A – 415V | Schneider Electric
Order code
Select a variant in this series
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
List R1 070.35 Your price R727.84
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Switch Acti9 iSW – 4 poles – 32 A – 415V — Schneider Electric order code A9S60432.
Download datasheet (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
A9S60432 — Switch Acti9 iSW – 4 poles – 32 A – 415V by Schneider Electric. Listed under Load Break & Changeover Switches on the Schneider Electric catalogue at RMS-SE.Africa.
About A9S60432
This Acti9 iSW is a modular and reliable switch disconnector. it is a 4P, rated current is 32A, and operating voltage is 415VAC. Electrical endurance goes up to 30000 cycles, and Mechanical endurance goes up to 300000 cycles. The operating temperature is -20C to +50C. The storage temperature is -40C to +70C. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. The width in 9mm pitches is 4. The dimensions are (W) 36mm x (H) 77mm x (D) 70mm. This switch disconnector is used for control. This product is compliant with EN/IEC 60669-2-4.
A9S60432 key specifications
number of poles 4P.
Ordering information for A9S60432
- Order code:
A9S60432 - Manufacturer: Schneider Electric
- Range: Acti 9 iSW & SW
- GTIN / EAN: 3606480088742
- ETIM class: EC001545
- Datasheet: manufacturer datasheet for A9S60432
Prices in ZAR excluding VAT; stock and lead time are confirmed on every written quotation from RMS Measurement & Control, Johannesburg.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Brand | Filter products by Schneider Electric |
|---|---|
| GTIN / EAN | Filter products by 3606480088742 |
| Range | Filter products by Acti 9 iSW & SW |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC001545 |
Electrical ratings
| Number of poles | Filter products by 4P |
|---|
Documents
| Datasheet | Download datasheet |
|---|
Other specifications
| SKU/Code/Partnumber | Filter products by A9S60432 |
|---|
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
More in the Acti 9 iSW & SW range
8 itemsSame series, same mounting and the same documentation set.
More in the Acti 9 iSW & SW range
8 items
A9S65492Switch disconnector iSW – 4P – 125 A – 415 VList R1 926.68 Your price R1 310.14View product- A9S65491Switch disconnector iSW – 4P – 100 A – 415 VList R2 113.88 Your price R1 437.44View product
- A9S65463Switch disconnector iSW – 4P – 63 A – 415 VList R1 297.61 Your price R882.37View product
- A9S65440Switch disconnector iSW – 4P – 40 A – 415 VList R1 184.05 Your price R805.15View product
A9S65392A9S65392 – Switch disconnector iSW – 3P – 125 A – 415 VList R2 748.23 Your price R1 868.80View product- A9S65391A9S65391 – Switch disconnector iSW – 3P – 100 A – 415 VList R1 300.87 Your price R884.59View product
- A9S65363Switch disconnector iSW – 3P – 63 A – 415 VList R764.26 Your price R519.70View product
- A9S65340Switch disconnector iSW – 3P – 40 A – 415 VList R463.43 Your price R315.13View product
Similar items
7 items
Similar items
7 items
A9S70740Switch-disconnector iSW-NA – 3P + N – 40 AList R1 074.10 Your price R730.39View product
A9S65192Switch disconnector iSW – 1P – 125 A – 240 VList R1 078.77 Your price R733.56View product
A9S61232Switch Acti9 iSW with indicator – 2 poles – 32 A – 250VList R1 114.21 Your price R757.66View product
47339Auxiliary contact – 1 OC low levelList R1 160.92 Your price R789.43View product
47076Auxiliary contact OF – 6 A – 1 NO/NC – for Masterpact NTList R920.00 Your price R625.60View product
A9S60332Switch Acti9 iSW – 3 poles – 32 A – 415VList R912.14 Your price R620.26View product

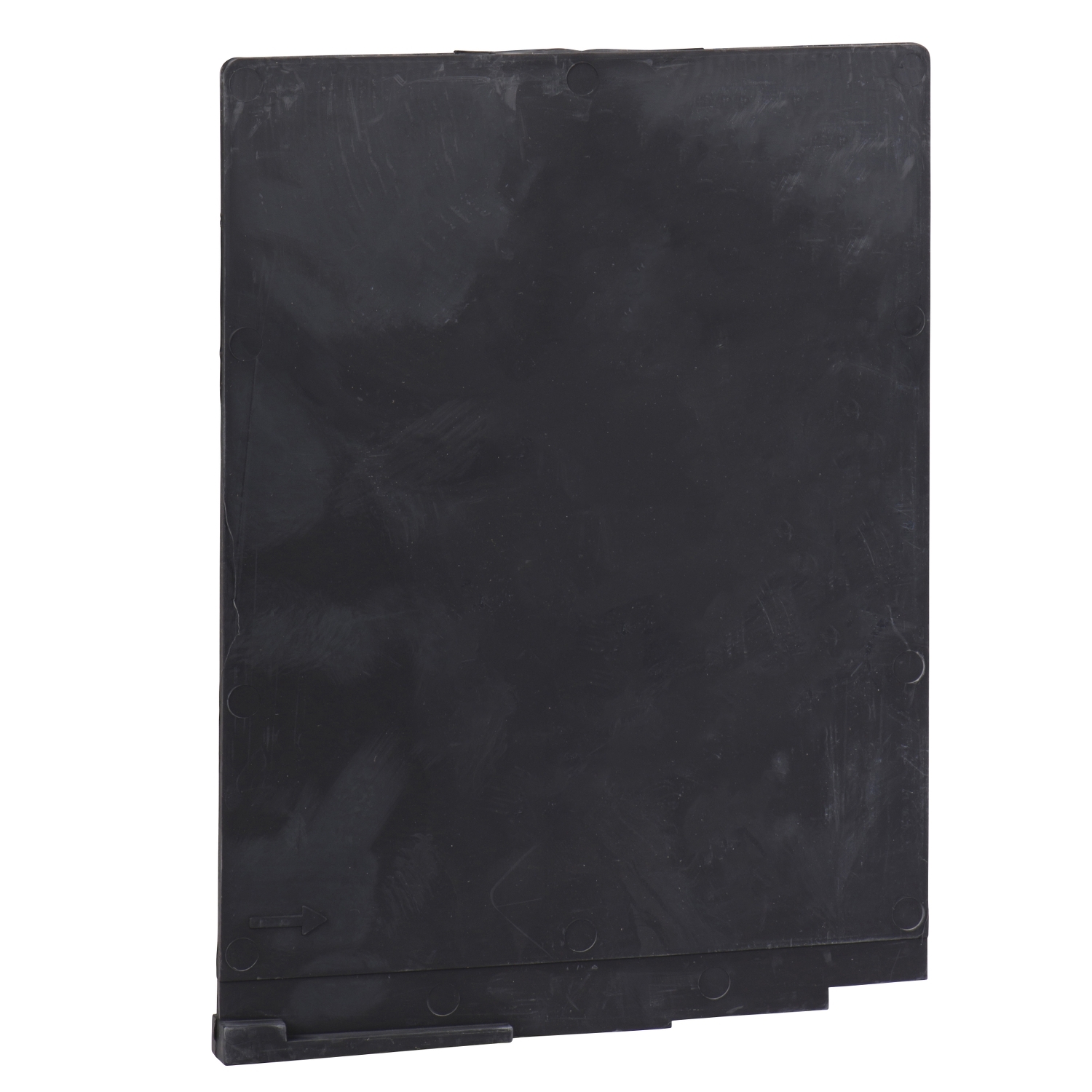

33998Interphase barriers, fixed ComPact NS1600b to NS3200, for rear connections, 3/4 poles, set of 3 partsList R898.24 Your price R610.80View product
