Schneider ElectricEarth Leakage & Residual Current Devices
A9R12440 – Acti9 iID – RCCB – 4P – 40A – 100mA – type AC | Schneider Electric
Order code
Select a variant in this series
- 2P
- 4P
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
List R2 094.50 Your price R1 424.26
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Acti9 iID – RCCB – 4P – 40A – 100mA – type AC — Schneider Electric order code A9R12440.
Download datasheet (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
A9R12440 — Acti9 iID – RCCB – 4P – 40A – 100mA – type AC by Schneider Electric. Listed under Earth Leakage & Residual Current Devices on the Schneider Electric catalogue at RMS-SE.Africa.
About A9R12440
This Acti9 iID is a modular and reliable residual current circuit breaker (RCCB). It is a 4P circuit breaker with 40A In rated current, 100mA earth leakage sensitivity and AC type protection class. This product protects against electrical shock by indirect contact and fire hazards. It performs the function of disconnection of electrical circuits in case of earth fault. Its unique Visitrip indicator reduces intervention time by showing the faulty device with a mechanical indicator on front face. This product also has a VisiSafe window with a green strip on the toggle indicating full opening of the poles allowing downstream maintenance This product is compliant with EN/IEC 61008-1 standard. The (Im/I?m) rated breaking and making short circuit capacity is 1500A. The (Inc/I?c) conditional rated short circuit current is 10kA. It has an electrical endurance going up to 15000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 380VAC to 415VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz or 60Hz. It is DIN rail mountable. The width in 9mm pitches is 8. The product colour is white (RAL9003). The dimensions are (W) 72mm x (H) 91mm x (D) 73.5mm. The weight is 0.37kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -5C to 60C. The storage temperature is from -40C to 85C.
A9R12440 key specifications
number of poles 4P.
Ordering information for A9R12440
- Order code:
A9R12440 - Manufacturer: Schneider Electric
- Range: Acti 9 iID
- GTIN / EAN: 3606480089305
- ETIM class: EC000003
- Datasheet: manufacturer datasheet for A9R12440
Prices in ZAR excluding VAT; stock and lead time are confirmed on every written quotation from RMS Measurement & Control, Johannesburg.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Brand | Filter products by Schneider Electric |
|---|---|
| GTIN / EAN | Filter products by 3606480089305 |
| Range | Filter products by Acti 9 iID |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC000003 |
Electrical ratings
| Number of poles | Filter products by 4P |
|---|
Documents
| Datasheet | Download datasheet |
|---|
Other specifications
| SKU/Code/Partnumber | Filter products by A9R12440 |
|---|
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
More in the Acti 9 iID range
8 itemsSame series, same mounting and the same documentation set.
More in the Acti 9 iID range
8 items
A9R61463Acti9 iID, RCCB, 4 pole, 63A, 30mA, type A-SIList R2 153.66 Your price R1 464.49View product- A9R61440Acti9 iID, RCCB, 4 pole, 40A, 30mA, type A-SIList R1 972.58 Your price R1 341.35View product
- A9R61425Acti9 iID, RCCB, 4 pole, 25A, 30mA, type A-SIList R1 840.82 Your price R1 251.76View product
- A9R61263Acti9 iID – RCCB – 2P – 63A – 30mA – type A-SIList R1 346.04 Your price R915.31View product
- A9R61240Acti9 iID, RCCB, 2 pole, 40A, 30mA, type A-SIList R1 306.82 Your price R888.64View product
- A9R61225Acti9 iID, RCCB, 2 pole, 25A, 30mA, type A-SIList R1 241.50 Your price R844.22View product
- A9R44463Acti9 iID, RCCB, 4 pole, 63A, 300mA, type ACList R1 159.66 Your price R788.57View product
- A9R44440Acti9 iID, RCCB, 4 pole, 40A, 300mA, type ACList R1 125.91 Your price R765.62View product
Similar items
5 items
Similar items
5 items- A9R14280Acti9 iID – RCCB – 2P – 80A – 300mA – type ACList R2 049.19 Your price R1 393.45View product

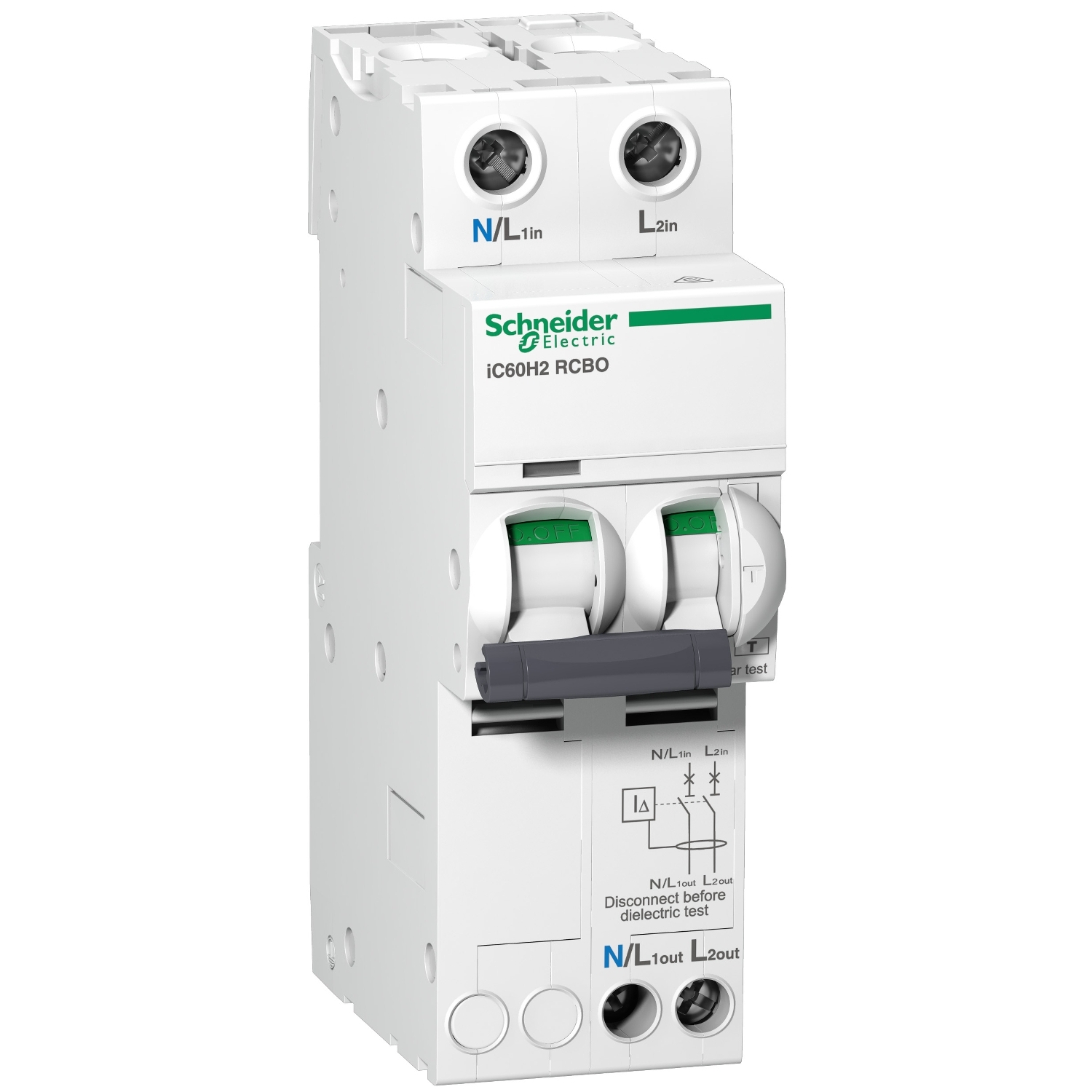

A9D19210IC60H2 – earth leakage circuit breaker – 2P – C curve – 10 A – 30 mA – 110 VList R2 156.12 Your price R1 466.16View product- A9R11280Acti9 iID, RCCB, 2 pole, 80A, 30mA, type ACList R2 010.52 Your price R1 367.15View product
