Schneider ElectricMiniature Circuit Breakers (MCB's)
A9N60777 – Miniature circuit-breaker, Acti9 C120H, 1P, 80 A, C curve, 15 kA (IEC 60947-2) | Schneider Electric
Order code
Select a variant in this series
- C
- D
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
List R1 491.28 Your price R1 014.07
Excluding VAT · per unit · volume pricing available on request
End of commercialisation announced (2023/06/30). Ask us to confirm remaining stock or to quote the current replacement.
Listed in stock — availability is re-confirmed on every order

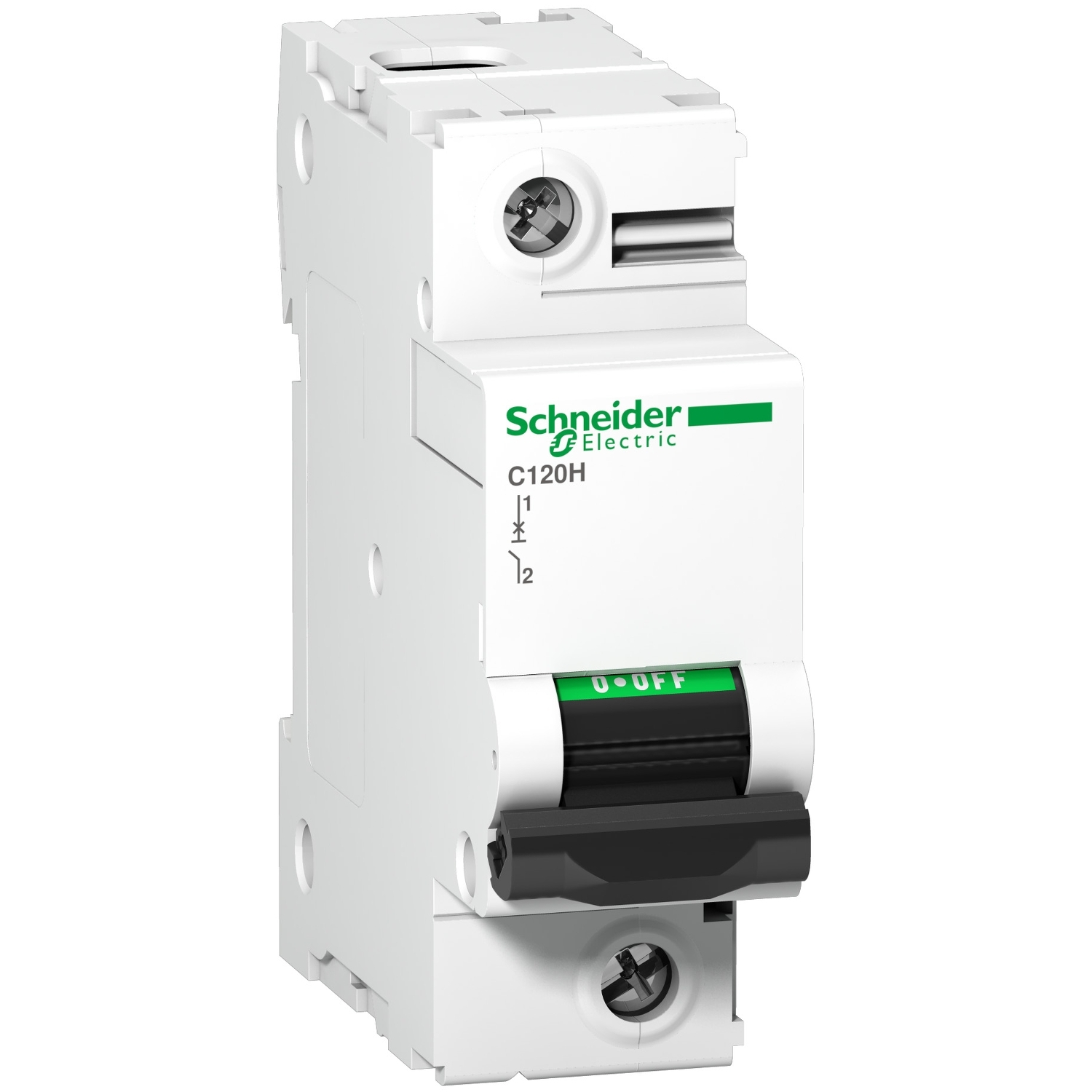

Miniature circuit-breaker, Acti9 C120H, 1P, 80 A, C curve, 15 kA (IEC 60947-2) — Schneider Electric order code A9N60777.
Download datasheet (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
A9N60777 — Miniature circuit-breaker, Acti9 C120H, 1P, 80 A, C curve, 15 kA (IEC 60947-2) by Schneider Electric. Listed under Miniature Circuit Breakers (MCBs) on the Schneider Electric catalogue at RMS-SE.Africa.
About A9N60777
This Acti9 C120H is a low voltage multistandard miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 80A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 15kA at 230VAC to 400VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker combines functions of circuit protection against short circuit and overload current, control and isolation. The presence of green strip guarantees that contacts open physically and allows work to be carried out safely on the downstream circuit. Its fast closing mechanism improves its service life. Acti9 C120 offer is dedicated to industrial and tertiary buildings. It has an electrical endurance going up to 5000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 125VDC. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. The product can be clipped on a DIN rail. Its width is 3 pitches of 9mm. Pollution degree is 3. The product colour is white (RAL9003). The dimensions are (W) 27mm x (H) 81mm x (D) 73mm. The weight is 0.205kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
A9N60777 key specifications
number of poles 1P; tripping curve C.
Ordering information for A9N60777
- Order code:
A9N60777 - Manufacturer: Schneider Electric
- Range: Acti 9 C120
- GTIN / EAN: 3606480383328
- ETIM class: EC000042
- Datasheet: manufacturer datasheet for A9N60777
- Lifecycle: End of commercialisation announced (2023/06/30)
Prices in ZAR excluding VAT; stock and lead time are confirmed on every written quotation from RMS Measurement & Control, Johannesburg.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
Electrical ratings
| Number of poles | Filter products by 1P |
|---|---|
| Tripping curve | Filter products by C |
Documents
| Datasheet | Download datasheet |
|---|
Other specifications
| SKU/Code/Partnumber | Filter products by A9N60777 |
|---|
