Schneider ElectricMiniature Circuit Breakers (MCB's)

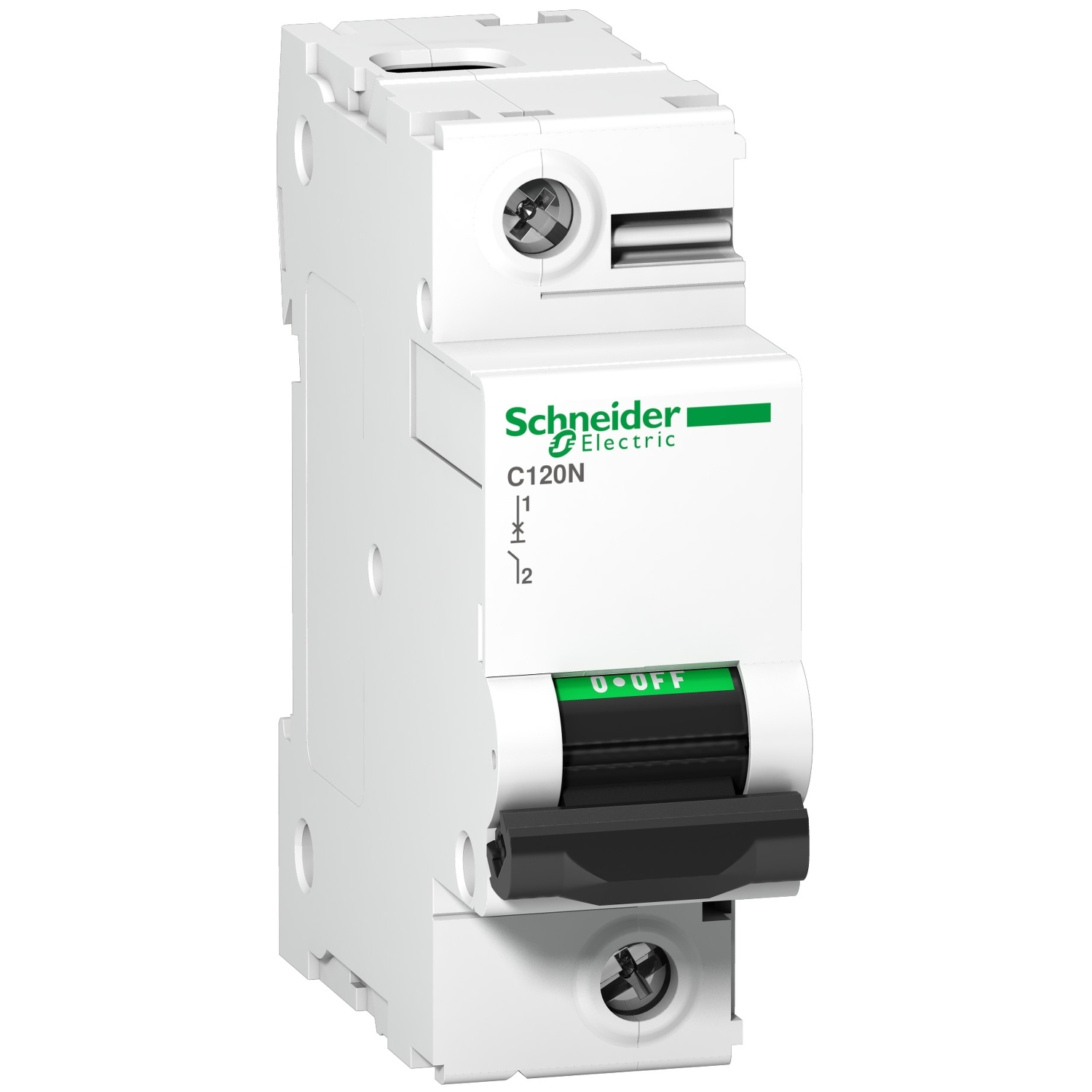

A9N60730 – Miniature circuit-breaker, Acti9 C120N, 1P, 100 A, C curve, 10 kA (IEC 60947-2) | Schneider Electric
Order code
Select a variant in this series
- C
- D
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
List R757.44 Your price R515.06
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Miniature circuit-breaker, Acti9 C120N, 1P, 100 A, C curve, 10 kA (IEC 60947-2) — Schneider Electric order code A9N60730.
Download datasheet (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
A9N60730 — Miniature circuit-breaker, Acti9 C120N, 1P, 100 A, C curve, 10 kA (IEC 60947-2) by Schneider Electric. Listed under Miniature Circuit Breakers (MCBs) on the Schneider Electric catalogue at RMS-SE.Africa.
About A9N60730
This Acti9 C120N is a low voltage multistandard miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 100A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 230VAC to 400VAC conforming to EN/IEC 60947-2 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker combines functions of circuit protection against short circuit and overload current, control and isolation. The presence of green strip guarantees contact open physically and allows work to be carried out safely on the downstream circuit. It has good overvoltage withstand capacity. The product is designed to offer a high industrial performance level It has an electrical endurance going up to 5000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 125VDC. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. The product can be clipped on a DIN rail. Its width is 3 pitches of 9mm. Pollution degree is 3. The product colour is white (RAL9003). The dimensions are (W) 27mm x (H) 81mm x (D) 73mm. The weight is 0.205kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30C to 70C. The storage temperature is -40C to 80C.
A9N60730 key specifications
number of poles 1P; tripping curve C.
Ordering information for A9N60730
- Order code:
A9N60730 - Manufacturer: Schneider Electric
- Range: Acti 9 C120
- GTIN / EAN: 3606480383175
- ETIM class: EC000042
- Datasheet: manufacturer datasheet for A9N60730
Prices in ZAR excluding VAT; stock and lead time are confirmed on every written quotation from RMS Measurement & Control, Johannesburg.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Brand | Filter products by Schneider Electric |
|---|---|
| GTIN / EAN | Filter products by 3606480383175 |
| Range | Filter products by Acti 9 C120 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC000042 |
Electrical ratings
| Number of poles | Filter products by 1P |
|---|---|
| Tripping curve | Filter products by C |
Documents
| Datasheet | Download datasheet |
|---|
Other specifications
| SKU/Code/Partnumber | Filter products by A9N60730 |
|---|
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Similar items
8 items
Similar items
8 items
A9N61526Miniature circuit breaker, C60H, 2 poles, 6 A, C curveList R1 380.01 Your price R938.41View product- A9N61525Miniature circuit breaker – C60H – 2 poles – 5 A – C curveList R1 380.01 Your price R938.41View product
- A9N61524Miniature circuit breaker – C60H – 2 poles – 4 A – C curveList R1 380.01 Your price R938.41View product
- A9N61523Miniature circuit breaker, C60H, 2 poles, 3 A, C curveList R1 380.01 Your price R938.41View product
- A9N61529Miniature circuit breaker – C60H – 2 poles – 13 A – C curveList R1 406.08 Your price R956.13View product
- A9N61528Miniature circuit breaker, C60H, 2 poles, 10 A, C curveList R1 406.08 Your price R956.13View product
A9V11263Vigi iC60 – earth leakage add-on block – 2P – 63A – 30mA – AC typeList R1 415.85 Your price R962.78View product- A9N61532Miniature circuit breaker, C60H, 2 poles, 20 A, C curveList R1 432.12 Your price R973.84View product
More in Miniature Circuit Breakers (MCB's)
8 items
More in Miniature Circuit Breakers (MCB's)
8 items
A9V65463Vigi iC60 – earth leakage add-on block – 4P – 63A – 300mA – SI type – selectiveList R4 701.12 Your price R3 196.76View product
A9V65363Vigi iC60 – earth leakage add-on block – 3P – 63A – 300mA – SI type – selectiveList R3 778.34 Your price R2 569.27View product- A9V65263Vigi iC60 – earth leakage add-on block – 2P – 63A – 300mA – SI type – selectiveList R3 637.78 Your price R2 473.69View product
- A9V61463Vigi iC60 – earth leakage add-on block – 4P – 63A – 30mA – SI typeList R3 588.04 Your price R2 439.87View product
A9V61425Vigi iC60 – earth leakage add-on block – 4P – 25A – 30mA – SI typeList R4 502.72 Your price R3 061.85View product- A9V61340Vigi iC60 – earth leakage add-on block – 3P – 40A – 30mA – SI typeList R4 706.11 Your price R3 200.15View product
- A9V61263Vigi iC60 – earth leakage add-on block – 2P – 63A – 30mA – SI typeList R5 028.83 Your price R3 419.60View product
A9V61225Vigi iC60 – earth leakage add-on block – 2P – 25A – 30mA – SI typeList R2 171.40 Your price R1 476.55View product
Alternatives on our other RMS storefronts
RMS supplies each manufacturer range from its own storefront. These links open a different RMS site in a new tab.
- Comparable rangeS200 MCB range at RMS-ABB.Africa (opens in a new tab)
- Comparable rangeHager MCB range at RMS-EM.Africa (opens in a new tab)
Same published rating on our other storefronts
Suggestions, not stated equivalents. Each manufacturer publishes the same poles 1P, rated current 100 A, curve C for its own order code. Breaking capacity, terminals, mounting, width, coil range, accessories and approvals are not part of that and routinely differ — send us the code and we will confirm what actually replaces it.
RMS-ABB.Africa
RMS-EM.Africa
HLF190SHLF190S – 100A 1P 10KA C-curve MCB | Hager (opens in a new tab)Hagerbreaking capacity: 10kAHMC190HMC190 – 100A 1P 15KA C-curve MCB | Lovato Electric (opens in a new tab)Lovato Electricbreaking capacity: 15kA
Quick answers
What is A9N60730?
A9N60730 is the order code for Miniature circuit-breaker, Acti9 C120N, 1P, 100 A, C curve, 10 kA (IEC 60947-2). It belongs to our Miniature Circuit Breakers (MCB's) range. RMS-SE.Africa supplies it as genuine Schneider Electric product, sourced through the manufacturer's distribution channel.
Is it available?
It is listed as in stock. Availability is re-confirmed on every order before any payment is taken, so what you order is what actually ships.
How do I get a formal quotation?
Use "Add to quote" and submit the quote basket. The RMS team prices every line, confirms stock, and emails you a formal quotation with written lead times — and you can accept it online to turn it into an order.
Do I pay when I order?
No. Checkout submits the order without payment; we confirm stock for every line first, then email you a secure payment link for the order.
