Schneider ElectricMiniature Circuit Breakers (MCB's)
A9N26924 – Acti9 – Auxiliary contact OC plus 1 SD and OF ac dc | Schneider Electric
Order code
List R613.36 Your price R417.08
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Acti9 – Auxiliary contact OC plus 1 SD and OF ac dc — Schneider Electric order code A9N26924.
Download datasheet (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
A9N26924 — Acti9 – Auxiliary contact OC plus 1 SD and OF ac dc by Schneider Electric. Listed under Miniature Circuit Breakers (MCBs) on the Schneider Electric catalogue at RMS-SE.Africa.
About A9N26924

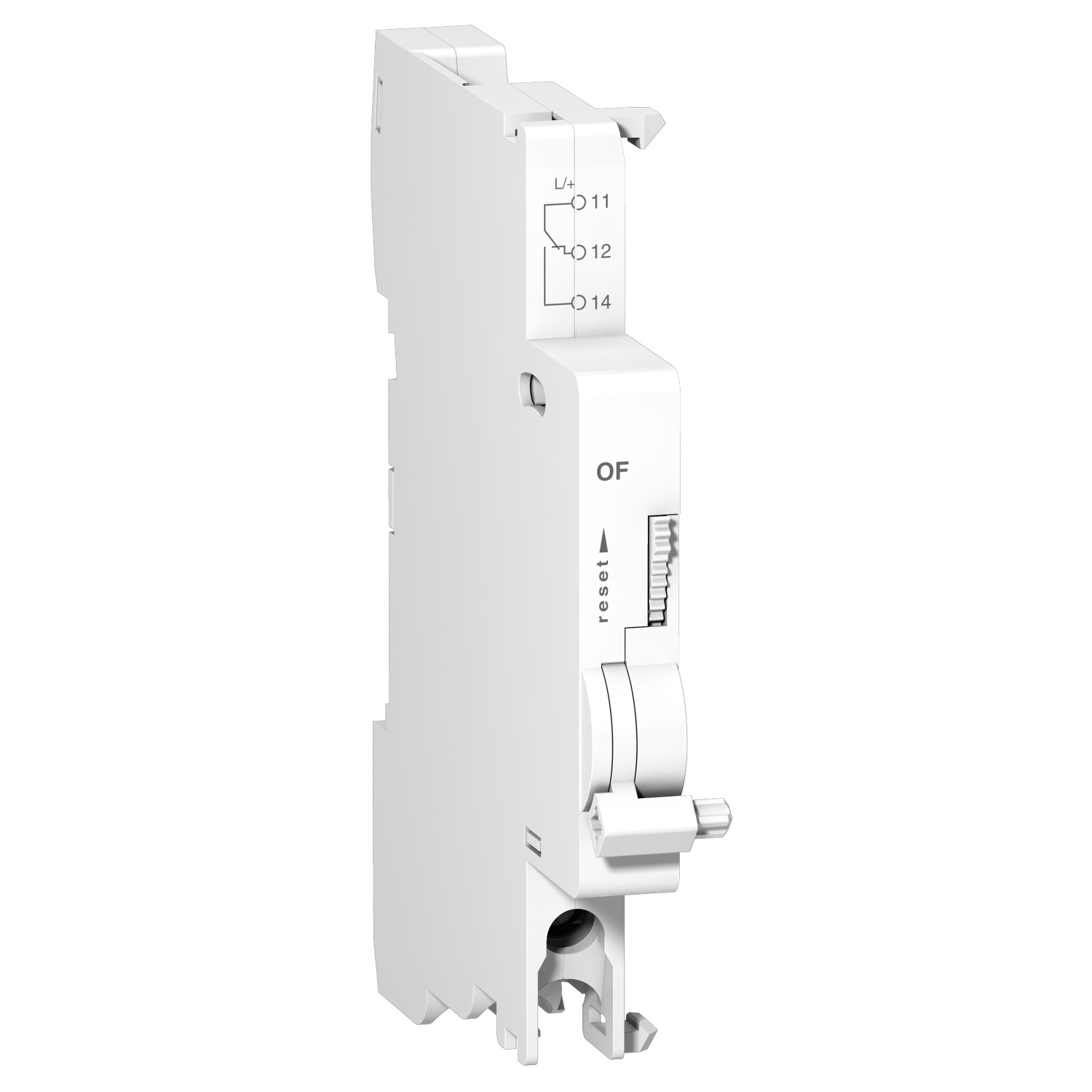

This Acti9 OF+SD/OF electric auxiliary is a double open/closed or fault indicator contact. It is dedicated to C60, C40, C120, C40, iID, DT40, iDPN Vigi, SW60-DC, iTG40 products. It comes with 1 changeover contact indicating the open or closed position (OF). It provides a remote position open/close and/or fault tripping indication of the associated device. It is a two-in-one product. The choice of OF+SD or OF+OF contact is made via the selector switch on front face. There is a mechanical state indicator and a test function button on the front face. The Ue rated operational voltage is 24VAC to 415VAC or 24VDC to 130VDC. The operating frequency is 50Hz or 60Hz. The Ie rated operational current is 6A under 24VDC, 2A under 48VDC, 1.5A under 60VDC, 1A under 130VDC. The Ie rated operational current is 6A under 24VAC to 240VAC, 3A under 415VAC. The width in 9mm pitches is 1. The product color is white (RAL9003). The dimensions are (W) 9mm x (H) 85.3mm x (D) 73.5mm. Product weight is 30g. The degree of protection is IP20 at terminals and IP40 in enclosure. The operating temperature is -25C to +50C. The storage temperature is -40C to +85C. This product complies with EN/IEC 60947-5-1 standard.
Ordering information for A9N26924
- Order code:
A9N26924 - Manufacturer: Schneider Electric
- Range: Clario / Librio / Prodis : iDPN, C40, DT40
- GTIN / EAN: 3606480382925
- ETIM class: EC001286
- Datasheet: manufacturer datasheet for A9N26924
Prices in ZAR excluding VAT; stock and lead time are confirmed on every written quotation from RMS Measurement & Control, Johannesburg.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Brand | Filter products by Schneider Electric |
|---|---|
| GTIN / EAN | Filter products by 3606480382925 |
| Range | Filter products by Clario / Librio / Prodis : iDPN, C40, DT40 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC001286 |
Documents
| Datasheet | Download datasheet |
|---|
Other specifications
| SKU/Code/Partnumber | Filter products by A9N26924 |
|---|
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
