A9E18036 – Acti9 iPB 1NO single push button grey – indicator light Green 110-230Vac | Schneider Electric
Order code
List R197.22 Your price R134.11
Per unit · volume pricing available on request
excl. VAT R154.23 incl.
Listed in stock — availability is re-confirmed on every order
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
Acti9 iPB 1NO single push button grey – indicator light Green 110-230Vac — Schneider Electric order code A9E18036.
In stock — 1–2 working days if stocked locally, 3–5 working days if sourced
View on the Schneider Electric site (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
A9E18036 — Acti9 iPB 1NO single push button grey – indicator light Green 110-230Vac by Schneider Electric. Listed under Miniature Circuit Breakers (MCBs) on the Schneider Electric catalogue at RMS-SE.Africa.
About A9E18036

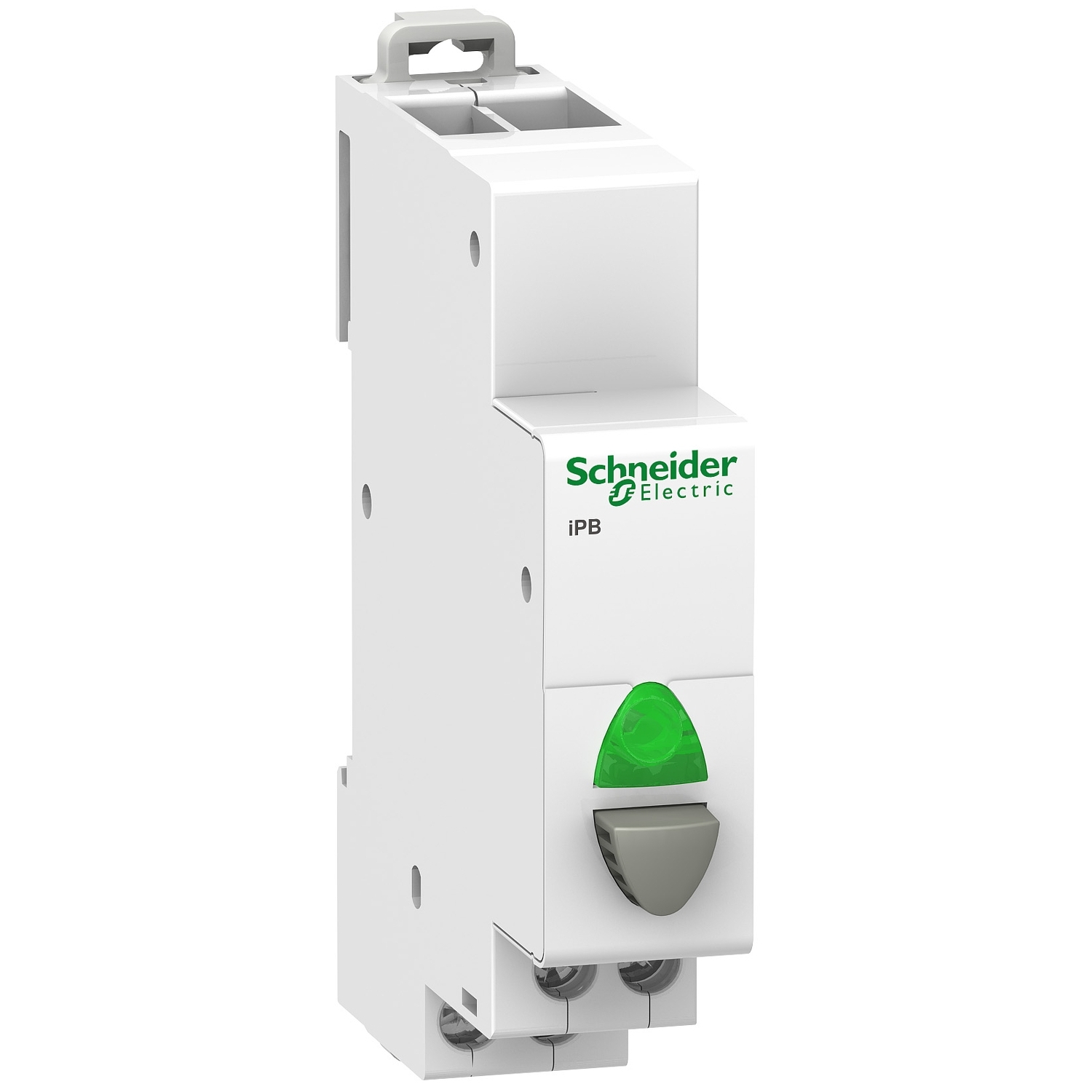

This Acti9 iPB is a modular pusbutton with indicator light used to control electric circuits by means of pulses. It is a single normaly open contact (NO) with a maintenance-free LED light indicator. The push-button is grey. The LED is green and non-interchangeable. The phase-separated wall can be divided to allow all the types of com busbar to pass through. It comes with staggered terminals to simplify connection. The tightening torque of connection is 1N.m for PZ1 screwdriver type. The Ue rated operational voltage is 250VAC. The Ie rated operational current is 20A. The operating frequency is 50Hz. The connection allows rigid copper cables from 0.5mm minimum to 2×2.5mm maximum. The connection allows flexible or with ferrule copper cables from 0.5mm minimum to 2×2.5mm maximum. The number of cycles open and close (O-C) is 30000. The endurance is 30000 operations with AC22 current category under cos phi=0.8. The power supply voltage of the indicator light is from 110VAC to 230VAC. The consumption of the LED indicator light is 0.3W. The service life of the LED is 100000 hours of constant lighting efficiency. The width in 9mm pitches is 2. The dimensions are (W) 18mm x (H) 82mm x (D) 71mm. The pollution degree is 3. The tropicalization is treatment 2 (relative humidity 95% at 55C). The operational temperature is from -35C to +70C. The storage temperature is from -40C to +80C. It complies with IEC 60669-1 and IEC 60947-5-1 standards.
Ordering information for A9E18036
- Order code:
A9E18036 - Manufacturer: Schneider Electric
- Range: Acti 9 iPB
- GTIN / EAN: 3606480088285
- ETIM class: EC001546
- Datasheet: manufacturer datasheet for A9E18036
Prices in ZAR excluding VAT; stock and lead time are confirmed on every written quotation from RMS Measurement & Control, Johannesburg.
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Brand | Filter products by Schneider Electric |
|---|---|
| GTIN / EAN | 3606480088285 |
| Range | Filter products by Acti 9 iPB |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC001546 |
Documents
| Datasheet | View on the Schneider Electric site |
|---|
Other specifications
| SKU/Code/Partnumber | A9E18036 |
|---|
