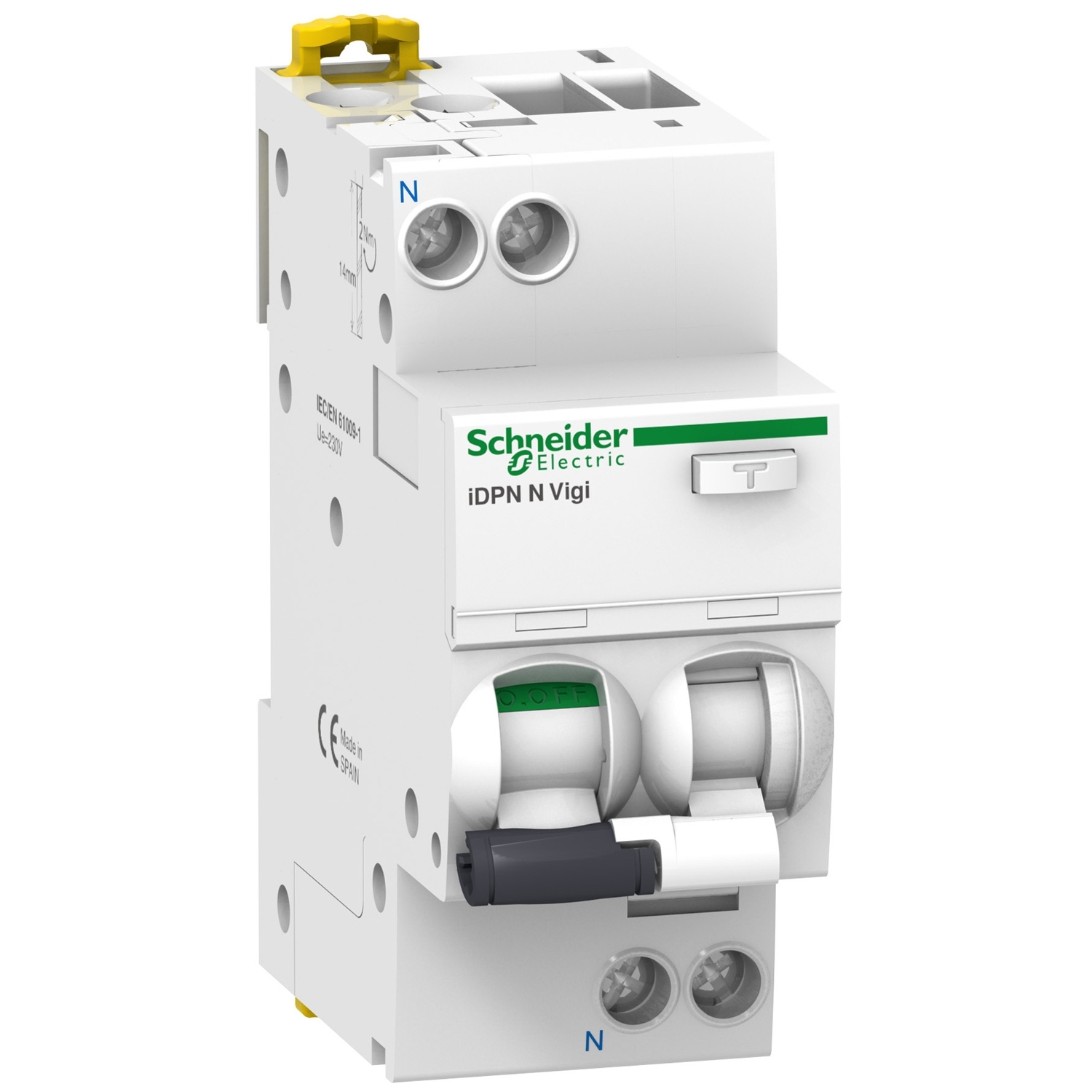

A9D32616 – Acti9 iDPN N Vigi – RCBO – 1P+N – 16A – C Curve – 6000A – 30mA – type A | Schneider Electric
Order code
Select a variant in this series
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
List R1 210.63 Your price R823.23
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Acti9 iDPN N Vigi – RCBO – 1P+N – 16A – C Curve – 6000A – 30mA – type A — Schneider Electric order code A9D32616.
Download datasheet (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
A9D32616 — Acti9 iDPN N Vigi – RCBO – 1P+N – 16A – C Curve – 6000A – 30mA – type A by Schneider Electric. Listed under Earth Leakage & Residual Current Devices on the Schneider Electric catalogue at RMS-SE.Africa.
About A9D32616
This Acti9 iDPN Vigi is a modular residual current breaker with overcurrent protection (RCBO). It is a 1P+N circuit breaker with 1 protected pole, 16A In rated current and C tripping curve. The earth leakage protection class is A type with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous. The Icn rated short circuit breaking capacity is up to 6000A according EN/IEC 61009-2-1 standard. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. Its earth fault indicator on front face allows quick identification of the type of default. It can be fitted instead og a miniature circuit breaker for complete protection of one circuit. This product is compliant with EN/IEC 61009-2-1 standard. It has an electrical endurance going up to 20000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 220VAC to 240VAC. The Ui rated insulation voltage is 400VAC. The Uimp rated impulse withstand voltage is 4kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product color is white (RAL9003). The dimensions are (W) 36mm x (H) 85mm x (D) 73mm. The weight is 125g. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -25C to 60C. The storage temperature is from -40C to 85C.
A9D32616 key specifications
number of poles 1P+N; tripping curve C.
Ordering information for A9D32616
- Order code:
A9D32616 - Manufacturer: Schneider Electric
- Range: Acti 9 iDPN Vigi
- GTIN / EAN: 3606480472077
- ETIM class: EC000905
- Datasheet: manufacturer datasheet for A9D32616
Prices in ZAR excluding VAT; stock and lead time are confirmed on every written quotation from RMS Measurement & Control, Johannesburg.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Brand | Filter products by Schneider Electric |
|---|---|
| GTIN / EAN | Filter products by 3606480472077 |
| Range | Filter products by Acti 9 iDPN Vigi |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC000905 |
Electrical ratings
| Number of poles | Filter products by 1P+N |
|---|---|
| Tripping curve | Filter products by C |
Documents
| Datasheet | Download datasheet |
|---|
Other specifications
| SKU/Code/Partnumber | Filter products by A9D32616 |
|---|
