Schneider ElectricMiniature Circuit Breakers (MCB's)

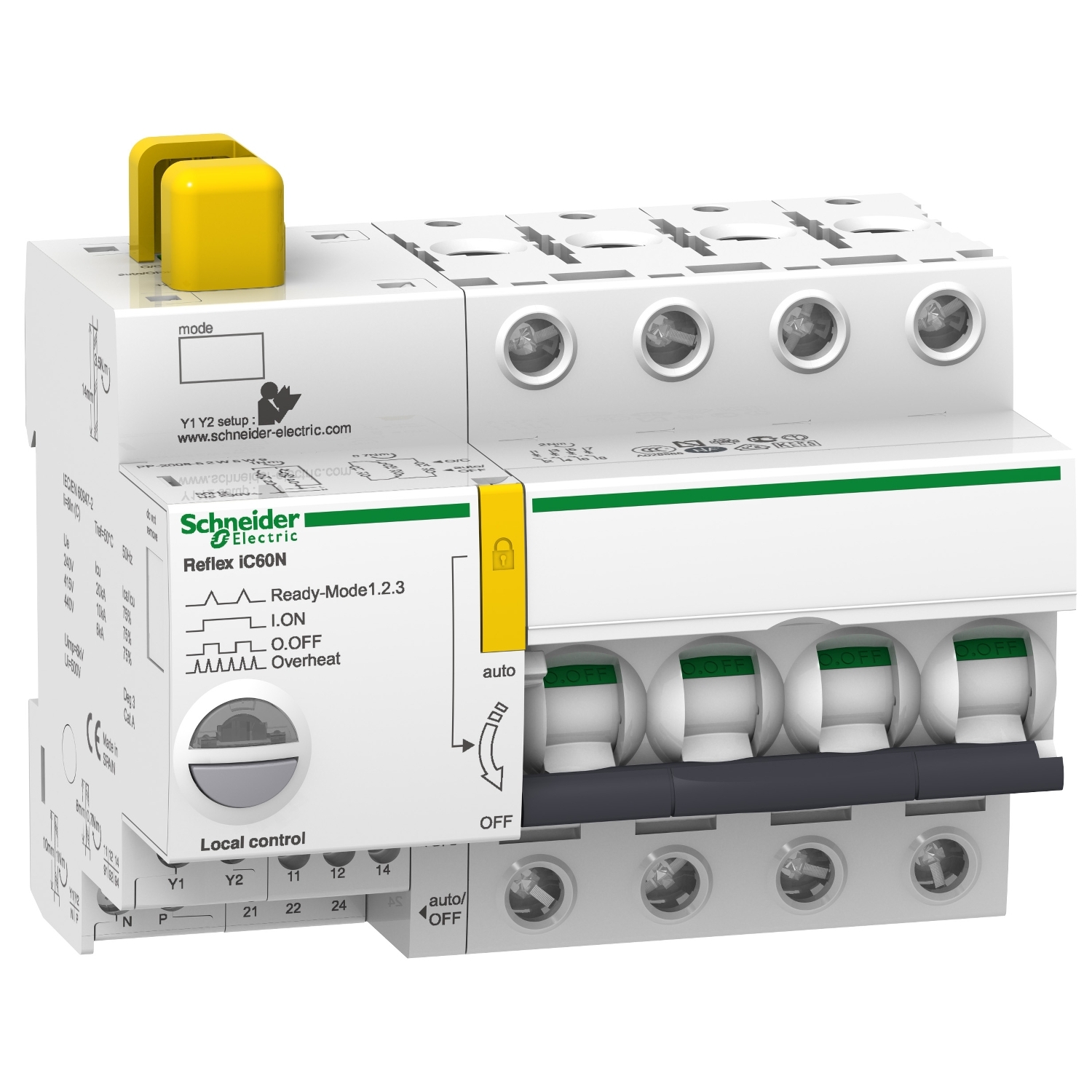

A9C62416 – Reflex iC60N Ti24 16 A 4P curve C integrated control MCB | Schneider Electric
Order code
Select a variant in this series
- C
- D
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
List R6 393.42 Your price R4 347.53
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Reflex iC60N Ti24 16 A 4P curve C integrated control MCB — Schneider Electric order code A9C62416.
Download datasheet (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
A9C62416 — Reflex iC60N Ti24 16 A 4P curve C integrated control MCB by Schneider Electric. Listed under Miniature Circuit Breakers (MCBs) on the Schneider Electric catalogue at RMS-SE.Africa.
About A9C62416
This Acti9 Reflex iC60N is a low voltage integrated control circuit breaker. It is a 4P circuit breaker with protected poles, 16 A rated current and C tripping curve. As circuit breaker, its breaking capacity, according to IEC/EN 60947-2, is 20kA at 220VAC to 240VAC, and 10kA at 380VAC to 415VAC. As a circuit breaker, it protects circuits against short circuit and overload currents, disconnection in the industrial sector. It can control a device remotely by latched and/or impulse-type order according to the 2 operating modes to be chosen by the user. Resetting after a fault is performed manually by the resetting handle. The Ti24 interface allows direct interfacing of the Reflex iC60 with a PLC. It allows to execute remote control, to indicate the state of the control circuit and circuit breaker state information, to connect it to the Acti9 Smartlink thanks to the prefabricated cables. Electrical endurance goes up to 50000 cycles. Mechanical endurance to 50000 cycles. The Ui rated insulation voltage is 500VAC. It can be mounted on DIN rail for modular installation. Its width is 13 modules of 9mm. The product color is white (RAL9003). The dimensions are (W) 117 mm x (H) 84 mm x (D) 77 mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. It becomes IP40 once in modular enclosure with insulation class II.
A9C62416 key specifications
number of poles 4P; tripping curve C.
Ordering information for A9C62416
- Order code:
A9C62416 - Manufacturer: Schneider Electric
- Range: Acti 9 Reflex iC60
- GTIN / EAN: 3606480455698
- ETIM class: EC002694
- Datasheet: manufacturer datasheet for A9C62416
Prices in ZAR excluding VAT; stock and lead time are confirmed on every written quotation from RMS Measurement & Control, Johannesburg.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Brand | Filter products by Schneider Electric |
|---|---|
| GTIN / EAN | Filter products by 3606480455698 |
| Range | Filter products by Acti 9 Reflex iC60 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC002694 |
Electrical ratings
| Number of poles | Filter products by 4P |
|---|---|
| Tripping curve | Filter products by C |
Documents
| Datasheet | Download datasheet |
|---|
Other specifications
| SKU/Code/Partnumber | Filter products by A9C62416 |
|---|
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
