Schneider ElectricMiniature Circuit Breakers (MCB's)
A9A26947 – Shunt trip release with OC contact, Acti9, iMX+OF, voltage release, 48 V AC | Schneider Electric
Order code
List R1 634.04 Your price R1 111.15
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Shunt trip release with OC contact, Acti9, iMX+OF, voltage release, 48 V AC — Schneider Electric order code A9A26947.
Download datasheet (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
A9A26947 — Shunt trip release with OC contact, Acti9, iMX+OF, voltage release, 48 V AC by Schneider Electric. Listed under Miniature Circuit Breakers (MCBs) on the Schneider Electric catalogue at RMS-SE.Africa.
About A9A26947

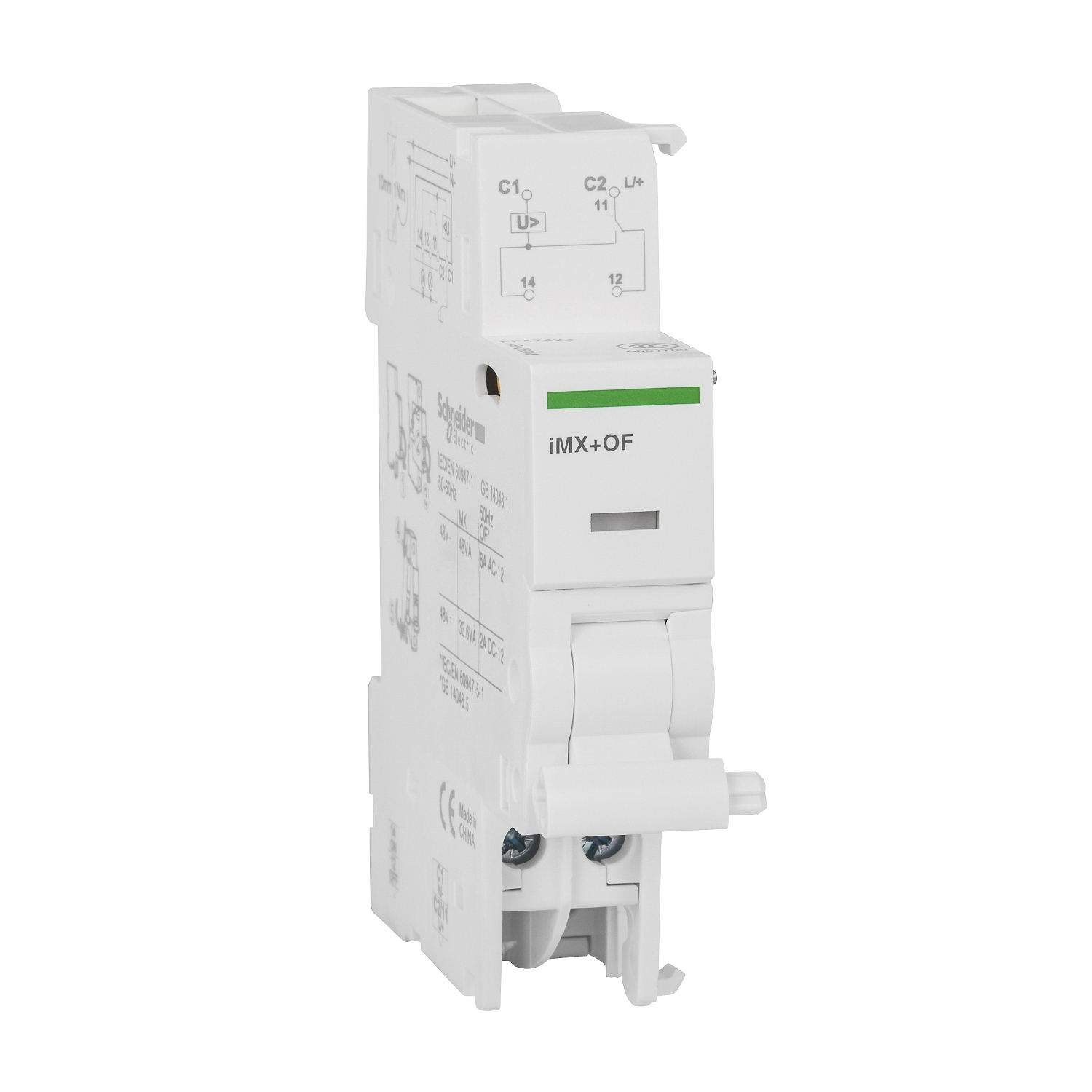

This Acti9 iMX+OF electrical tripping auxiliary for is a shunt trip release device with open/close auxiliary contact. It is dedicated to Acti9 iC60, iID, iDPN Vigi, iSW-NA. This device includes an open/close contact OF to indicated the position of the associated device. The width in 9mm pitches is 2. The Uc control circuit voltage is 48VAC or 48VDC. It can be mounted on a DIN rail for modular installation. The product color is white (RAL9003). The operating temperature is -25C to + 50C. The storage temperature is -40C to + 85C. This product complies with IEC/EN 60947-5-1 standards.
Ordering information for A9A26947
- Order code:
A9A26947 - Manufacturer: Schneider Electric
- Range: Acti 9 iC60
- GTIN / EAN: 3606480087967
- ETIM class: EC001286
- Datasheet: manufacturer datasheet for A9A26947
Prices in ZAR excluding VAT; stock and lead time are confirmed on every written quotation from RMS Measurement & Control, Johannesburg.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Brand | Filter products by Schneider Electric |
|---|---|
| GTIN / EAN | Filter products by 3606480087967 |
| Range | Filter products by Acti 9 iC60 |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC001286 |
Documents
| Datasheet | Download datasheet |
|---|
Other specifications
| SKU/Code/Partnumber | Filter products by A9A26947 |
|---|
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
