Schneider ElectricPower Supplies & Transformers
A9A15222 – Modular safety transfomer iTR – 230 V 50..60 Hz – output 12..24 V – 63 VA | Schneider Electric
Order code
List R952.76 Your price R647.88
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Modular safety transfomer iTR – 230 V 50..60 Hz – output 12..24 V – 63 VA — Schneider Electric order code A9A15222.
Download datasheet (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
A9A15222 — Modular safety transfomer iTR – 230 V 50..60 Hz – output 12..24 V – 63 VA by Schneider Electric. Listed under Power Supplies & Transformers on the Schneider Electric catalogue at RMS-SE.Africa.
About A9A15222
This Acti9 iTR 63VA Safety transformer allows to obtain a very low voltage 12VAC or 24VAC from a network 230VAC. The transformer is safe, primary and secondary circuits are perfectly insulated by each other. The power supply is 63VA. The operating frequency is 50/60Hz. The primary voltage is 230VAC +/-10%. The secondary voltage output is from 12VAC to 24VAC. It is resistant to short-circuit currents thanks to the built-in-device. For 12VAC rated secondary voltage the Off load voltage is 14VAC. For 24VAC rated secondary voltage the Off load voltage is 28VAC. It is a Class II device with terminal shield (optional). The safety transformer should be mounted in vertical position only. The width in 9mm pitches is 10. The weight is 1309g. The degree of protection under IEC 60529 standard is IP20 with terminal shield. The dimensions are (W) 90mm x (H) 89mm x (D) 60mm. The width in modules of 18mm is 5. The operating temperature is -20C to + 55C. The storage temperature is -25C to + 80C. This product complies with IEC/EN 61558-2-6 standard.
A9A15222 key specifications
rated frequency 60 Hz.
Ordering information for A9A15222
- Order code:
A9A15222 - Manufacturer: Schneider Electric
- Range: Acti 9 iTR
- GTIN / EAN: 3606480097836
- ETIM class: EC001547
- Datasheet: manufacturer datasheet for A9A15222
Prices in ZAR excluding VAT; stock and lead time are confirmed on every written quotation from RMS Measurement & Control, Johannesburg.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Brand | Filter products by Schneider Electric |
|---|---|
| GTIN / EAN | Filter products by 3606480097836 |
| Range | Filter products by Acti 9 iTR |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC001547 |
Electrical ratings
| Rated Frequency | Filter products by 60 Hz |
|---|
Documents
| Datasheet | Download datasheet |
|---|
Other specifications
| SKU/Code/Partnumber | Filter products by A9A15222 |
|---|
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
Similar items
8 items
Similar items
8 items

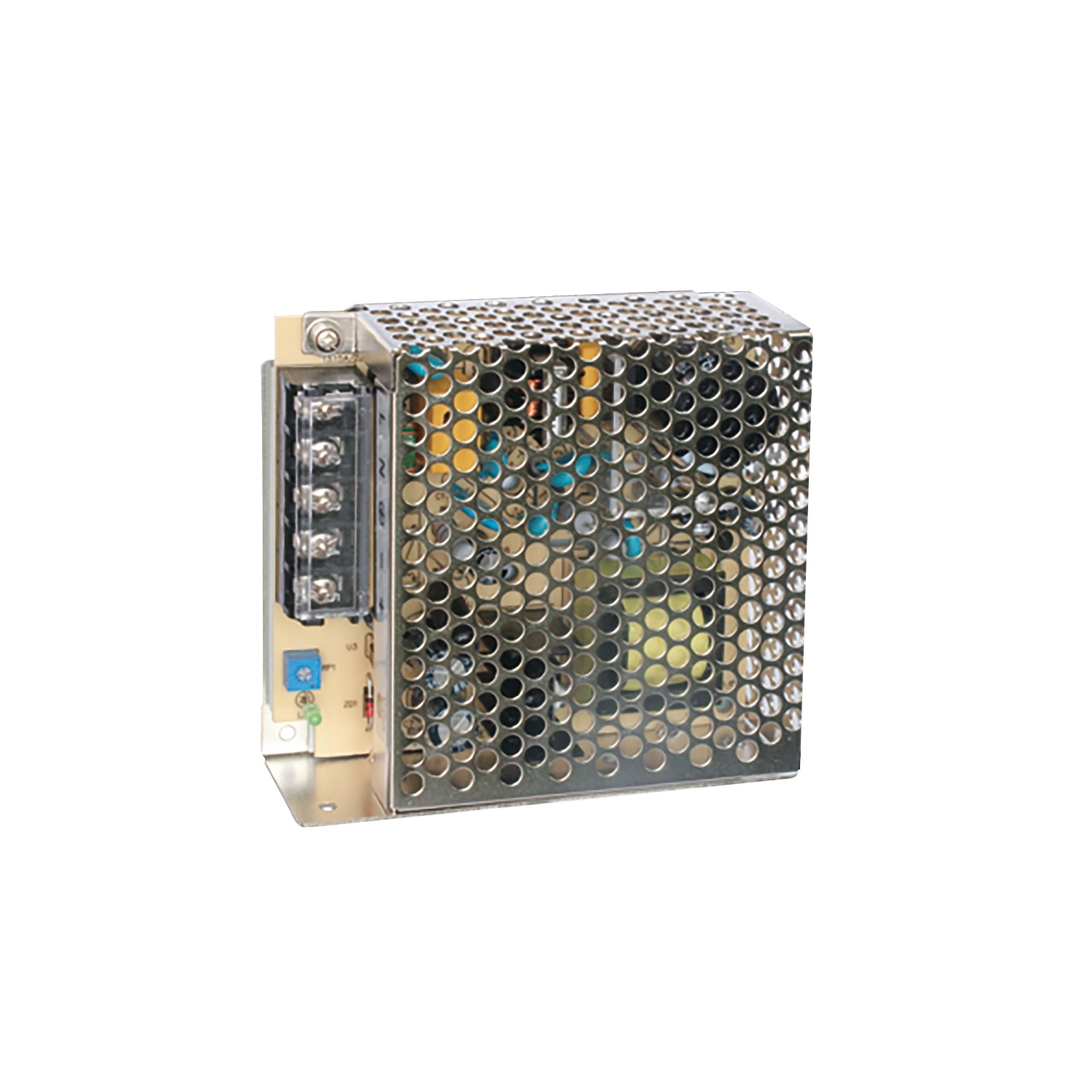

ABL2REM24020HSwitching mode Power supply in 100-240 VAC 1,3-0,8 A out 24 VDC 2,2A 50WList R871.81 Your price R592.83View product

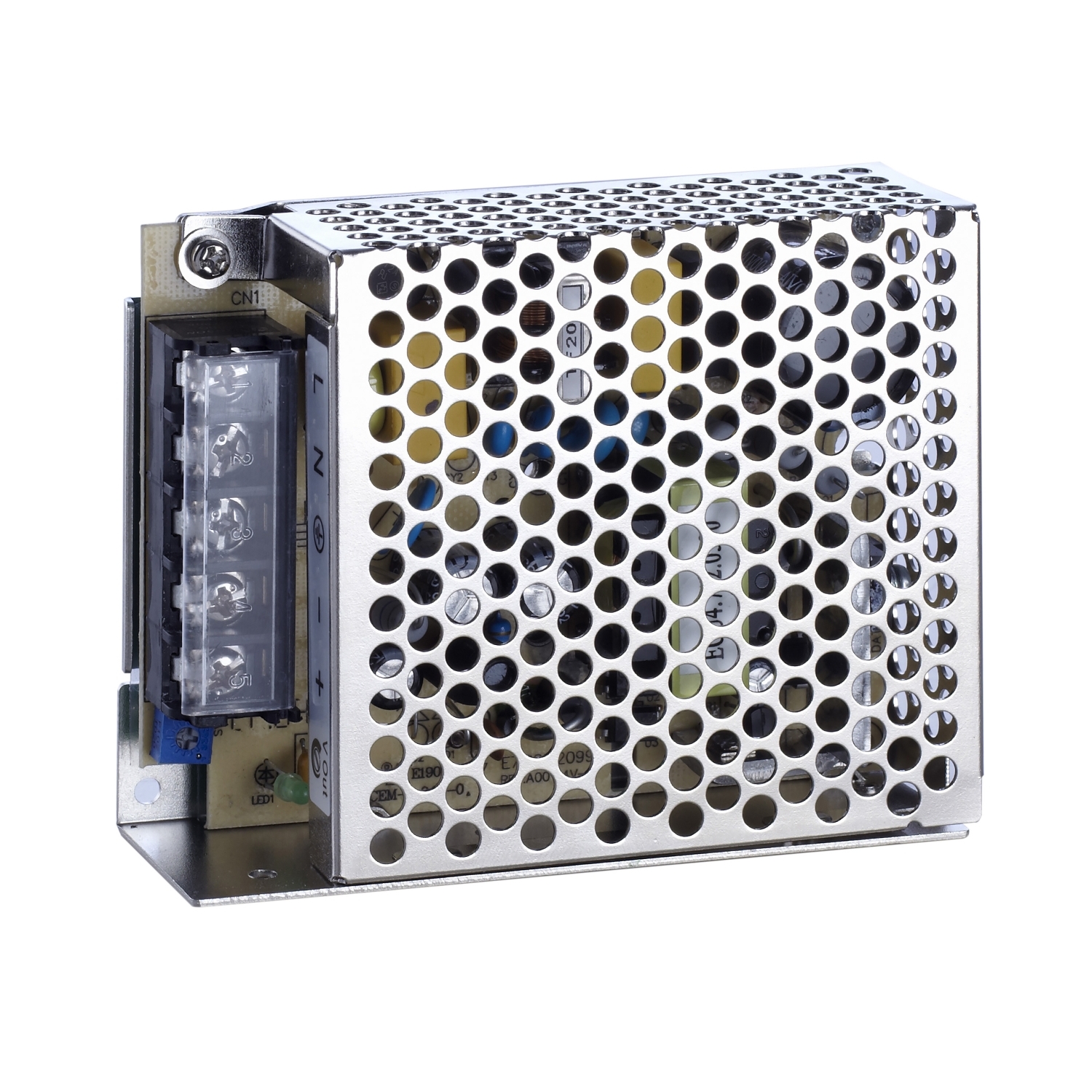

ABL2REM24015HSwitching mode power supply in 100-240 VAC, out 24VDC, 35 WList R786.16 Your price R534.59View product

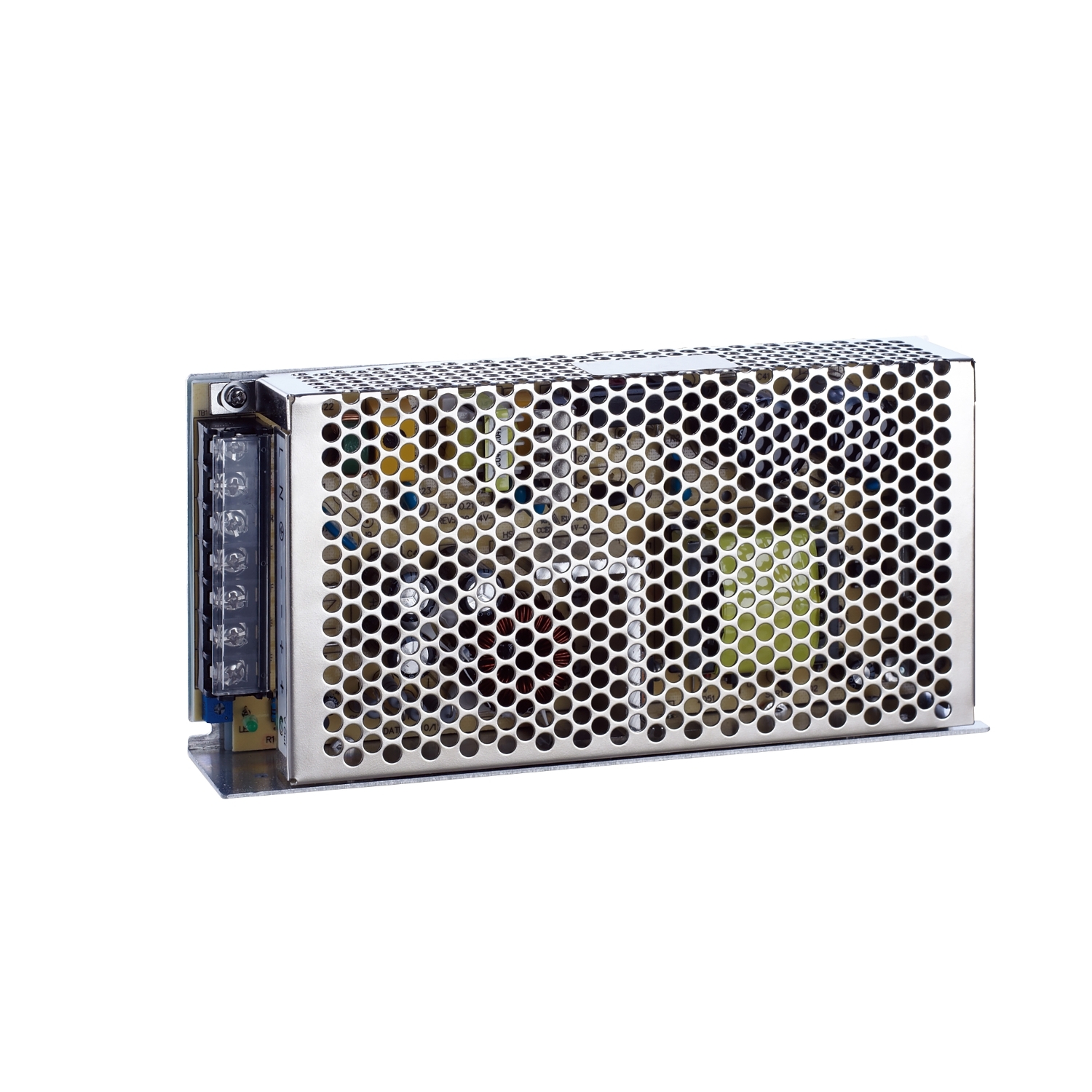

ABL2REM24065HSwitching mode power supply in 100…120/200,,,240 VAC, out 24VDC,150 W 6,5AList R1 258.18 Your price R855.56View product

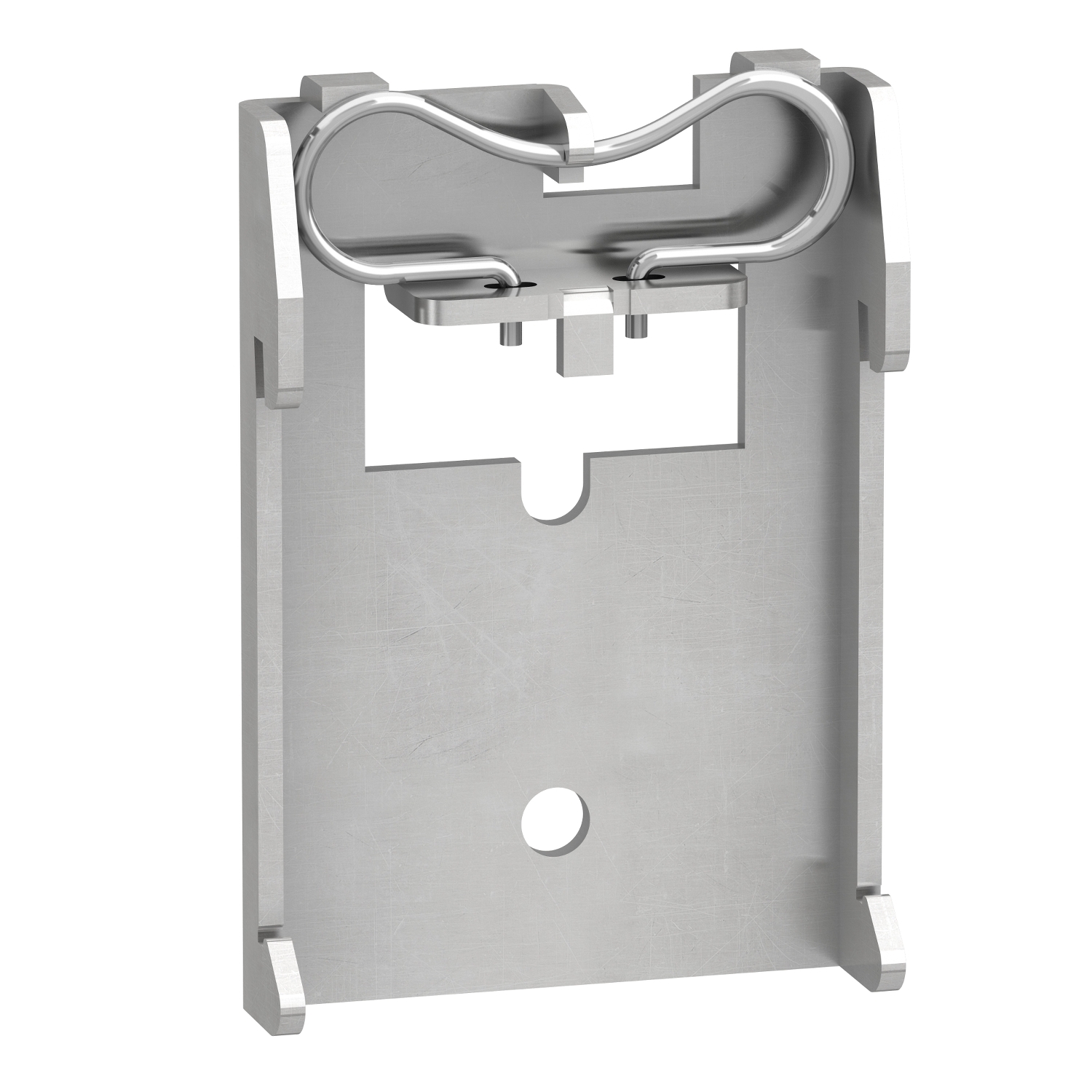

ABL2A02Mounting plate for 35 mm rail – for regulated switch mode power supplyList R109.19 Your price R74.25View product
ABT7ESM004BVoltage transformer – 230 V – 1 x 24 V – 40 VAList R1 800.61 Your price R1 224.41View product

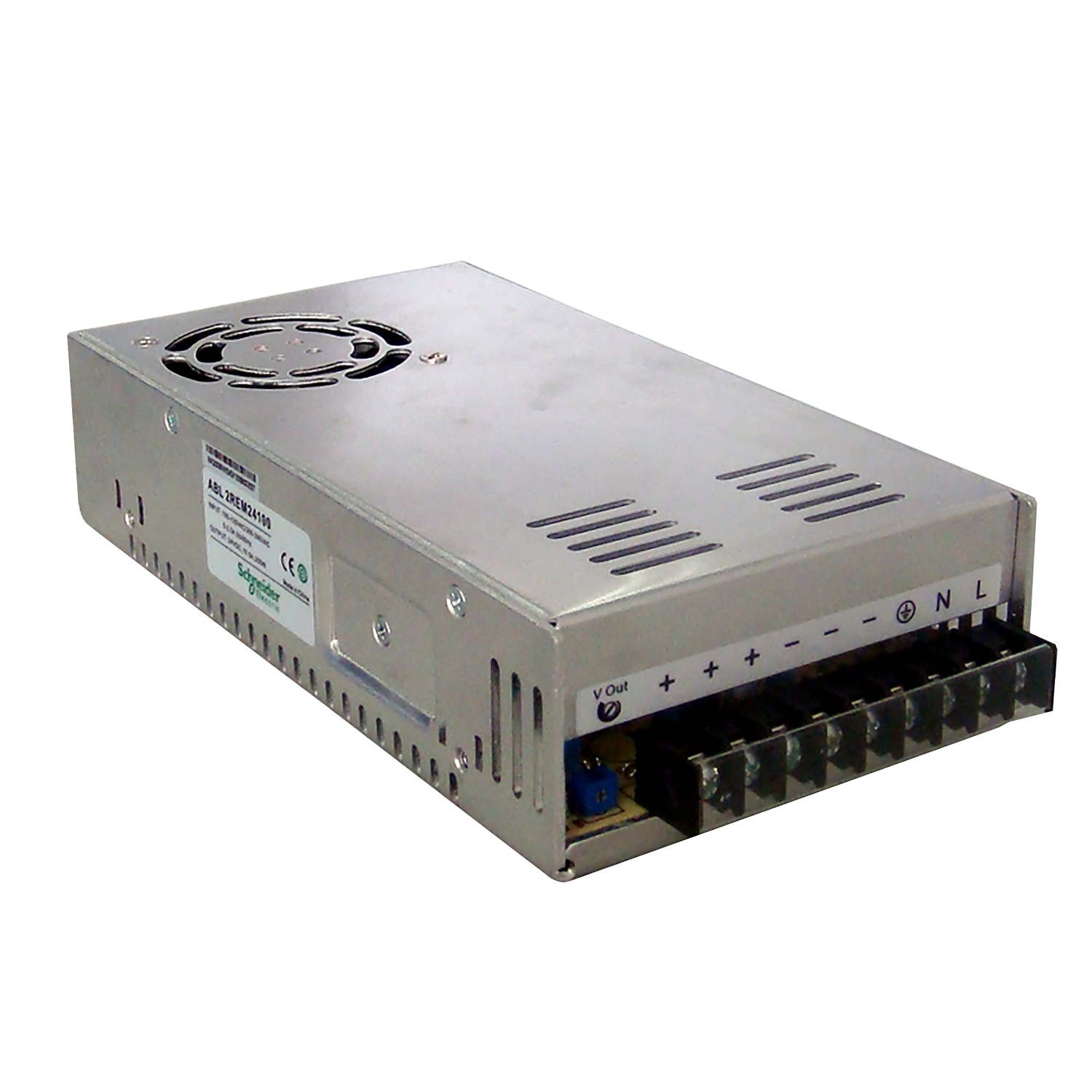

ABL2REM24100HSwitching mode power supply in 100…120/200,,,240 VAC, out 24VDC,250 W 10,5AList R1 958.65 Your price R1 331.88View product

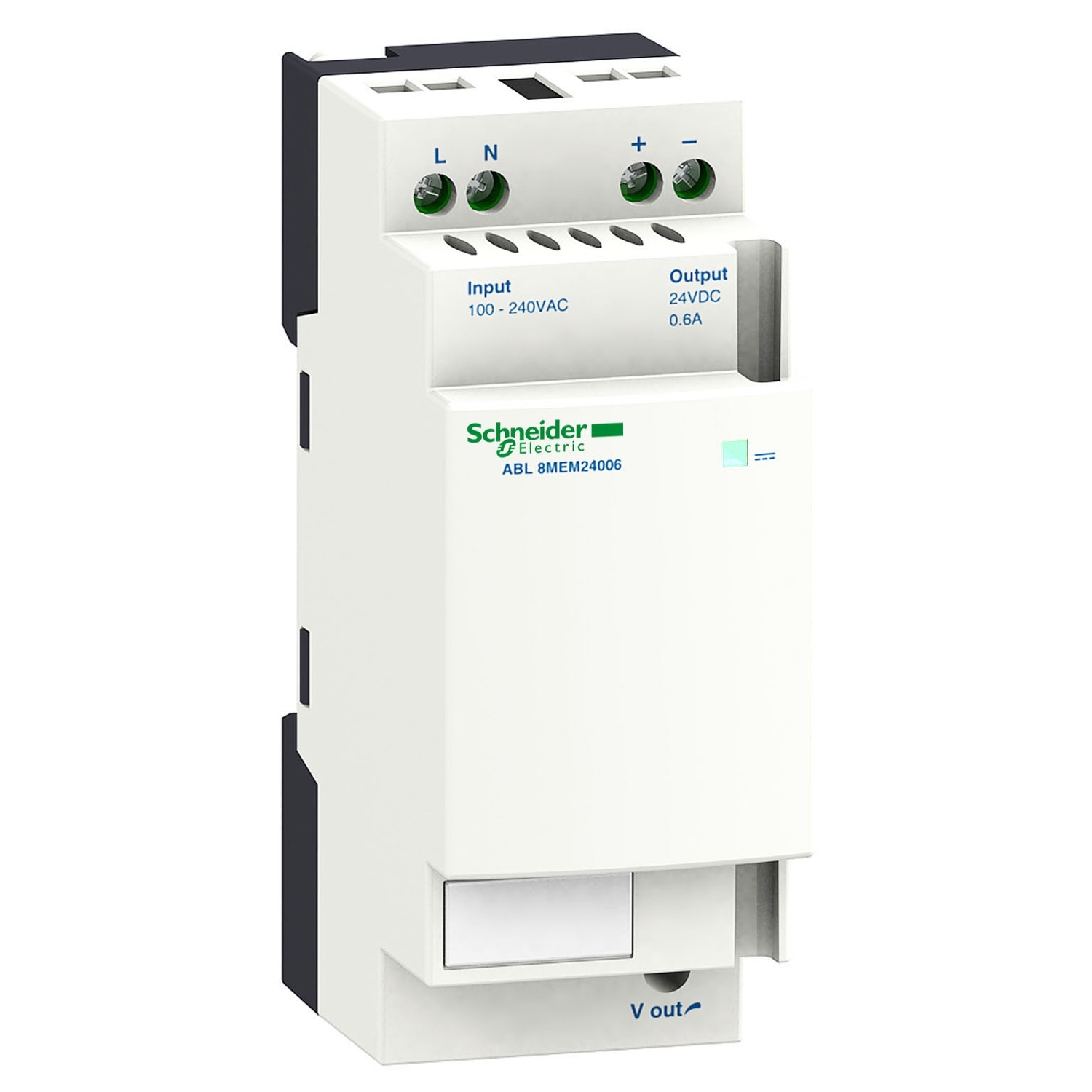

ABL8MEM24003Regulated Switch Power Supply, 1 or 2-phase, 100..240V AC, 24V, 0.3 AList R1 968.30 Your price R1 338.44View product- ABL8MEM24006Regulated Switch Power Supply, 1 or 2-phase, 100..240V AC, 24V, 0.6 AList R2 033.04 Your price R1 382.47View product
More in Power Supplies & Transformers
8 items
More in Power Supplies & Transformers
8 items
ABT7PDU100BVoltage transformer – 230..400 V – 2 x 24 V – 1 KVAList R9 518.08 Your price R6 472.29View product
ABT7PDU063GVoltage transformer – 230..400 V – 2 x 115 V – 630 VAList R8 387.23 Your price R5 703.32View product
ABT7PDU040GVoltage transformer – 230..400 V – 2 x 115 V – 400 VAList R9 111.22 Your price R6 195.63View product
ABT7PDU040BVoltage transformer – 230..400 V – 2 x 24 V – 400 VAList R8 603.92 Your price R5 850.67View product
ABT7PDU025GVoltage transformer – 230..400 V – 2 x 115 V – 250 VAList R5 062.92 Your price R3 442.79View product
ABT7PDU010GVoltage transformer – 230..400 V – 2 x 115 V – 100 VAList R4 013.05 Your price R2 728.87View product
ABT7PDU006BVoltage transformer – 230..400 V – 2 x 24 V – 63 VAList R3 165.48 Your price R2 152.53View product
ABT7ESM025BVoltage transformer – 230 V – 1 x 24 V – 250 VAList R3 339.46 Your price R2 270.83View product
Alternatives on our other RMS storefronts
RMS supplies each manufacturer range from its own storefront. These links open a different RMS site in a new tab.
Quick answers
What is A9A15222?
A9A15222 is the order code for Modular safety transfomer iTR – 230 V 50..60 Hz – output 12..24 V – 63 VA. It belongs to our Power Supplies & Transformers range. RMS-SE.Africa supplies it as genuine Schneider Electric product, sourced through the manufacturer's distribution channel.
Is it available?
It is listed as in stock. Availability is re-confirmed on every order before any payment is taken, so what you order is what actually ships.
How do I get a formal quotation?
Use "Add to quote" and submit the quote basket. The RMS team prices every line, confirms stock, and emails you a formal quotation with written lead times — and you can accept it online to turn it into an order.
Do I pay when I order?
No. Checkout submits the order without payment; we confirm stock for every line first, then email you a secure payment link for the order.
