81185 – PratiKa industrial socket – 63 A – 3P + E – 480…500 V AC – IP67 | Schneider Electric
Order code
Select a variant in this series
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
List R1 474.58 Your price R1 002.71
Excluding VAT · per unit · volume pricing available on request
End of commercialisation announced (2023/06/30). Affected references in this range are replaced by Kaedra (current references). See Kaedra products · Schneider Electric substitution guide (opens in a new tab) Ask us to confirm remaining stock or to quote the replacement.
Listed in stock — availability is re-confirmed on every order
PratiKa industrial socket – 63 A – 3P + E – 480…500 V AC – IP67 — Schneider Electric order code 81185.
Download datasheet (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
81185 — PratiKa industrial socket – 63 A – 3P + E – 480…500 V AC – IP67 by Schneider Electric. Listed under Distribution Boards & Enclosures on the Schneider Electric catalogue at RMS-SE.Africa.
About 81185

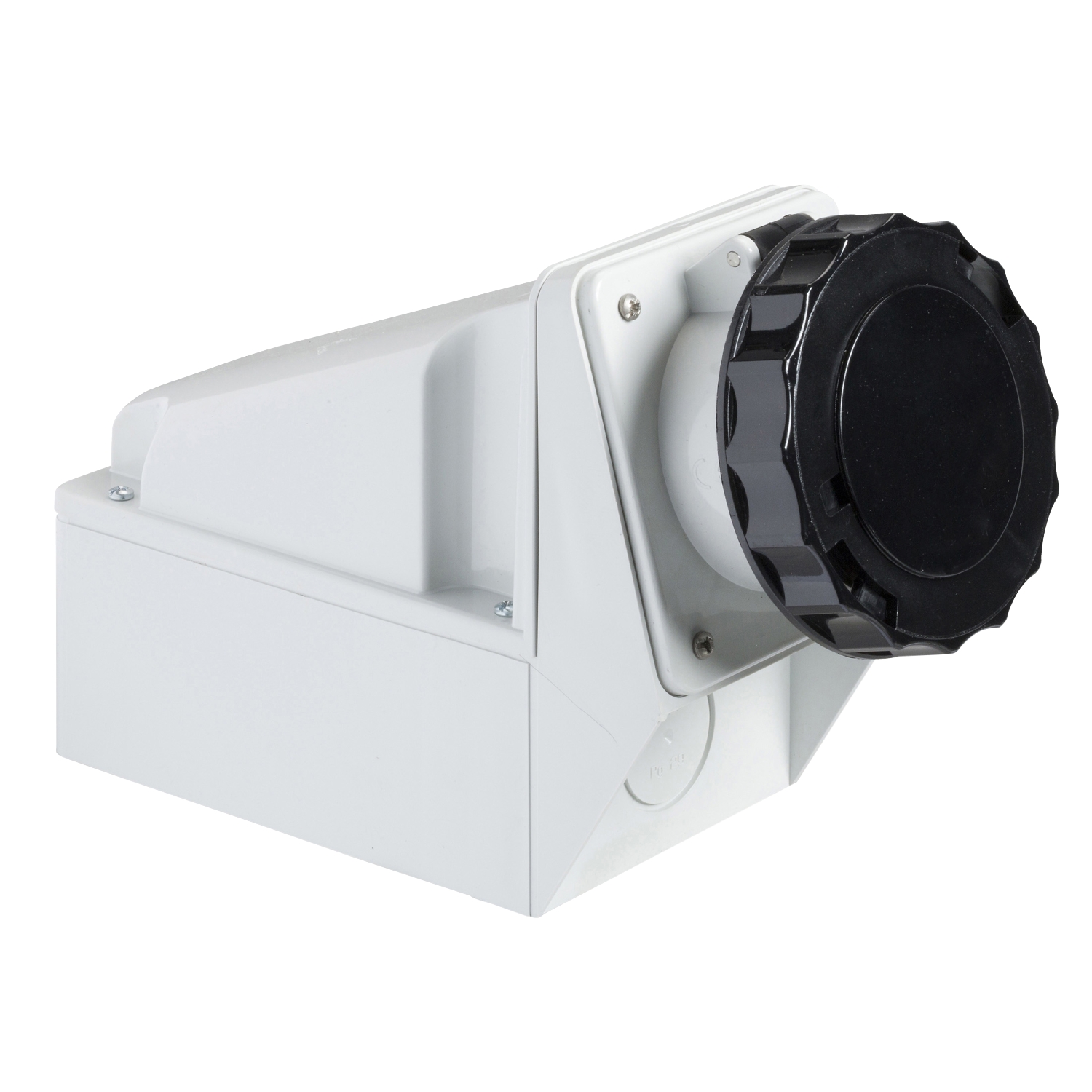

This Pratika industrial socket with completely loosened captive screws connection is wall mounted. It has 3P+E poles, rated current is 63A and the operating voltage is 500VAC. The dimensions of the base plate are (W) 104mm x (H) 255mm. The degree of protection is IP67 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The size of the cable entries in 63A is 17mm to 31mm for 6mm² to 25mm² cables. The color of the socket is light grey (RAL 7035) with black easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 7h.
81185 key specifications
number of poles 3P; degree of protection IP67.
Ordering information for 81185
- Order code:
81185 - Manufacturer: Schneider Electric
- Range: Kaedra Box
- GTIN / EAN: 3303430811855
- ETIM class: EC001321
- Datasheet: manufacturer datasheet for 81185
- Lifecycle: End of commercialisation announced (2023/06/30)
Prices in ZAR excluding VAT; stock and lead time are confirmed on every written quotation from RMS Measurement & Control, Johannesburg.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
Electrical ratings
| Number of poles | Filter products by 3P |
|---|
Environment & protection
| Degree of protection (IP) | Filter products by IP67 |
|---|
Documents
| Datasheet | Download datasheet |
|---|
Other specifications
| SKU/Code/Partnumber | Filter products by 81185 |
|---|
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
More in the Kaedra Box range
8 itemsSame series, same mounting and the same documentation set.
More in the Kaedra Box range
8 items
83174PratiKa industrial socket – 32 A – 3P + N + E – 480…500 V AC – IP67List R1 016.93 Your price R691.51View product- 83173PratiKa industrial socket – 32 A – 3P + E – 480…500 V AC – IP67List R745.58 Your price R506.99View product
83171PratiKa industrial socket – 32 A – 3P + N + E – 380…415 V AC – IP67List R784.14 Your price R533.22View product
83170PratiKa industrial socket – 32 A – 3P + E – 380…415 V AC – IP67List R729.03 Your price R495.74View product- 83169PratiKa industrial socket – 32 A – 2P + E – 380…415 V AC – IP67List R713.74 Your price R485.34View product
83168PratiKa industrial socket – 32 A – 3P + N + E – 200…250 V AC – IP67List R779.24 Your price R529.88View product- 83167PratiKa industrial socket – 32 A – 3P + E – 200…250 V AC – IP67List R936.03 Your price R636.50View product
83166PratiKa industrial socket – 32 A – 2P + E – 200…250 V AC – IP67List R906.17 Your price R616.20View product
Similar items
8 items
Similar items
8 items
83097Unika interlocked socket – 32 A – 3P + N + E – 380…415 V AC – IP65 – wallList R1 473.13 Your price R1 001.73View product
81485PratiKa wander socket – straight – 63 A – 3P + E – 480…500 V AC – IP67List R1 504.44 Your price R1 023.02View product
83045Unika interlocked socket – 32 A – 2P + E – 380…415 V AC – IP44 – wallList R1 434.72 Your price R975.61View product
83085Unika interlocked socket – 16 A – 3P + E – 380…415 V AC – IP65 – wallList R1 516.35 Your price R1 031.12View product
83042Unika interlocked socket – 32 A – 2P + E – 200…250 V AC – IP44 – wallList R1 418.78 Your price R964.77View product- 83036Unika interlocked socket – 16 A – 3P + N + E – 380…415 V AC – IP44 – wallList R1 389.89 Your price R945.13View product
83092Unika interlocked socket – 32 A – 2P + E – 200…250 V AC – IP65 – wallList R1 386.47 Your price R942.80View product- 83046Unika interlocked socket – 32 A – 3P + E – 380…415 V AC – IP44 – wallList R1 571.90 Your price R1 068.89View product
More in Distribution Boards & Enclosures
8 items
More in Distribution Boards & Enclosures
8 items
83162PratiKa industrial socket – 16 A – 3P + N + E – 480…500 V AC – IP67List R866.74 Your price R589.38View product- 83161PratiKa industrial socket – 16 A – 3P + E – 480…500 V AC – IP67List R542.51 Your price R368.91View product
83159PratiKa industrial socket – 16 A – 3P + N + E – 380…415 V AC – IP67List R669.19 Your price R455.05View product- 83158PratiKa industrial socket – 16 A – 3P + E – 380…415 V AC – IP67List R537.11 Your price R365.23View product
- 83157PratiKa industrial socket – 16 A – 2P + E – 380…415 V AC – IP67List R530.70 Your price R360.88View product
- 83156PratiKa industrial socket – 16 A – 3P + N + E – 200…250 V AC – IP67List R676.07 Your price R459.73View product
- 83155PratiKa industrial socket – 16 A – 3P + E – 200…250 V AC – IP67List R689.47 Your price R468.84View product
83154PratiKa industrial socket – 16 A – 2P + E – 200…250 V AC – IP67List R514.85 Your price R350.10View product
Alternatives on our other RMS storefronts
RMS supplies each manufacturer range from its own storefront. These links open a different RMS site in a new tab.
Quick answers
What is 81185?
81185 is the order code for PratiKa industrial socket – 63 A – 3P + E – 480…500 V AC – IP67. It belongs to our Distribution Boards & Enclosures range. RMS-SE.Africa supplies it as genuine Schneider Electric product, sourced through the manufacturer's distribution channel.
Is it available?
It is listed as in stock. Availability is re-confirmed on every order before any payment is taken, so what you order is what actually ships.
How do I get a formal quotation?
Use "Add to quote" and submit the quote basket. The RMS team prices every line, confirms stock, and emails you a formal quotation with written lead times — and you can accept it online to turn it into an order.
Do I pay when I order?
No. Checkout submits the order without payment; we confirm stock for every line first, then email you a secure payment link for the order.
