Schneider ElectricLoad Break / Changeover Switches

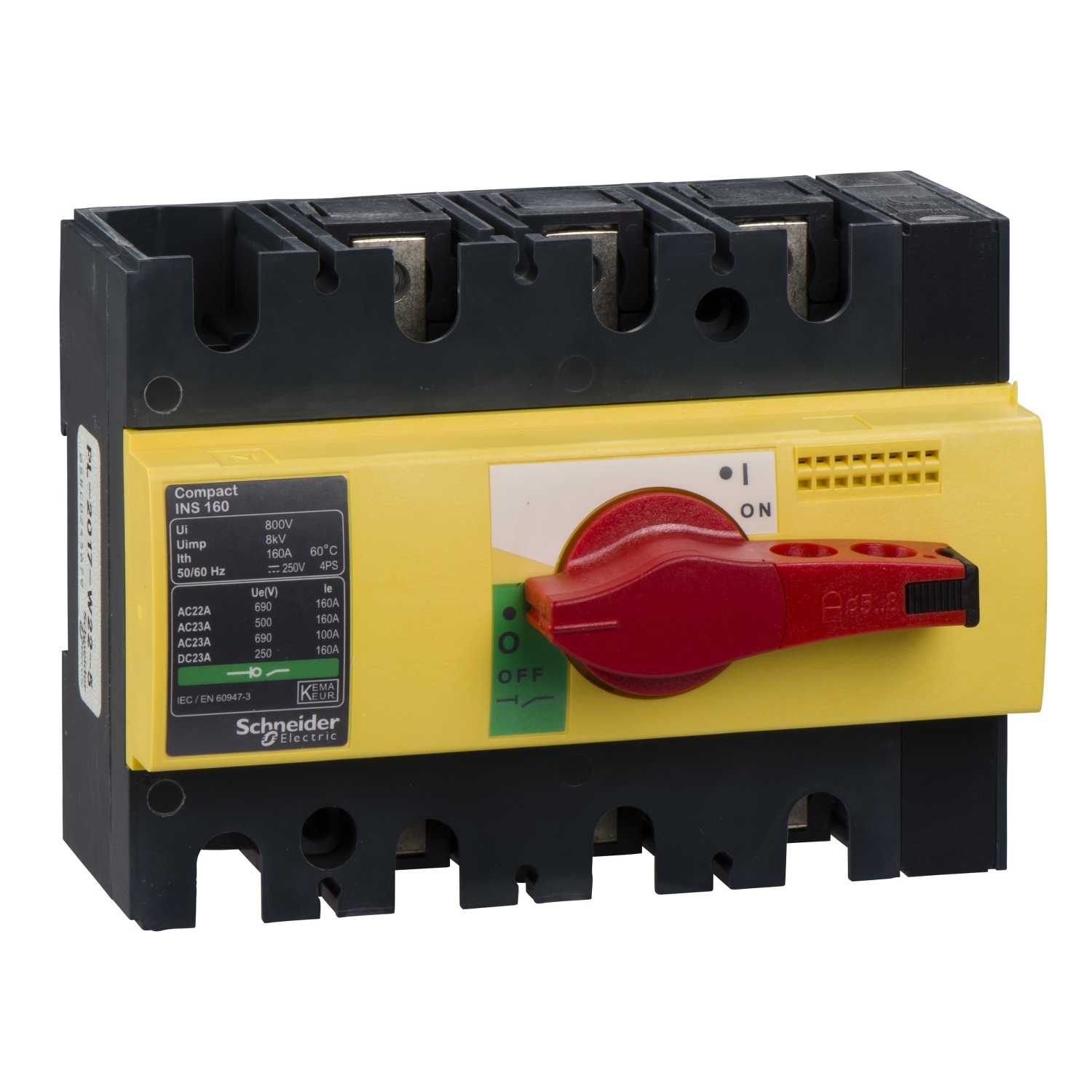

28928 – Switch disconnector, Compact INS160 , 160 A, with red rotary handle and yellow front, 3 poles | Schneider Electric
Order code
Select a variant in this series
- 3P
- 4P
Every option is a reference in this catalogue. A faded option changes more than one value — its nearest reference is linked.
List R3 236.99 Your price R2 201.15
Excluding VAT · per unit · volume pricing available on request
Listed in stock — availability is re-confirmed on every order
Switch disconnector, Compact INS160 , 160 A, with red rotary handle and yellow front, 3 poles — Schneider Electric order code 28928.
Download datasheet (opens in a new tab)
Ordering & delivery
- Contact us for bulk pricing, lead times and ordering codes.
- Minimum order: 1 unit.
- Manufacturer's standard warranty applies.
- Collection from our branch, delivery in the Johannesburg area, and export across Africa on request.
- Some items are held off-site rather than in our own warehouse — availability is confirmed on every order.
- Authorised Schneider Electric distributor
- Genuine product with manufacturer warranty
- Formal quotations with written lead times
Overview
28928 — Switch disconnector, Compact INS160 , 160 A, with red rotary handle and yellow front, 3 poles by Schneider Electric. Listed under Load Break & Changeover Switches on the Schneider Electric catalogue at RMS-SE.Africa.
About 28928
This Compact INS160 is a 3 poles non-automatic switch-disconnector with red rotary handle and yellow front. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 160A at 415VAC in categories AC22A and AC23A. The rated voltage is 690VAC 50/60Hz or 250VDC. It can be used as an emergency-off device. For easy identification, it uses special colours stipulated by the standards. The red rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS160 is a class II insulation level front-face device as per IEC 60664 standard.
28928 key specifications
number of poles 3P.
Ordering information for 28928
- Order code:
28928 - Manufacturer: Schneider Electric
- Range: Interpact INS/INV
- GTIN / EAN: 3303430289289
- ETIM class: EC000216
- Datasheet: manufacturer datasheet for 28928
Prices in ZAR excluding VAT; stock and lead time are confirmed on every written quotation from RMS Measurement & Control, Johannesburg.
Technical specifications
Data supplied by the manufacturer. Confirm against the official datasheet before ordering.
Identification & ordering
| Brand | Filter products by Schneider Electric |
|---|---|
| GTIN / EAN | Filter products by 3303430289289 |
| Range | Filter products by Interpact INS/INV |
| Lifecycle status | Filter products by Current |
| ETIM class | Filter products by EC000216 |
Electrical ratings
| Number of poles | Filter products by 3P |
|---|
Documents
| Datasheet | Download datasheet |
|---|
Other specifications
| SKU/Code/Partnumber | Filter products by 28928 |
|---|
Documents
Published by the manufacturer for this part. Each one opens in a new tab.
