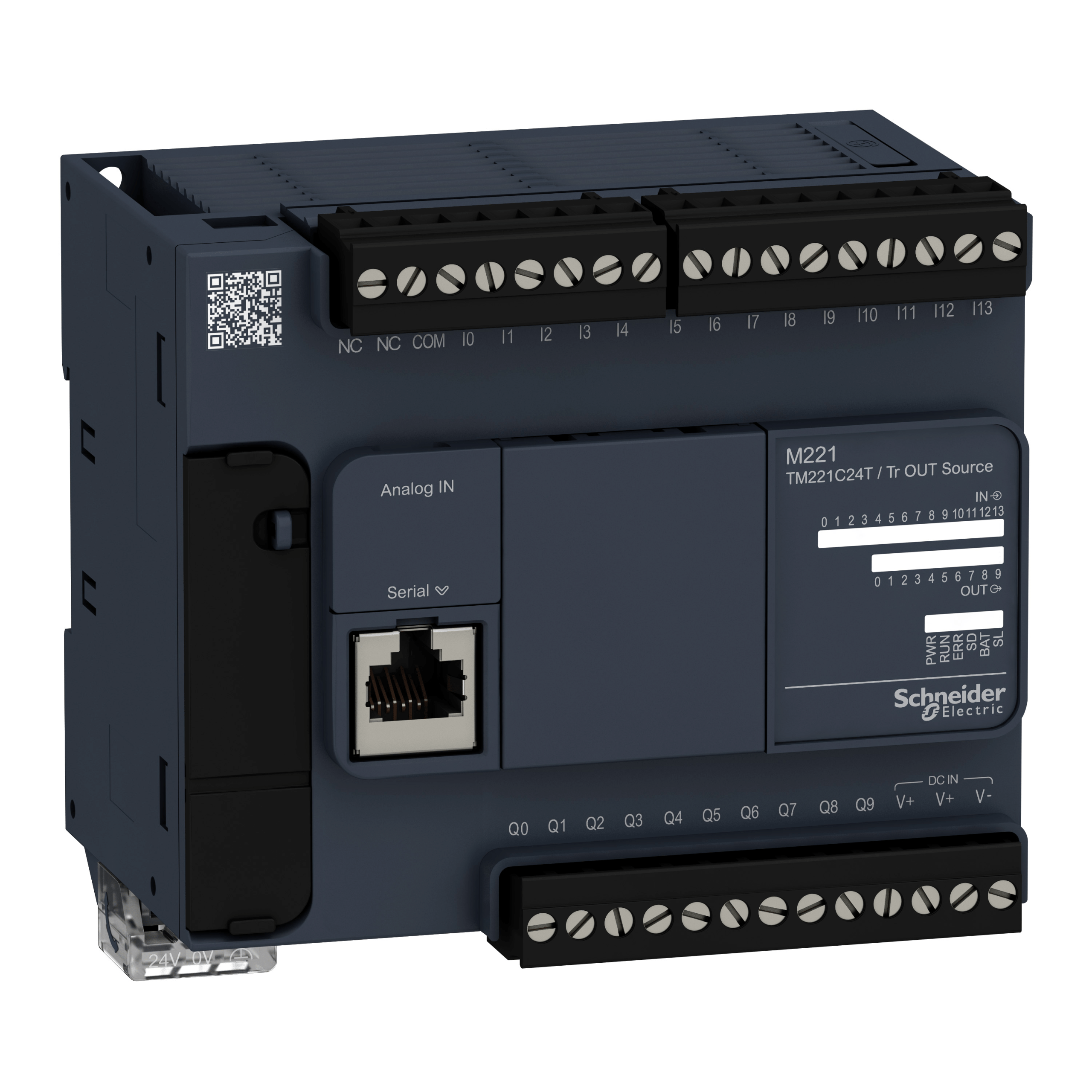

TM221C24T — Logic controller, Modicon M221, 24 Input/Output, transistor PNP by Schneider Electric.

This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This logic controller provides 14 discrete, 4 fast inputs, 10 transistor, 2 fast outputs with PNP transistor output with 10bit resolution. It is a Modicon logic controller with a rated supply/output voltage of 24V DC, an output current of 0.5A with sink or source input logic and positive output logic. This product requires minimal installation and offers tremendous versatility. Integrated connections are USB port with mini B USB 2.0 connector, non isolated serial link serial 1 with RJ45 connector and RS485 interface and non isolated serial link serial 2 with RJ45 connector and RS232/RS485 interface. It is a Modicon M221 controller with 256kB for user application and data RAM, internal variables RAM, 256kB built-in flash memory and a SD card memory capacity of 2GB. It is an IP20 rated product. Its dimensions are 110mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.395kg. This product is certified by CE, IACS E10, CSA, RCM, LR, ABS, DNV-GL, EAC and CULus. It meets EN/IEC 61010-2-201, EN/IEC 61131-2 and EN/IEC 60664-1 standards. It supports DIN rail mount. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks.

Key specifications: rated current 5 A; rated voltage 24 V; IP20; DIN rail mounting.

Ordering information

Order code: TM221C24T
Manufacturer: Schneider Electric
Range: Modicon M221
GTIN / EAN: 3606480648724
Supplied: each
Weight: 0.601 kg
ETIM class: EC000236
Datasheet: manufacturer datasheet for TM221C24T

TM221C24T – Logic controller, Modicon M221, 24 Input/Output, transistor PNP Schneider Electric
