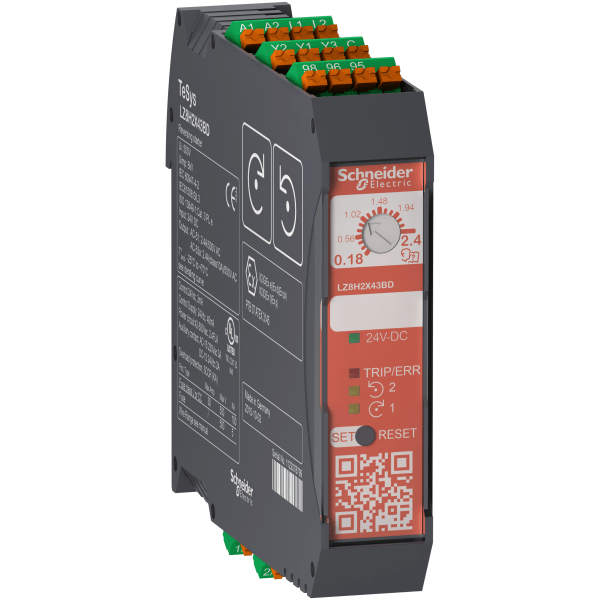

LZ8H2X43BD – Reversing Starter TeSys H Safe-Torque-Off 0,75kW-400V control 24VDC Spring Schneider Electric

LZ8H2X43BD – Reversing Starter TeSys H Safe-Torque-Off 0,75kW-400V control 24VDC Spring Schneider Electric TeSys H ultra compact reverse safety starter, 3 poles, 2.4A/500V AC-53, for control and protection of 3-phase motors up to 0.75kW@400V (1HP@480V). The hybrid technology used for power contacts procures ultra compactness (22.5mm width) as well as an extended electrical durability up to 30 million cycles AC-53. It provides control for 2 directions of rotation, an adjustable motor current 0.18-2.4A, class 10A thermal overload protection with auto/manual/remote reset, phase loss and phase unbalanced protection, stall and jam motor protection. To be supplied with 24V DC, it provides logic inputs for FW/RV motor direction and remote reset after thermal tripping, 1C/O contact relay for fault indication, LED status on front face for indication of tripping and motor running. With an integrated Safe Torq Off (STO) function with SIL3 level according IEC61508-1 and PLe level according ISO13849-1, it can be integrated to safety chain applications. DIN rail mounting, spring terminals for control and power, it can be used without derating for ambient temperatures from -25 to 70°C. Multi standards certified (IEC, UL, CCC), Green Premium compliant (RoHS/REACh). Reversing Starter TeSys H Safe-Torque-Off 0,75kW-400V control 24VDC Spring LZ8H2X43BD – TeSys H

LZ8H2X43BD – Reversing Starter TeSys H Safe-Torque-Off 0,75kW-400V control 24VDC Spring Schneider Electric is a Schneider Electric product designed for professional electrical, automation, and infrastructure applications.

This product forms part of the TeSys range and is suitable for installers, contractors, panel builders, maintenance teams, and buyers looking for reliable Schneider Electric components with proven performance and compatibility.

Technical Specifications

• Brand: Schneider Electric
• Series: TeSys
• Amperage: 4A
• Voltage: 400V
• Mount Type: DIN Rail

Key Features

• Part of the TeSys range
• Rated at 4A
• Suitable for 400V applications
• DIN Rail installation format

Applications

• Industrial automation
• Commercial electrical installations
• Control and protection systems
• Infrastructure and maintenance projects
